B-54
Follow these steps to install a PCI, EISA or graphics board into your
workstation:
1.
W
orking from the rear of the workstation, unscrew the four cap-
tive screws and pull the PCI/EISA Assembly straight out using
the handle. See Figure B–34.

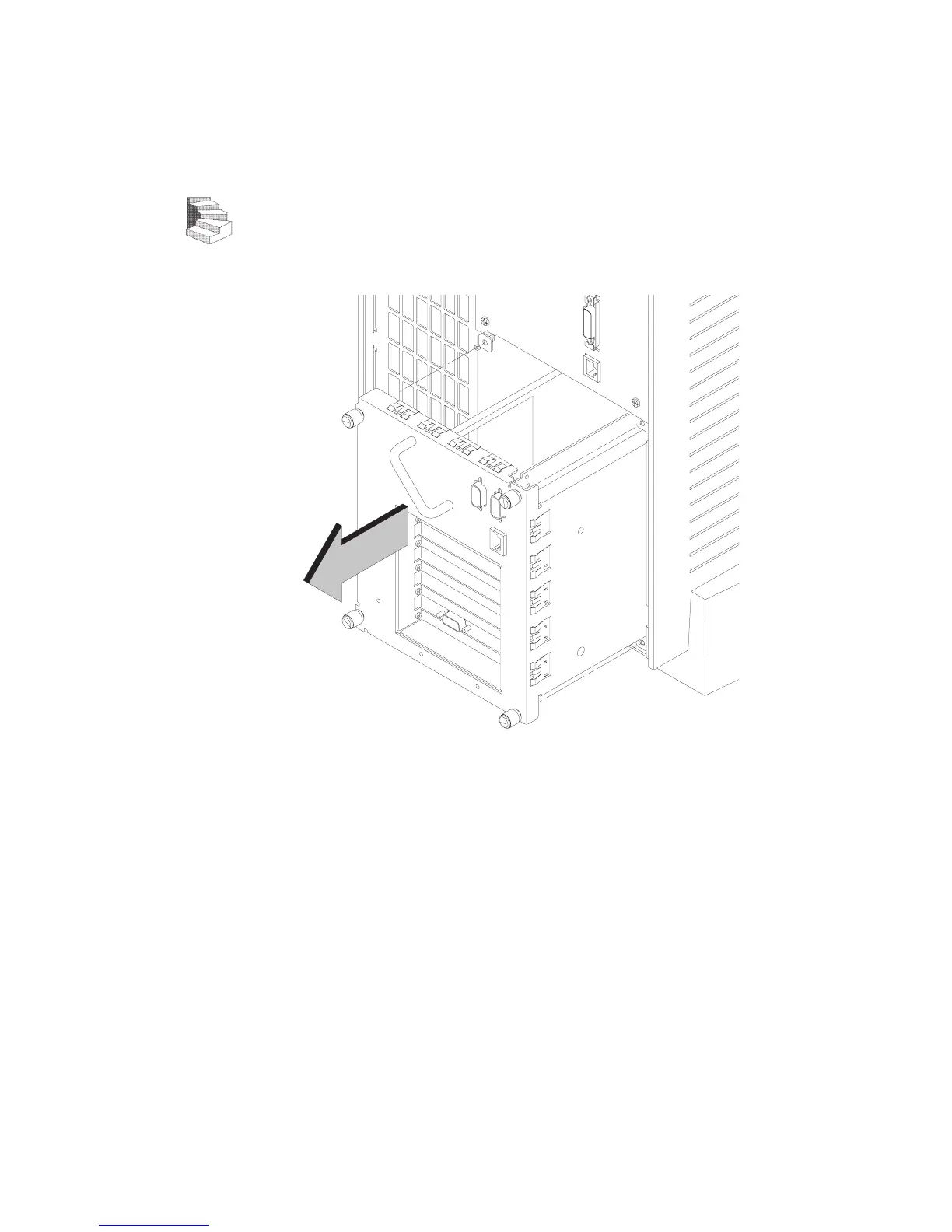

Figur
e B–34.Removing the PCI/EISA Assembly
171
173
Table of Contents
Default Chapter
4
Table of Contents
4
Revision History
17
System Overview
20
Product Description
22
System Unit Front Panel Controls, LED, and LCD
25
System Unit Front Panel Controls
25
System LCD
26
System Power Switch
26
LCD Symbols
26
System Power LED
27
Removable Device Buttons and Leds
27
System Unit with Removable Device Door Open
28
System Unit Rear Panel Connectors
29
System Unit Rear Panel Connectors
30
Audio Connectors
31
Keyboard Connector
33
Audio Electrical Specifications
33
HP Parallel I/O Connector
34
802.3 Network Connectors
34
RS-232C Serial Input/Output Connector
34
SCSI Connectors
35
Power Cord Connector
35
Serial I/O Pins
35
Monitors
36
Pointing Devices
37
Operating System Overview
38
Important Information You Need to Note
39
Lanic ID
39
IP Address and Subnetwork Mask Information
40
Networking Overview
41
Mail
41
Telnet
41
Rlogin
41
Ftp
42
Rcp
42
Nfs
42
Using Your CD-ROM Drive
43
CD-ROM Drive and CD-ROM Media Descriptions
45
CD-ROM Drive
45
Controls and Features
45
CD-ROM Drive Operating Controls and Features
46
CD-ROM Media
47
Caring for CD-ROM Discs
47
Operating the CD-ROM Drive
48
Loading and Unloading a CD-ROM Disc
48
Loading a CD-ROM Disc
48
CD-ROM Disc Tray Partway Open
48
Placing the CD-ROM Disc in the Disc Tray
49
Disc Tray Closed
50
Unloading a CD-ROM Disc
51
CD-ROM Disc Tray Partway Open
51
Removing the CD-ROM Disc from the Disc Tray
52
Verifying the CD-ROM Drive Operation
53
Disc Tray Closed
53
Using Device Files
56
Mounting and Unmounting a CD-ROM Disc
57
Mounting a CD-ROM Disc Using SAM
57
Unmounting a CD-ROM Disc Using SAM
59
Reading the Busy Light
61
Troubleshooting
62
Using Your DDS Tape Drive
63
DDS Tape Drive and Data Cassette Descriptions
65
DDS Drive
65
Controls and Indicators
65
Leds - DDS-DC Drive
66
LED Display Codes - DDS-DC Drive
66
LED Warning Conditions - DDS-DC Drive
67
Leds - DDS-2
68
LED Display Codes - DDS-2 Drive
68
Data Cassettes
69
Media Life
69
Cleaning the Tape Heads
69
Media Restrictions
70
Setting the Write-Protect Tab on a Data Cassette
70
Setting the Write-Protect Tab on a DDS Tape
70
Operating the DDS Tape Drive
71
Loading and Unloading a Data Cassette
71
Verifying the DDS Tape Drive Operation
72
Using Device Files
74
Archiving Data in Compressed and Noncompressed Mode
76
Writing to a Data Cassette
77
Restoring Files from a Data Cassette to Your System
77
Listing the Files on a Data Cassette
79
Further Command Information
80
Media Interchangeability Restrictions
80
Troubleshooting
80
Ordering Information
81
Using Your 3.5-Inch Floppy Drive
82
Using the Floppy Diskette
84
Setting the Write-Protect Tab on a Diskette
84
Setting the Write-Protect Tab on a Floppy Diskette
84
Inserting and Removing a Diskette
85
Inserting and Removing a Floppy Diskette
85
Operating the Floppy Drive
86
Verifying the Floppy Drive Configuration
86
Using Device Files
87
Formatting a New Diskette
89
Transferring Data to and from a Floppy Diskette
89
Saving Files to a Floppy Diskette
90
Restoring Files from a Floppy Diskette to Your System
90
Listing the Files on a Floppy Diskette
91
For more Information
91
Configuring the Floppy Driver
93
Troubleshooting
93
Ordering Information
93
Solving Problems
94
Common Problems and Solutions
96
Problems Powering up the System
96
Problems Loading and Booting the Operating System
97
Problems with the 802.3 Network
98
Problems Using a Hard Disk Drive
99
Problems Using the CD-ROM Drive
100
Problems Using the DDS Tape Drive
101
Problems Using the Floppy Disk Drive
102
Dealing with a Boot Failure
103
Memory Failures
104
LCD-Indicated Problems
105
Running System Verification Tests
108
Safety and Regulatory Statements
111
Safety and Regulatory Statements Appendix A
111
Declaration of Conformity
111
Federal Communications Commission (FCC
113
Emissions Regulations
113
VCCI Class 2 ITE
114
Emissions Regulations Compliance
114
Regulation on Noise Declaration for Machines -3. GSGV
114
Acoustics
114
Electrostatic Discharge (ESD) Precautions
115
Laser Safety Statement (for U.S.A. Only
116
IEC 825 Class 1 Laser Label
116
Warnings and Cautions
117
Changing Your Workstation's Hardware Configuration
119
Changing Your Workstation's Hardware Appendix B
121
Checking the SCSI Ids
121
Opening the System Unit
124
B–1. Removing the Front Panel
125
Closing the System Unit
126
B–2. Replacing the Front Panel
127
Installing Removable Media Devices
128
CD-ROM Drive
128
B–3. Removing Storage Drawer from System Unit
129
B–4. Removing FAN from EMI Plate
130
B–6. Removing FAN/EMI Plate
132
B–7. Removing Drive Screws
133
B–8 CD-ROM Drive SCSI Address/Jumper Settings
135
DDS Tape Drive
136
B–9 DDS-DC Tape Drive SCSI Address/Jumper Settings
137
DDS-2 Tape Drive and SCSI Address/Jumper Settings
138
B–11. Switch Settings for Data Compression Operation Mode
139
Floppy Drive
140
B–12. Floppy Drive SCSI Address/Jumper Settings
141
B–13. Floppy Drive Terminators
142
B–14. Attaching Removable Drive Mounting Bracket and Drive Orientation
143
Adding a Hard Drive
147
Installing a Hard Disk Drive
150
Configuring a Hard Drive
153
Installing Additional Memory
156
Replacing the Processor Module
164
Installing an EISA, PCI or Graphics Board
169
Changing Your Monitor Type
182
Setting the Monitor Type from the Boot Console Interface
182
SCSI Connections Appendix C
184
SCSI Connections Appendix C
184
SCSI Bus Differences
184
Cables
187
C–1. SCSI Bus Differences
187
SCSI Bus
188
Connectors and Terminator
189
SCSI Configuration Constraints
189
C–3. Narrow Single-Ended SCSI Bus Configuration Constraints
192
C–5. Ultra, Wide–Se SCSI Bus Configuration Constraints
193
Determining SCSI Bus Length
194
SCSI Bus
196
SCSI Bus
198
Ultra, Wide–Se SCSI Bus Length
199
Narrow Single-Ended System SCSI Device Ids
203
C–9. Narrow, Single-Ended SCSI Device Ids
205
C–11. Ultra, Wide–Se SCSI Device Ids
208
Ultra, Wide–Se SCSI Ids
208
Connecting to the SCSI Ports
209
System SCSI Port Connection
209
Boot Console Interface Features
212
Accessing the Boot Console Interface
212
Booting Your Workstation
212
Searching for Bootable Media
212
Resetting Your Workstation
212
Boot Console Interface Features
213
Accessing the Boot Console Interface
218
Booting Your Workstation
220
Searching for Bootable Media
223
Resetting Your Workstation
224
Displaying and Setting Paths
225
D–1. System Paths
225
D–2. Mnemonic Style Notation
225
Displaying and Setting the Monitor Type
227
The Monitor Command
227
Displaying the Current Monitor Configuration
229
Setting the Monitor Type
230
Setting the Monitor Type at Power on
233
Displaying the Current Memory Configuration
235
Displaying the Status of the System I/O
240
Setting the Auto Boot and Auto Search Flags
242
Displaying and Setting the Security Mode
244
Displaying and Setting the Fastboot Mode
245
Displaying the LAN Station Address
246
Displaying System Information
247
Displaying PIM Information
248
