iLO Manageability Card LAN LEDs
The iLO manageability card LAN uses an RJ-45 type connector. This connector has four LEDs that signal
status and activity.

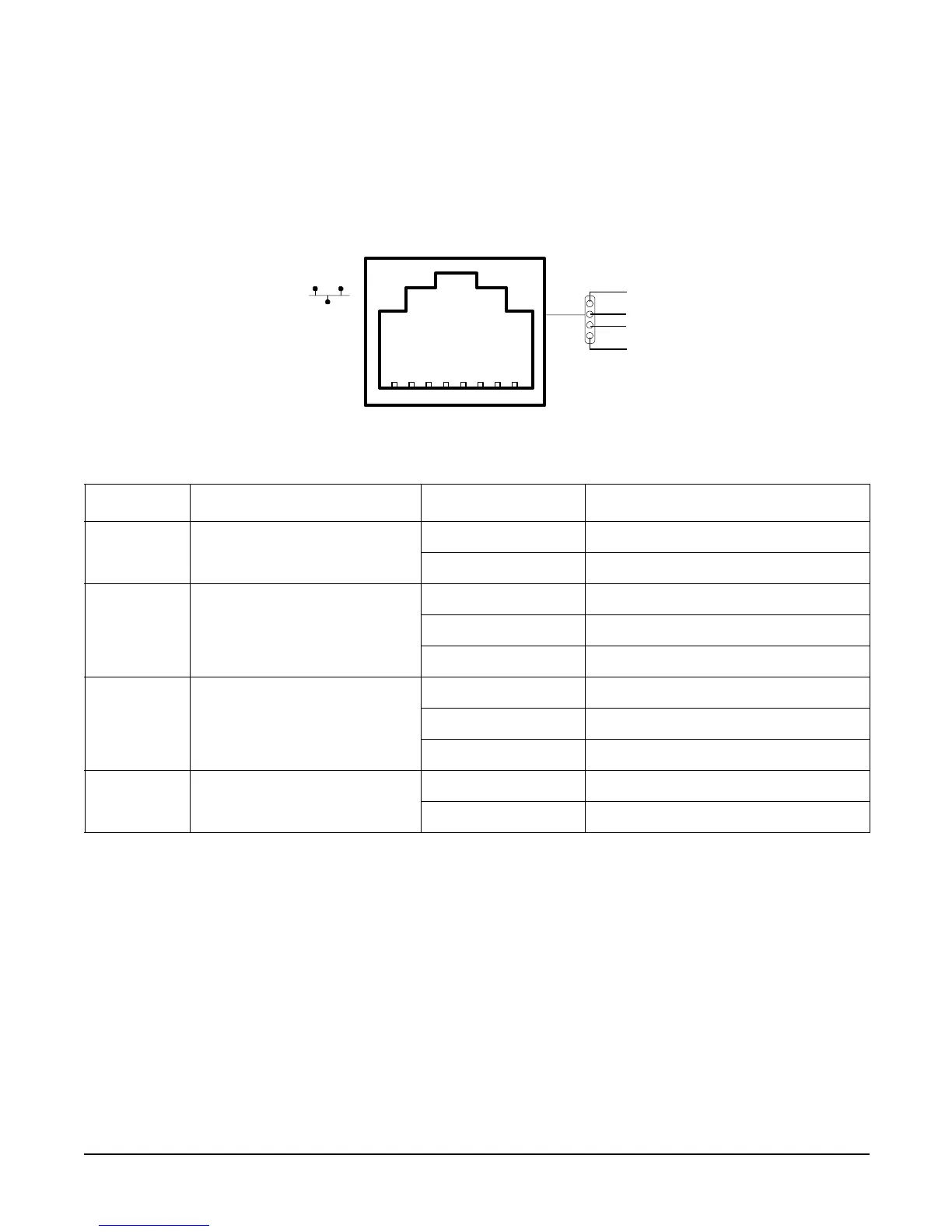

Figure 2-7 iLO Manageability Card LAN LEDs
Table 2-6 iLO Manageability Card LAN LEDs
LAN LED Location Color State
Self-test Top Yellow MP running self-test or error
Off MP has booted
10BT 2nd from top Green 10BT link established
Blinking green 10BT activity
Off No link or 100BT link
100BT 2nd from bottom Green 100BT link established
Blinking green 100BT activity
Off No link or 10BT link
Standby
Power
Bottom Green Standby power on
Off Standby power off
Self-test
10BT
100BT
Standby
Power
