HP 9000 rp3440 - Figure 2-30 Open the Release Clip

Chapter 2
Installing and Configuring
Removing and Replacing Airflow Guides
45
Step 8. Rotate the clip clockwise to release the latch (Figure 2-30).

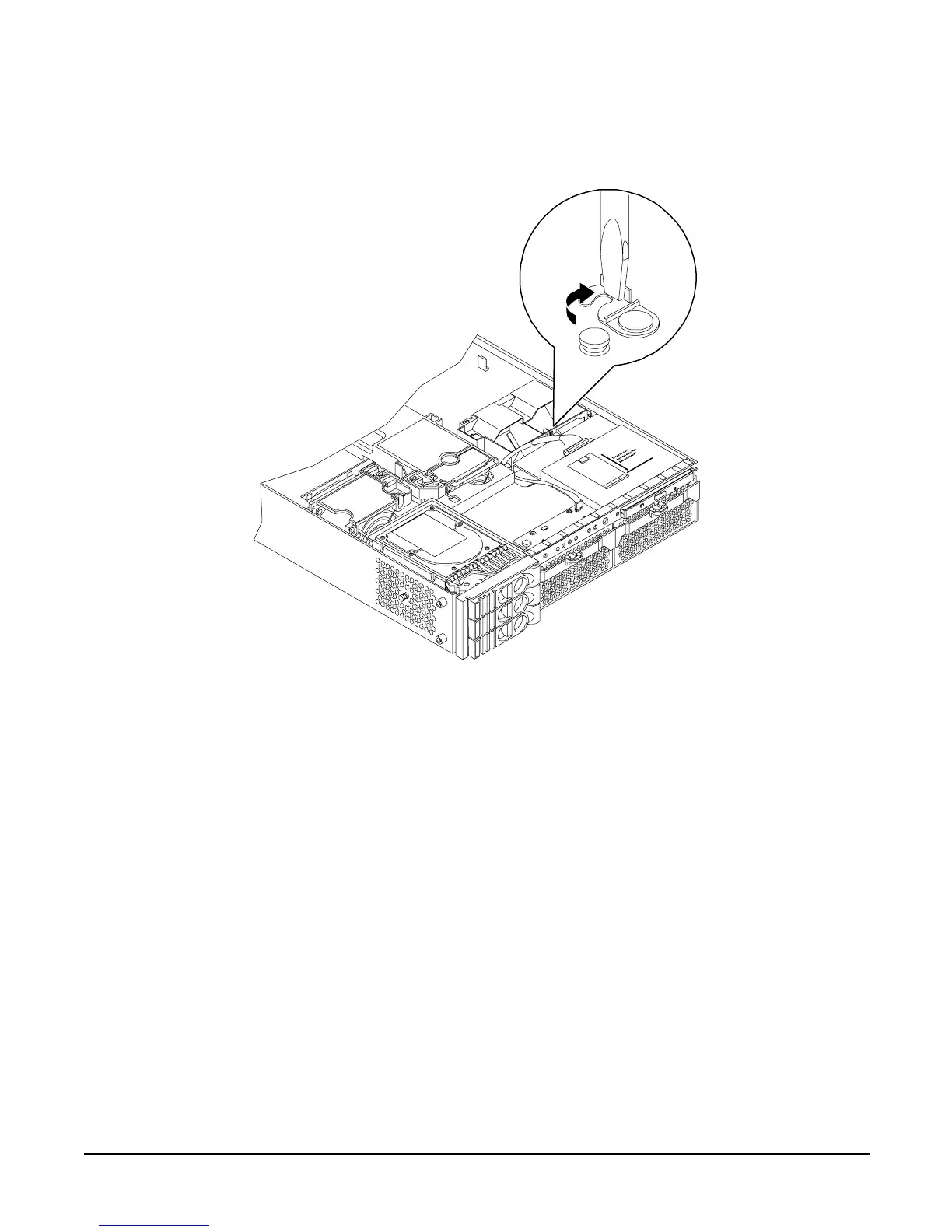

Figure 2-30 Open the Release Clip
Step 9. Disconnect the power cable connected to the guide from the system board by squeezing the clips.
