Chapter 2
Installing and Configuring
Removing and Replacing System Covers and Bezels
35
To replace the front bezel parts, perform the following steps:

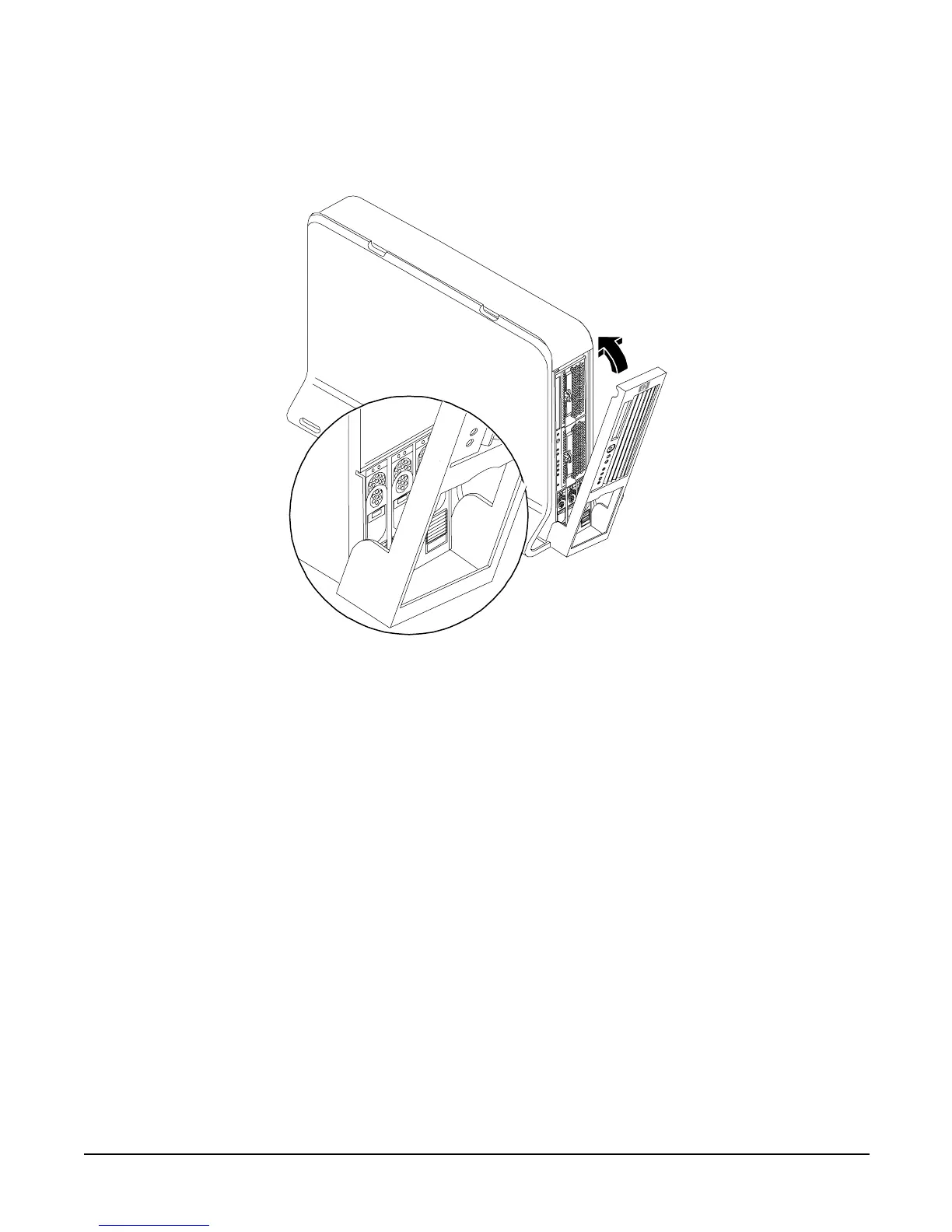

Figure 2-20 Aligning the Tower Front Bezel
Step 1. Position the bezel at an approximate 45 degree angle and align the retaining slots at the bottom
with the retaining tabs on the chassis. Press the bezel against the chassis to engage the tabs
(Figure 2-20).
Step 2. Rotate the bezel against the chassis so that it snaps into place.
