8/40 SAN Switch features
• Provides the
EZSwitchSetup Wizard for easy setup a nd basic configuration.
• Support for 1, 2, 4, and 8Gbps autosensing Fibre Channel switch and router ports.
• Integrates a single m otherboard design with 667 MHz PowerPC 4 40EPx Reduced Instruction Set
Computer (RISC) CPU and integrated peripherals which provide high performance.
• Ships FICON
, FICON Cascading and FICON Control Unit Port (CUP) ready.
• Provides two hot-swappable, redundant integrated power supply and fan FRUs.
• Universal ports tha t self-configure as E_Ports, F_Ports, M_Ports, or FL_Ports. Ex_Ports are activated
on a per-po
rt basis with the optional HP B-series 48-80 Port SAN Switch Integrated Routing LTU.
This license provides native Fibre Channel Routing (FCR) on a per-port basis, rather than limiting
routing ports to those on a dedicated routing blade or switch. Just like traditional FCR, Integrated
RoutingusesEX_Portstoimportandexportdevicesbetweenfabrics,enablingselectivedevice
sharing while maintaining remote fabric isolation. See Table 5, page 23 for ordering information.
• Integra
tes a Universal Serial Bus (USB) por t that provides storage for firmware updates, output of
the supp
ortsave command and storage for configuration uploads and downloads.
Port side of the 8/40 SAN Switch
The port side of the 8/40 SAN Switch includes the system status LED, console port, Ethernet port and
LEDs, USB por t, and FC ports with corresponding port status LEDs

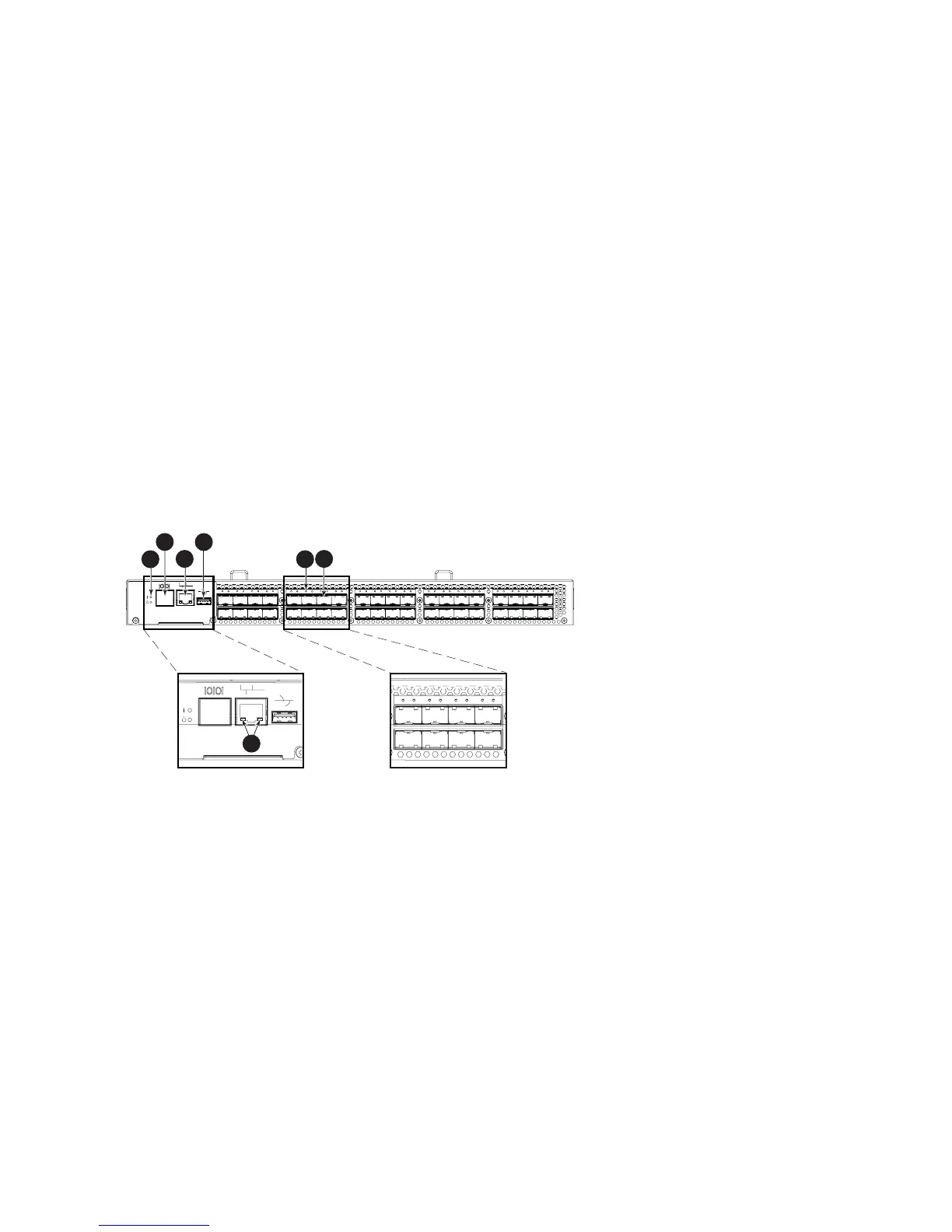

Figure 2 shows the por t side of the 8/40 SAN Switch.
8 9 10 11
12 13 14 15
0 1 2 3 8 9 10 11
16
17
18 19
24 25 26 27
32 33 34 35
4 5 6 7 12 13 14 15 20
21
22 23
28 29 30 31
36
37 38 39
26454a
1
2
3
5
4
6
7
1. S
ystem status (top) and pow er (bottom) LEDs
5. USB port
2. System RS-232 console port (RJ-45) 6. Fibre Channel port status LED
3. System Ethernet port 7. Fibre Channel port
4. E
thernet port LEDs (green/amber)
Figure 2 Port side view—8/40 SAN Switch
16
Introducing the HP StorageWorks 8Gb SAN Switch
