8/80 SAN Switch LEDs
8/80 SAN Switch LEDs a re located on the port side and nonport side. See Figure 22 and Figure 23.
26458a
1
2
3
4 5
6 7
8
913 12 11 10
18/80
SAN Switch
8 FC port status LED (port 0)
2 System status LED
9 FC port status LED (port 4)
3SystempowerLED
10 FC ports (0 through 7)
4Cons
ole port
11 FC port status LED (port 48)
5Ethernetport
12 FC port status LED (port 52 )
6 Ethernet speed LED 13 FC ports (53 through 55)
7EthernetlinkLED

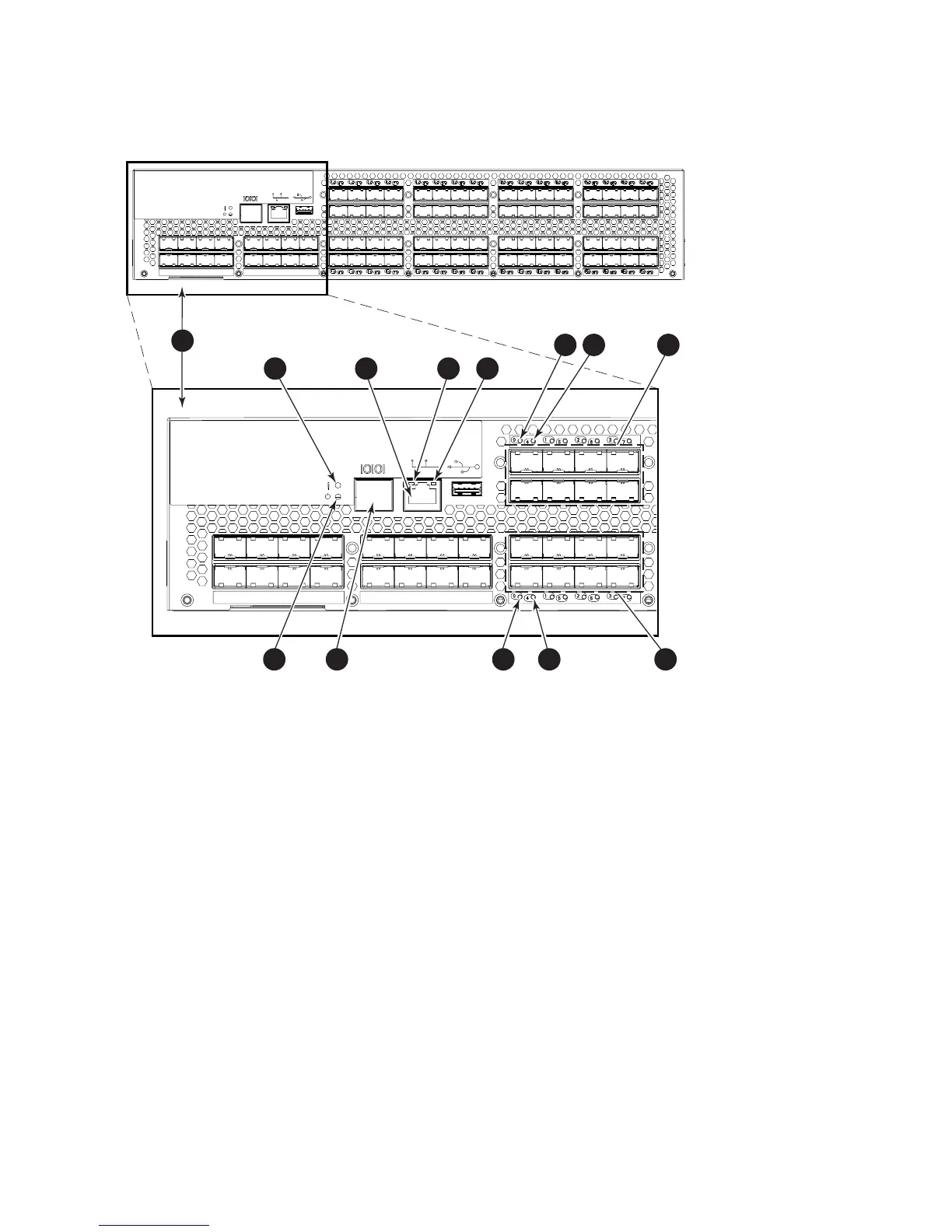

Figure 22 Identifying 8/80 SAN Switch port side LEDs
50
Operating the 8Gb SAN Switch
