7. Secure the two inner rails (one on each side) to the device, using the appropriate number of
screws (see Table 10).
For example, Figure 16 shows an inner rail attached to the MP Router with three screws using
the two rail screw holes marked R , and one marked 16. Attaching both rails require six screws.
This figure also applies to the Encryption SAN Switch and the FCoE Converged Network Switch.
Also, Figure 17 shows an inner rail attached to the 4/64 SAN Switch with five screws using the
rail screw holes marked 16. Attaching both rails require ten screws. This figure also applies to
the 8/8, 8/24, 8/40, and 8/80 SAN Switches.

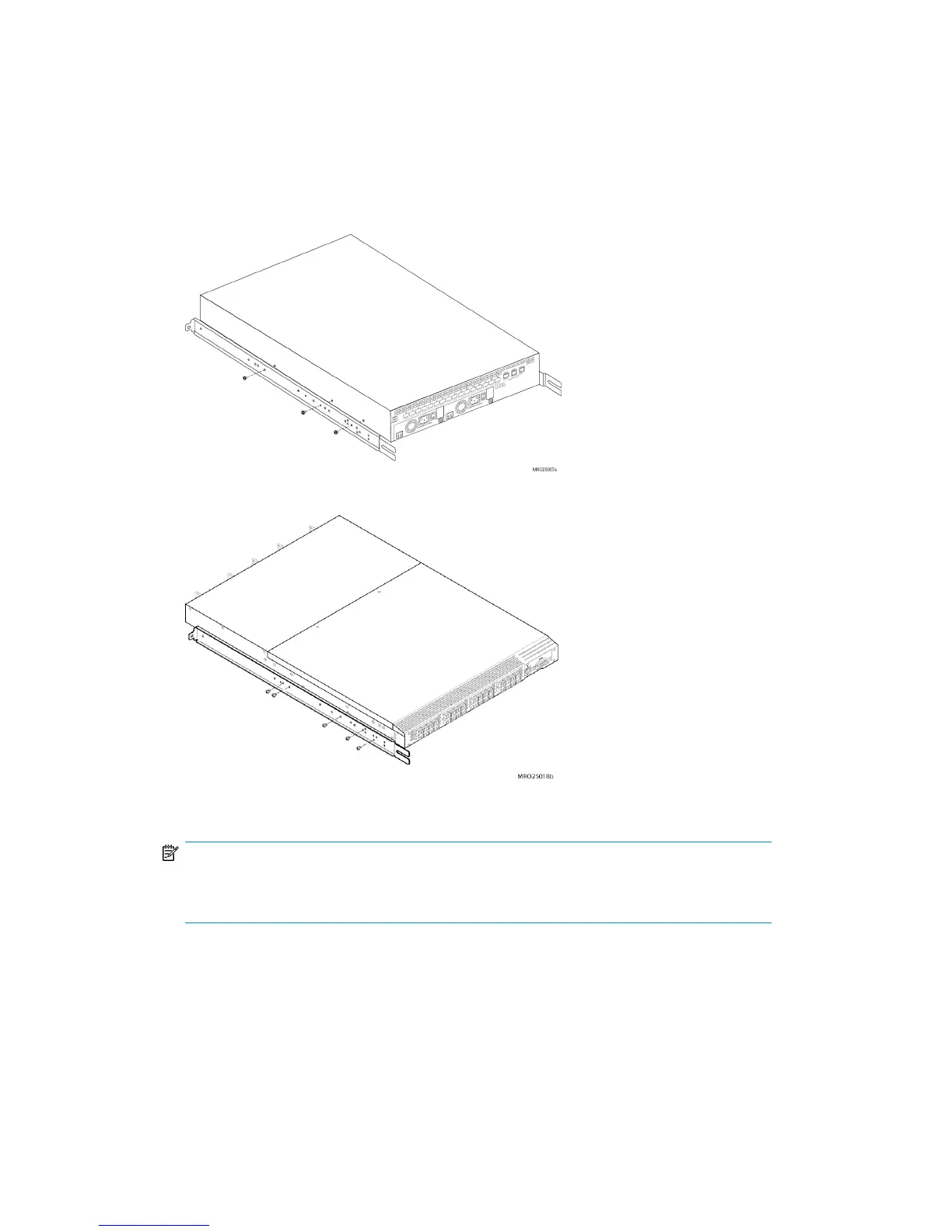

Figure 16 Securing the inner rails to an MP Router
Figure 17 Securing the inner rails to the 4/64 SAN Switch
NOTE:
For factory integration
only
, tighten the #8-32 x 5/16-inch Phillips pan-head SEMS screws
and torque between 6 and 8 inch-pounds.
8. If installing one of the following switches, install the plenum that ships in the switch accessory kit:
• 8/8 SAN Switch
• 8/24 SAN Switch
See “Installing the plenum (if required)” on page 44 for complete installation instructions.
See “Securing the switch to the outer rails” on page 44 if not installing one of the devices listed
in Step 8, to complete the rack mount procedure.
8-Gb SAN Switch hardware reference manual 43
