The following items are required to install the switch in a rack:
• SAN Switch or MP Router
• Power cables
• #2 Phillips screwdriver
• 7/16-inch wrench or socket
• Plenum (if required) . For 8 Gb mod els, a p lenum is required for 8/8 and 8/24 SAN Switches only.
• SAN Switch Rack Mount Kit hardware, shown in Table 8, which identifies rails and rail mounting
hardware

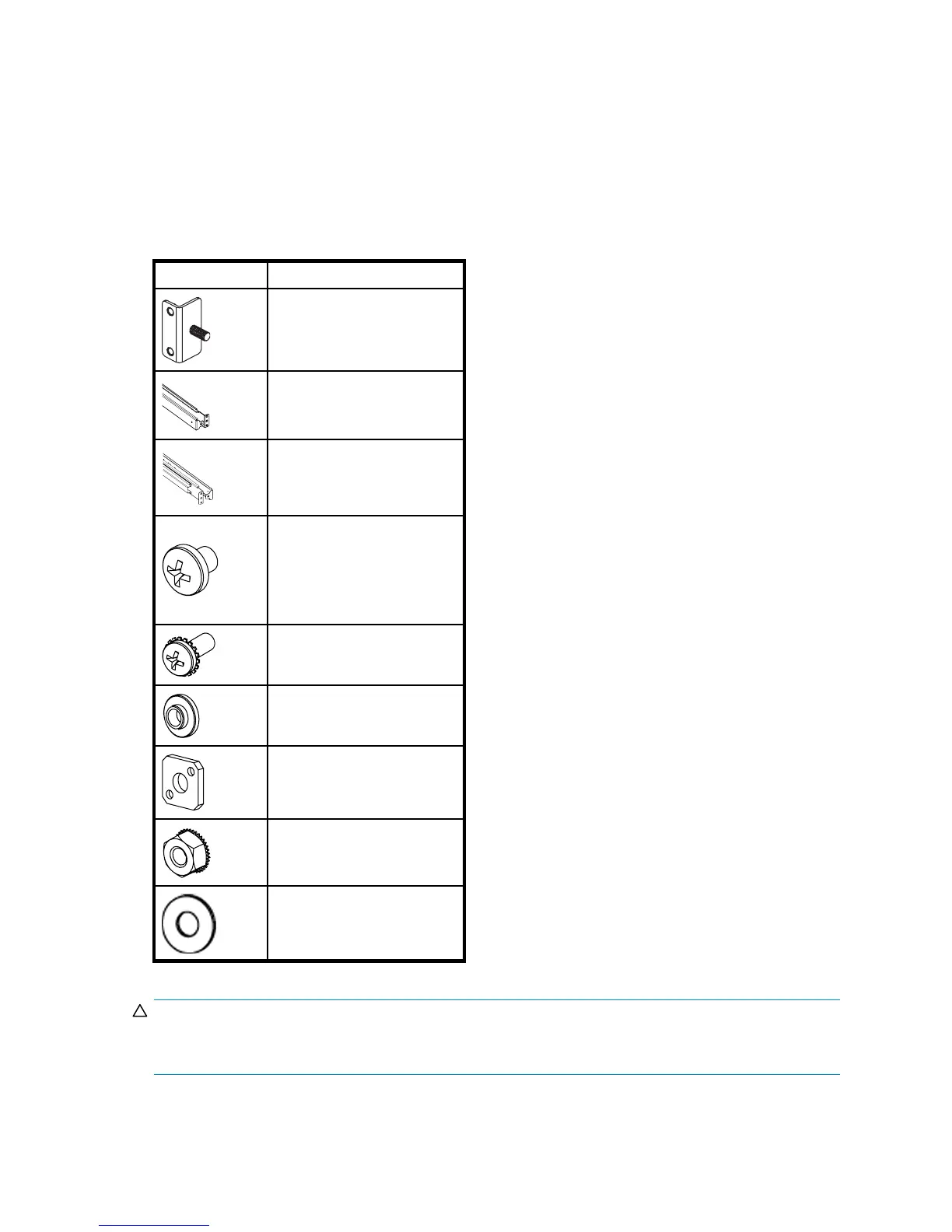

Table 8 SAN Switch Rack M ount Kit hardware
Item
Description
Two rear mounting brackets
A right inner rail and a right
outer rail
A left inner rail and a lef t
outer rail
14 #8 -32 x 3/16-inch Phillips
pan-head screws with thread
lock for use with the SAN
Switch 2/32 only .
14 #8 -32 x 5/16-inch Phillips
pan-head SEMS screws
10 #10 -32 x 1 /2-inch Phillips
pan-head screws with captive
star lock-washers
Eight #10 alignment washers
Eight #10 adapter washers
Two 1/4-
20 hex nuts with
captive
star lock-washers
Two 1/4-
inch flat washers
CAUTION:
Forproperairflow, the SFP media side of the SAN Switch must face the rear of the rack. This mounting
allows air to enter the front of the rack and exhaust at the rear.
8Gb SAN Switch hardware reference manual
31
