HP StorageWorks 8/24 - SAN Switch

26459a
1 2
3
4
810 9
5
6
7
1Powersuppl
y#2statusLED
6 Power suppl
y #1 Status LED
2 P ower supply #2 7 P ower supply #1
3 Fan assembly #3 8 Fan assembly #3 status LED
4 Fan assembly #2 9 Fan assembly #2 status LED
5 Fan assembly #1 10 Fan Assembly #1 Status LED

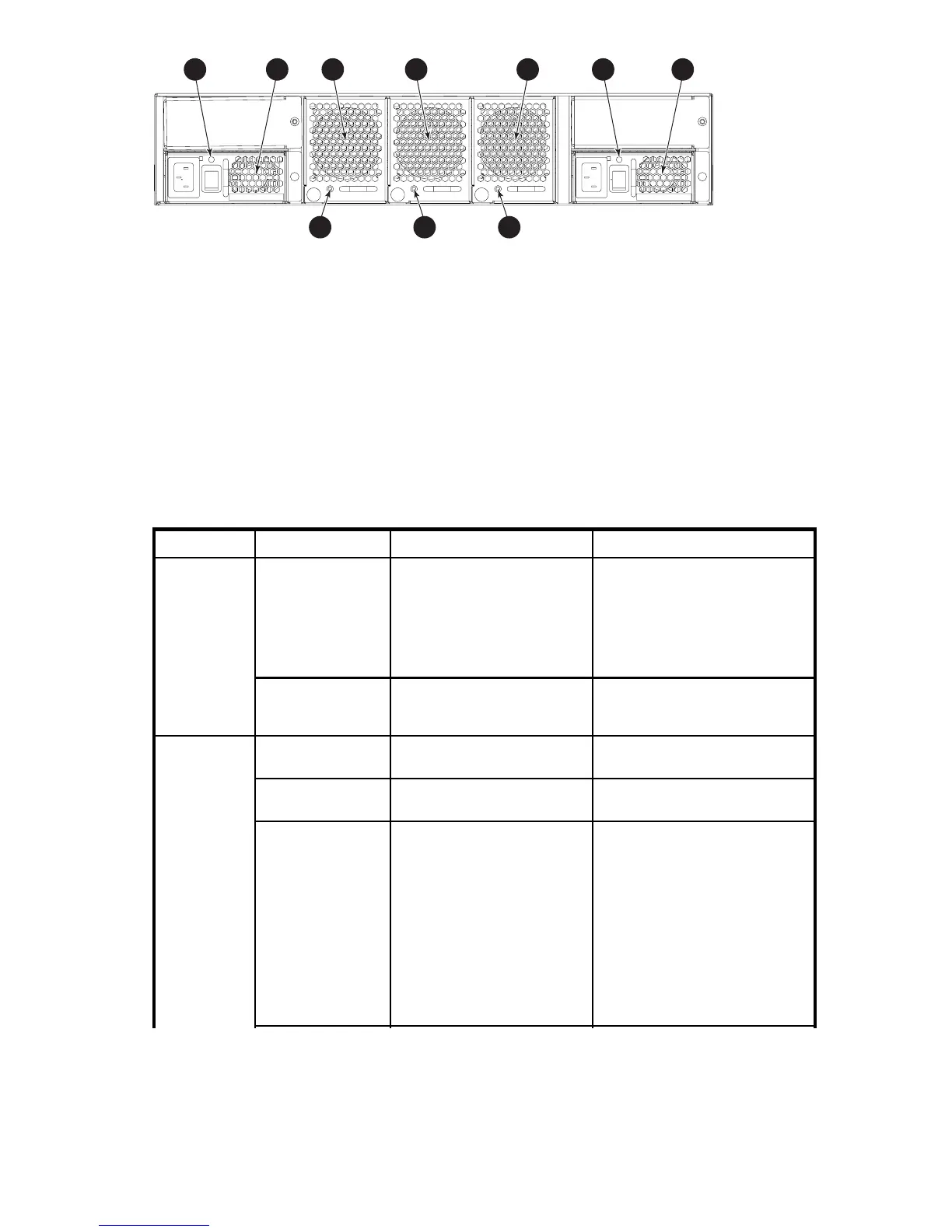

Figure 23 Identifying 8/80 SAN Switch nonport side LEDs
Port side LED activity for the 8/80 SAN Switch
Table 1 0 describe LEDs and recommended actions.
Table108GbSANSwitchportsideLEDpatterns
LED name
LED color
Status of hardware
Recommended action
No light
System is off or there is an
internal power supply failure.
Ve rify that the system is powered
on (power supply switches to “1”),
the power cables are attached,
and your power source is live. If
the system power LED is not green,
the unit may be faulty. Contact
your switch service provider .
Power status
Steady green
System is on and power
supplies are functioning
properly.
No action required.
No light
System is off or there is no
power.
Verify that the system is on and
has completed booting.
Steady green
System is on and functioning
properly.
No action required.
Steady amber (for
more than five
seconds)
Unknown state, boot failed, or
the system is faulty. This LED
displays steady amber during
POST.Thisisnormalanddoes
not indicate a fault.
Perform the following steps:
nl
1.
Connect a serial cable.
2.
Reboot the system.
3.
Check the failure message on
the console.
4.
If this does not work, contact
your service provider.
Syst
em status
8Gb SAN Switch hardware reference manual
51
