• For an HP System/e Rack, install two #10-32 x 1/2-inch Phillips pan-head screws with
captive star lock-washers and two #10 alignment washers in upper and lower hole loc-
ations of the right rail. Then install two #10-32 x 1/2-inch Phillips pan-head screws with
captive star lock-washers and two #10 alignment washers in the upper and lower hole
locations of the left rail. See Figure 15.

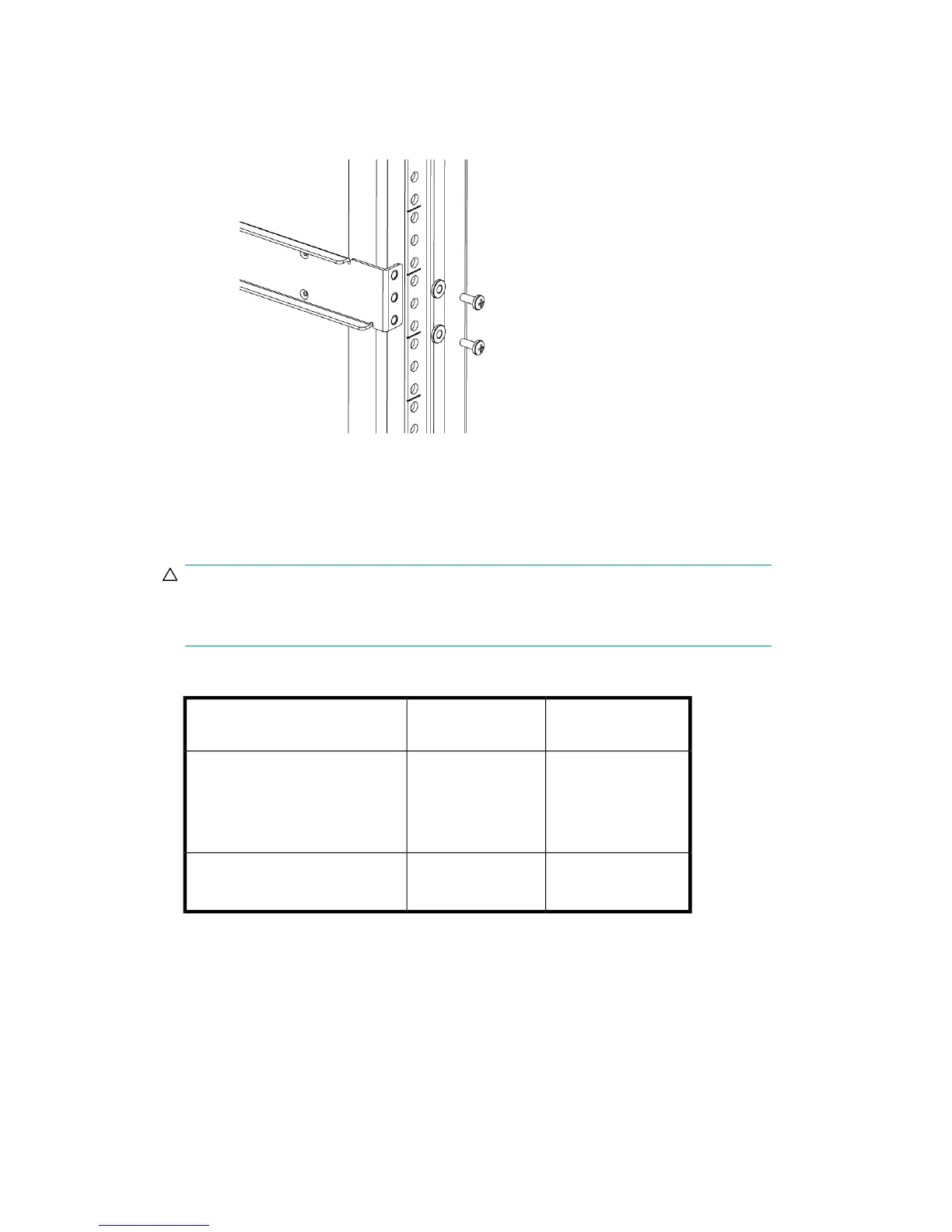

Figure 15 Assembling the outer rails (HP System/e Rack)
5. Depending on the device model, the SAN Switch Rack Mount Kit requires different screw types
for securing the inner rails. Use Table 10 to determine the number and screw type for your specific
switch.
CAUTION:
Do not use any screws other than those provided. Using longer screws than those provided
can cause damage to internal components.
Table 10 Number of screws required to assemble the inner rails to the switch
#8-32 x 3/16-inch
screws
#8-32 x 5/16-inch
screws
Device model
N/ATen (five per rail)
8/8 SAN Switch
8/24 SAN Switch
8/40 SAN Switch
8/80 SAN Switch
N/ASix (three per rail)
Encryption SAN Switch
FCoE Converged Network Switch
8-Gb SAN Switch hardware reference manual 41
