1. The shipping lock on the MSL2024 and MSL4048 prevents the robotic transport mechanism from
moving during shipment. You must remove the shipping lock before powering on the device. The
shipping lock is held in place with a piece of tape and is located in the top center of the new
chassis. After the shipping lock is removed, it should be stored on the back panel of the chassis
for future use.
To remove and store the shipping lock:
a. Locate the tape and lock at the top of the chassis (see Figure 129).

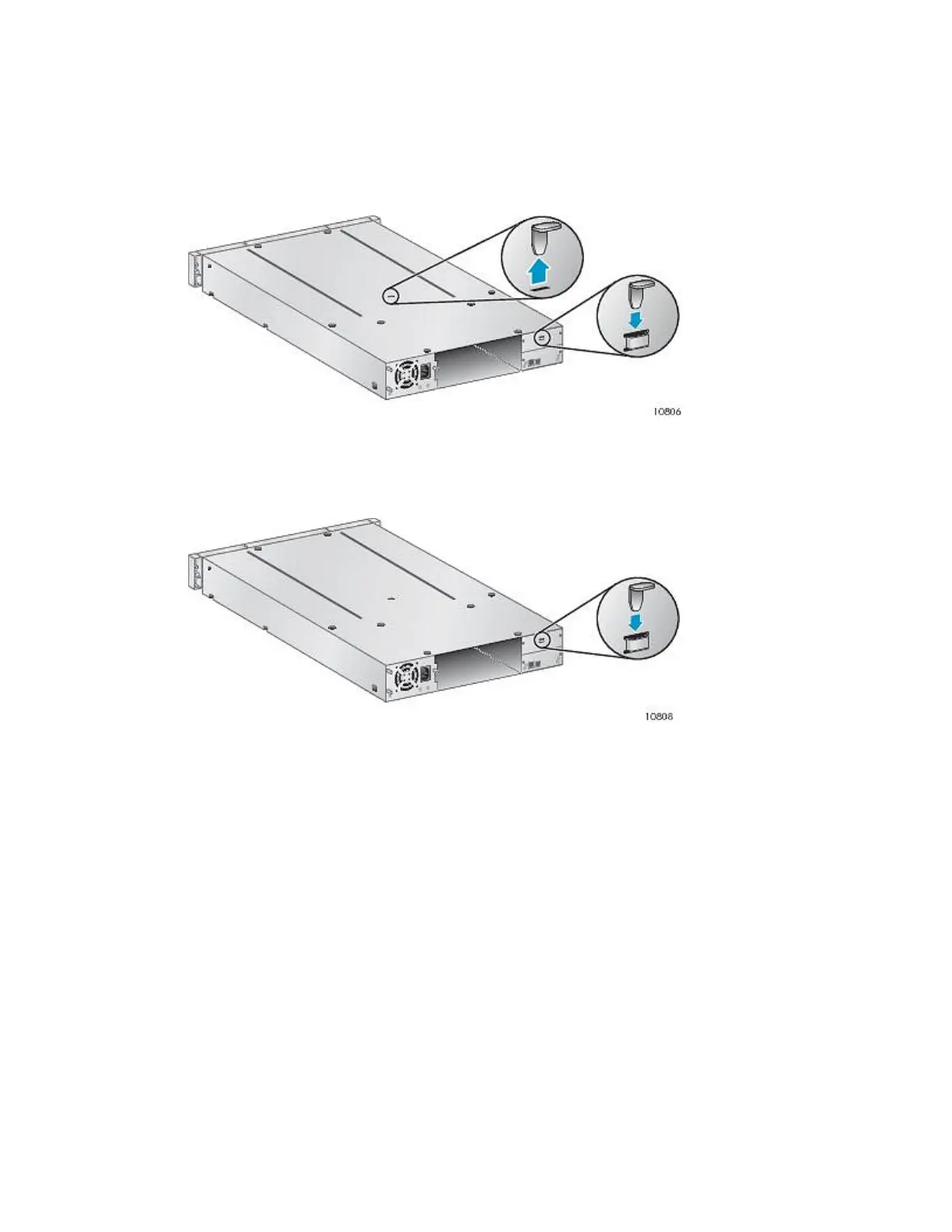

Figure 129 Shipping lock location
.
b. Remove the tape, then remove the lock.
c. Store the lock on the back panel of the device (see Figure 130).
Figure 130 Shipping lock storage location
.
Upgrading and servicing the Tape Library238
