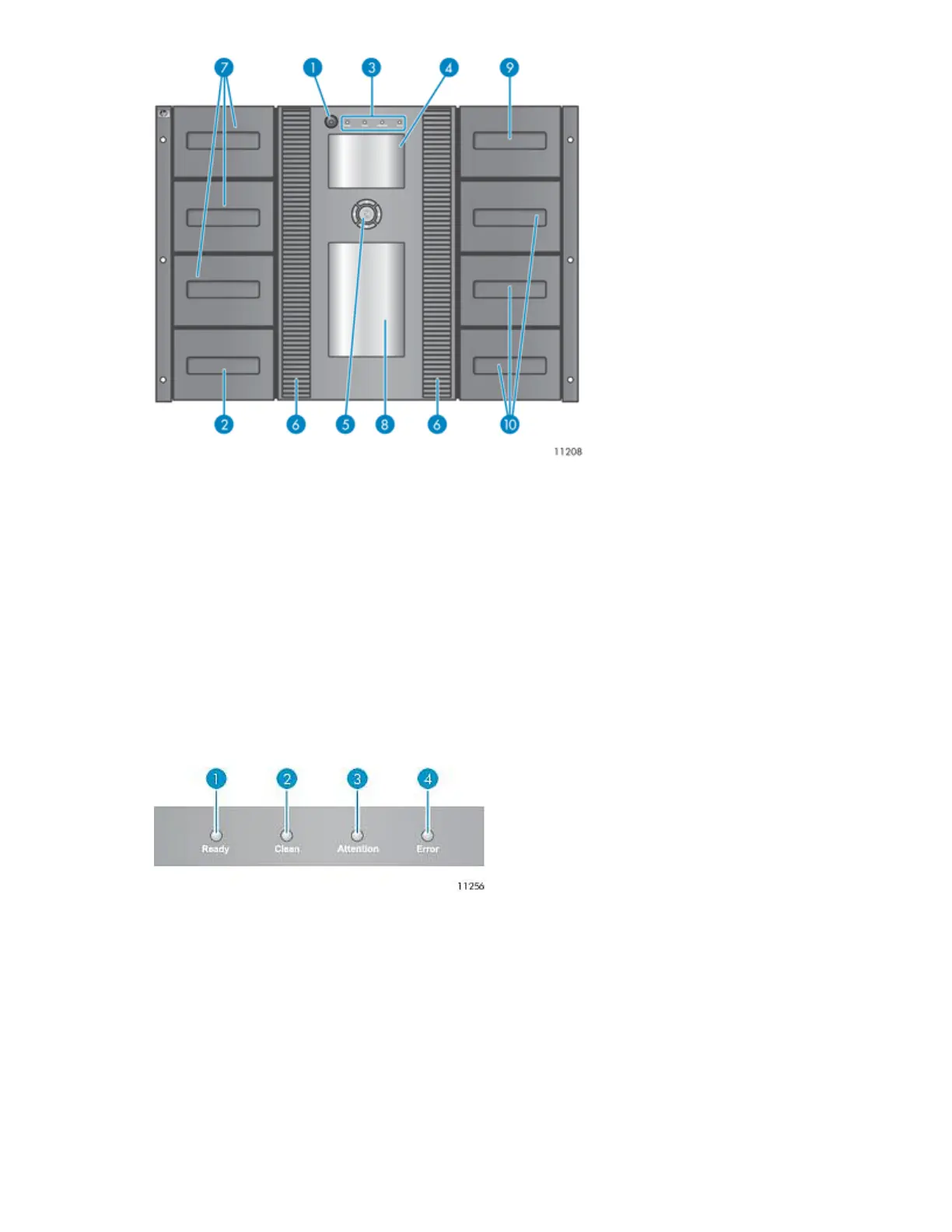

Figure 8 MSL8048 and MSL8096 front panel overview
.
2. Magazine, mailslot location1. Power button
4. Front panel LCD screen3. Front panel LEDs
6. Air vents5. Control buttons
8. Observation window7. Magazine
10. Magazine (MSL8096 only)9. 12-slot mailslot (MSL8096 only)
The operator control panel includes four LEDs that indicate system status information as shown in
Figure 9.
Figure 9 Operator control panel LEDs
.
Ready. Illuminated when power is on. Blinking when there is tape drive or robotics activity.Green1.
Clean. Illuminated when the tape drive has determined that a cleaning cartridge should be
used. Cleaning is only necessary when the device directs you to do so. Additional cleaning
is not necessary.
Amber2.
HP StorageWorks MSL2024, MSL4048, MSL8048, and MSL8096 Tape Libraries User and service
guide 33
