Attention. Illuminated if the device has detected a condition that requires attention by the
operator.
Amber3.
Error. Illuminated if an unrecoverable error occurs. A corresponding error message displays
on the LCD screen (see Troubleshooting on page 153 for more information).
Amber4.
Back panel overview
The back panel provides access to the drive interface connectors, the tape drives, the power connector,
the Ethernet, serial and USB ports, and the magazine release holes. The Libraries support parallel
SCSI, SAS, and Fibre Channel tape drives. For example, Figure 10 shows an MSL4048 with a
full-height parallel SCSI tape drive, Figure 11 shows an MSL8048 or MSL8096 with two Fibre Channel
tape drives, and Figure 12 shows an MSL2024 with a SAS drive.

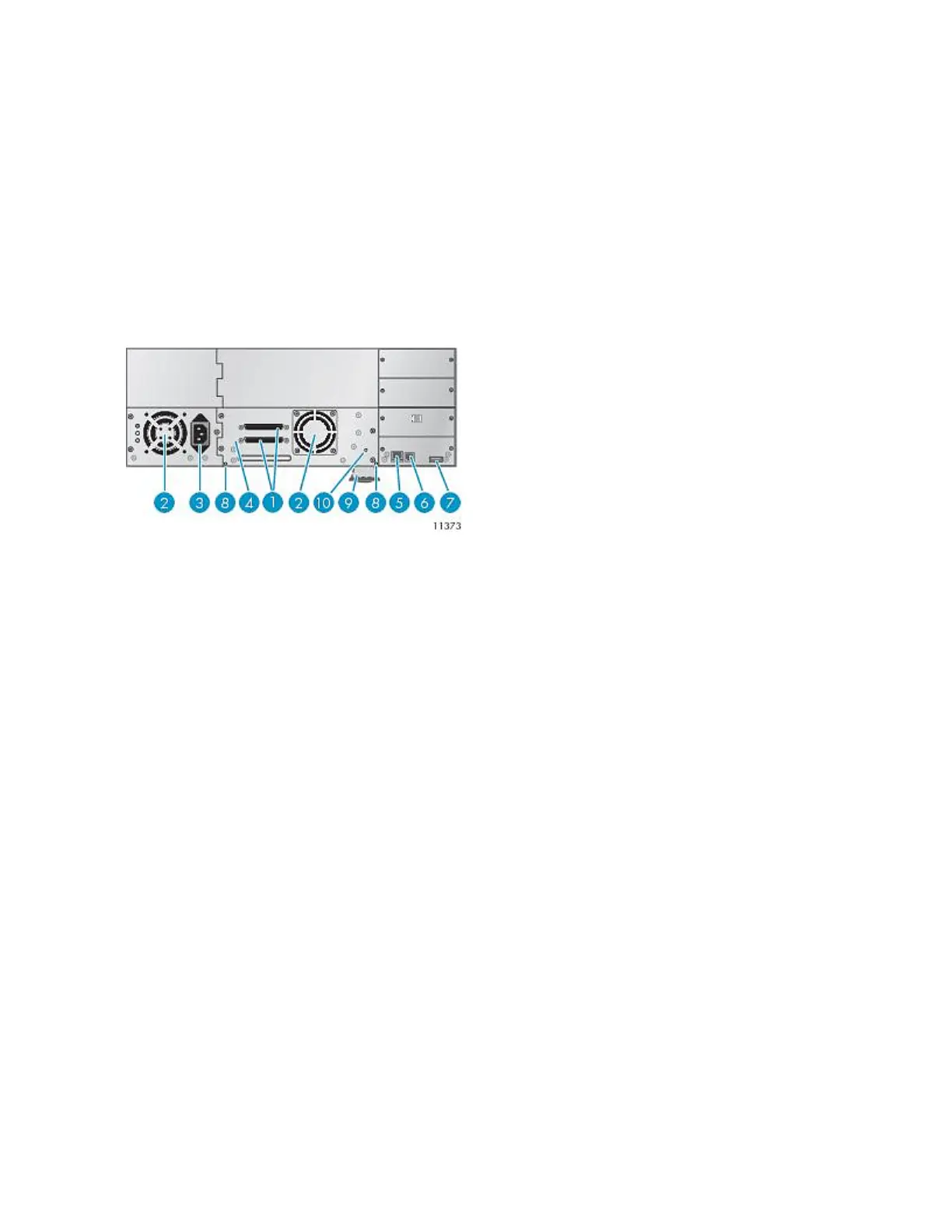

Figure 10 MSL4048 back panel overview with a full-height parallel SCSI tape drive
.
2. Fan1. 68pin parallel SCSI connector
4. Tape drive3. Power connector
6. Serial port (Factory use only)5. Ethernet port
8. Magazine release hole7. USB port
10. Tape drive LED
9. Pull-out tab containing the serial number and other
product information
Features and overview34
