HPE ProLiant MicroServer Gen10 Maintenance And Service Guide

Install the LFF drive
Prerequisites
Before you perform this procedure, make sure that you have the following items available:
• T-15 Torx screwdriver
• LFF drive spare
Procedure

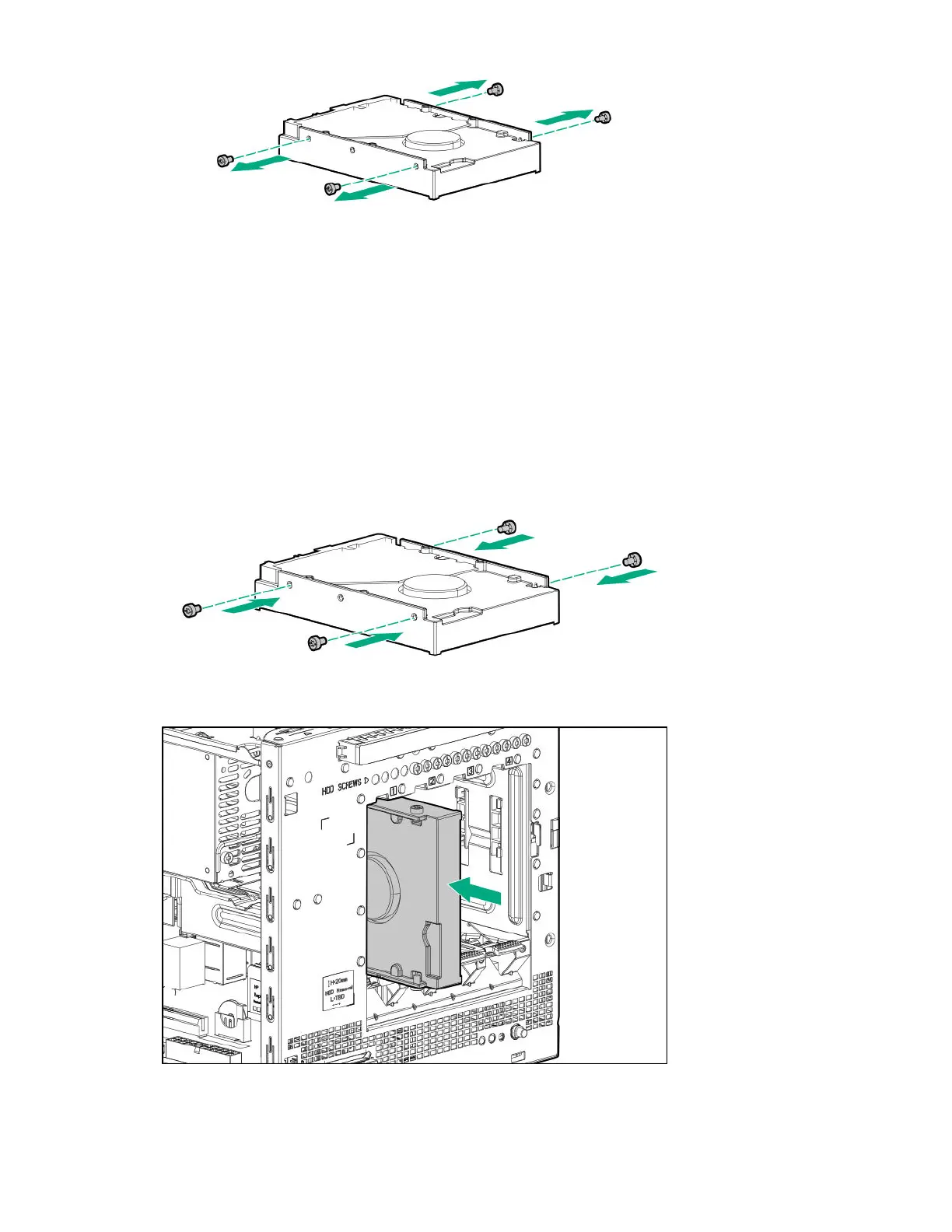

1. Install the screws in the drive.
2. Slide the drive into the drive bay until it clicks into place.
32 Install the LFF drive

HPE ProLiant MicroServer Gen10 Specifications

General

Product Line	HPE ProLiant
Server Type	MicroServer
Maximum Memory	32 GB
Memory Slots	2
Expansion Slots	1 PCIe 3.0 x8 slot
Form Factor	Ultra Micro Tower
Processor	AMD Opteron X3000 series
Memory Type	DDR4 ECC UDIMM
Storage	4 LFF non-hot plug drive bays
Network	2 x 1GbE ports
Power Supply	200W Non-Hot-Plug, Non-Redundant Power Supply
Dimensions	23.5 x 23 x 25.4 cm
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Management	HPE iLO Standard
RAID Support	HPE Smart Array S100i SR Gen10 (RAID 0, 1, 10)
