5. Remove all the DIMMs.

6. If installed, remove all expansion boards.

Install the system board assembly

Prerequisites

Before you perform this procedure, make sure that you have the following items available:

• T-15 Torx screwdriver

• System board assembly spare

Procedure

1. Install the components removed from the old system board on the new system board spare. This

might include one or more of the following:

• DIMMs

• Expansion boards

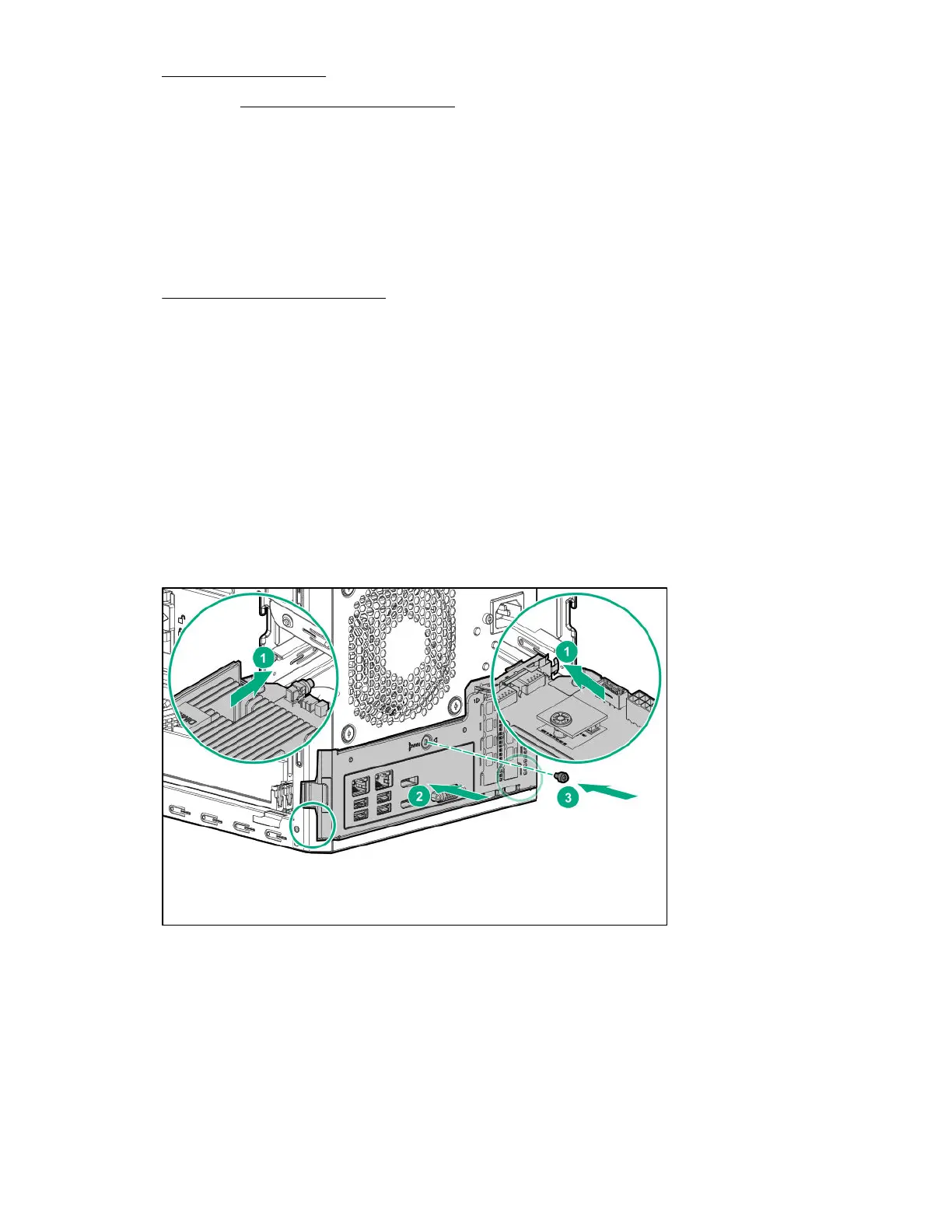

2. Slide the system board assembly into the chassis.

3. Press against the system board assembly until it clicks into place.

4. Install the system board assembly screw.

5. Connect the following system cables:

• Power supply cable

• Optical drive or SSD SATA cable (optional)

Install the system board assembly 69
