HPE ProLiant MicroServer Gen10 Maintenance And Service Guide

Replacing the non-hot-plug drive cable assembly
The non-hot-plug drive cable assembly consists of the drive power and SATA cables attached to a
bracket. If either the drive power or SATA cable becomes defective, the entire cable assembly will need to
be replaced.
Procedure
1. Power down the server on page 22.
2. Disconnect the power cord from the AC source, and then from the server.
3. Disconnect all peripheral cables from the server.
4. Remove the chassis cover on page 25.
5. Remove the front bezel on page 22.
6. Remove all installed drives.
7. Remove the non-hot-plug drive cable assembly on page 47.
8. Install the new non-hot-plug drive cable assembly.
9. Install all removed drives.
10. Install the front bezel on page 29.
11. Install the chassis cover on page 29.
12. Connect all peripheral cables to the server.
13. Connect the power cord to the server power jack, and then to the AC source.
14. Power up the server on page 30.

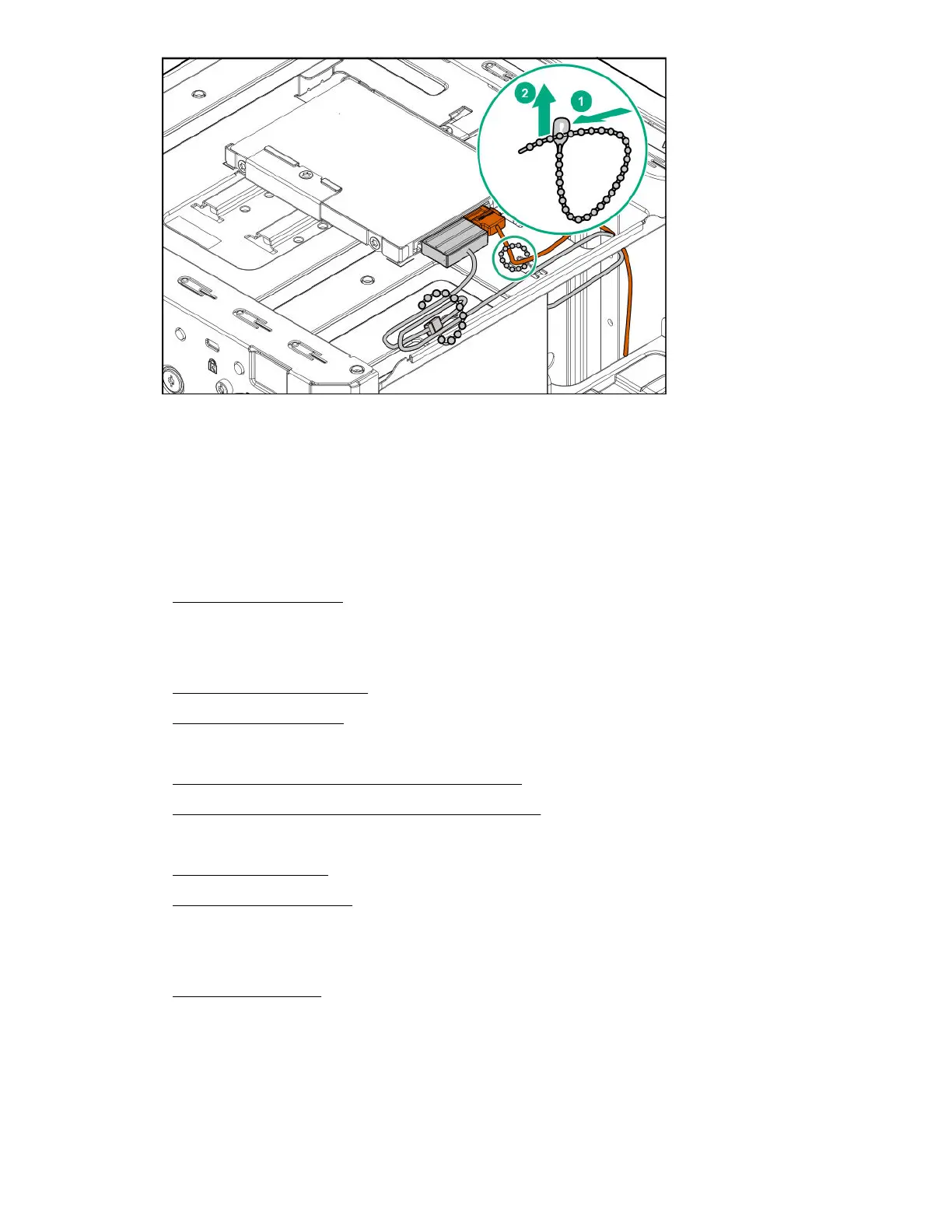

Remove the non-hot-plug drive cable assembly
Prerequisites
Before you perform this procedure, make sure that you have a T-15 Torx screwdriver available.
Replacing the non-hot-plug drive cable assembly 47

HPE ProLiant MicroServer Gen10 Specifications

General

Product Line	HPE ProLiant
Server Type	MicroServer
Maximum Memory	32 GB
Memory Slots	2
Expansion Slots	1 PCIe 3.0 x8 slot
Form Factor	Ultra Micro Tower
Processor	AMD Opteron X3000 series
Memory Type	DDR4 ECC UDIMM
Storage	4 LFF non-hot plug drive bays
Network	2 x 1GbE ports
Power Supply	200W Non-Hot-Plug, Non-Redundant Power Supply
Dimensions	23.5 x 23 x 25.4 cm
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Management	HPE iLO Standard
RAID Support	HPE Smart Array S100i SR Gen10 (RAID 0, 1, 10)
