HPE ProLiant MicroServer Gen10 Maintenance And Service Guide

Replacing an SFF drive
Procedure
1. Power down the server on page 22.
2. Disconnect the power cord from the AC source, and then from the server.
3. Disconnect all peripheral cables from the server.
4. Remove the front bezel on page 22.
5. Remove the SFF drive on page 33.
6. Install the new SFF drive.
7. Install the front bezel on page 29.
8. Connect all peripheral cables to the server.
9. Connect the power cord to the server power jack, and then to the AC source.
10. Power up the server on page 30.
Remove the SFF drive
Prerequisites
Before you perform this procedure, make sure that you have a T-10 Torx screwdriver available.
Procedure

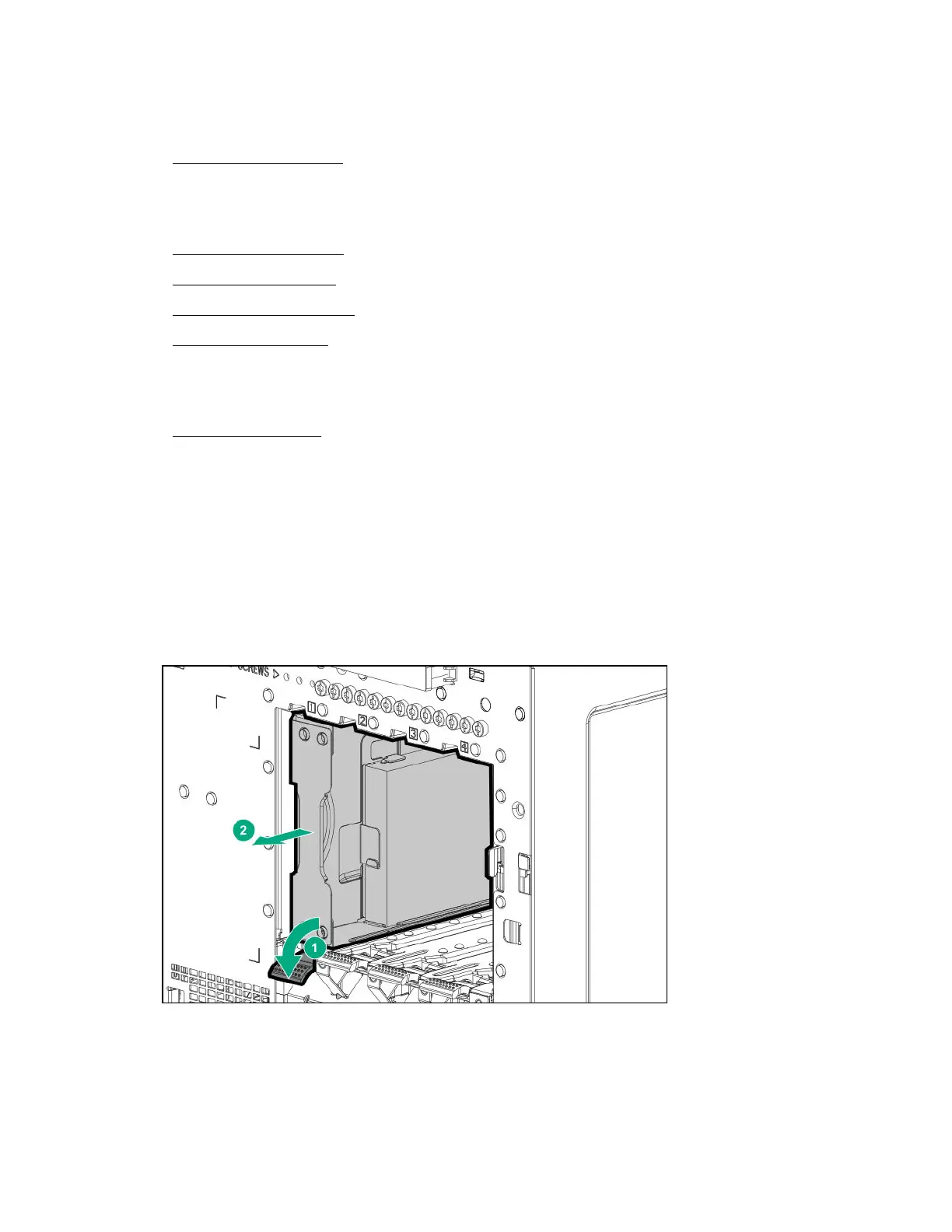

1. To disengage the drive converter tray, press the drive latch.
2. Slide the converter tray out of the drive bay.
3. Remove the screws on the bottom of the converter tray.
Replacing an SFF drive 33

HPE ProLiant MicroServer Gen10 Specifications

General

Product Line	HPE ProLiant
Server Type	MicroServer
Maximum Memory	32 GB
Memory Slots	2
Expansion Slots	1 PCIe 3.0 x8 slot
Form Factor	Ultra Micro Tower
Processor	AMD Opteron X3000 series
Memory Type	DDR4 ECC UDIMM
Storage	4 LFF non-hot plug drive bays
Network	2 x 1GbE ports
Power Supply	200W Non-Hot-Plug, Non-Redundant Power Supply
Dimensions	23.5 x 23 x 25.4 cm
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Management	HPE iLO Standard
RAID Support	HPE Smart Array S100i SR Gen10 (RAID 0, 1, 10)
