Install the non-hot-plug drive cable assembly
Prerequisites
Before you perform this procedure, make sure that you have the following items available:
• T-15 Torx screwdriver
• Non-hot-plug drive cable assembly spare
Procedure

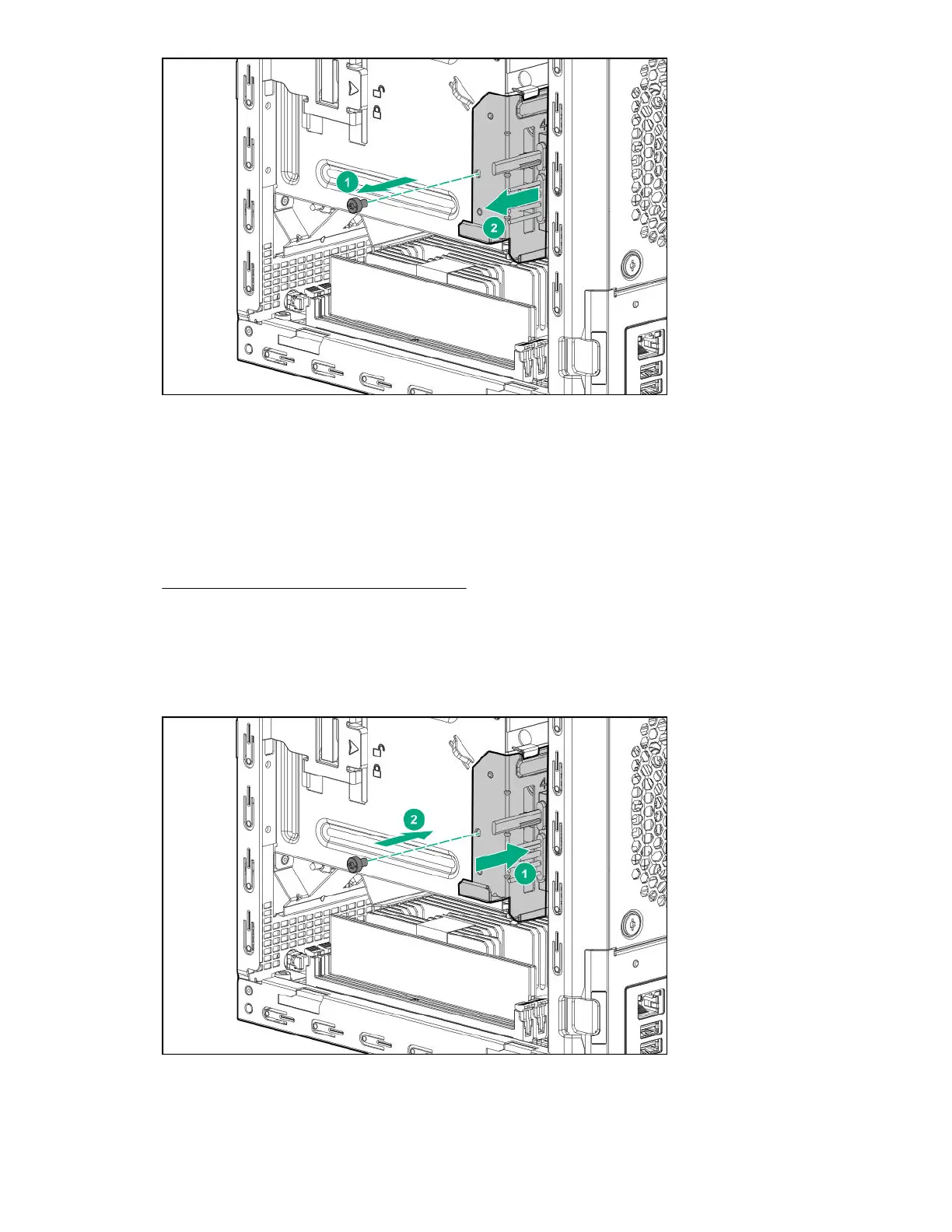

1. Slide the cable assembly into the chassis.
2. Install the cable bracket screw.
3. Route the SATA cable across the opening underneath the top of the chassis, and then down towards
the left side of the system board.
