This expansion slot is open-ended, which enables down-plugging. Down-plugging means a larger-width expansion
board can be installed in a smaller-width connector. For this server, the expansion slot supports low-profile expansion
boards with a physical connector link widths of up to ×16. The board operates at the highest common negotiable link
width specified for the slot.
DIMM slot locations

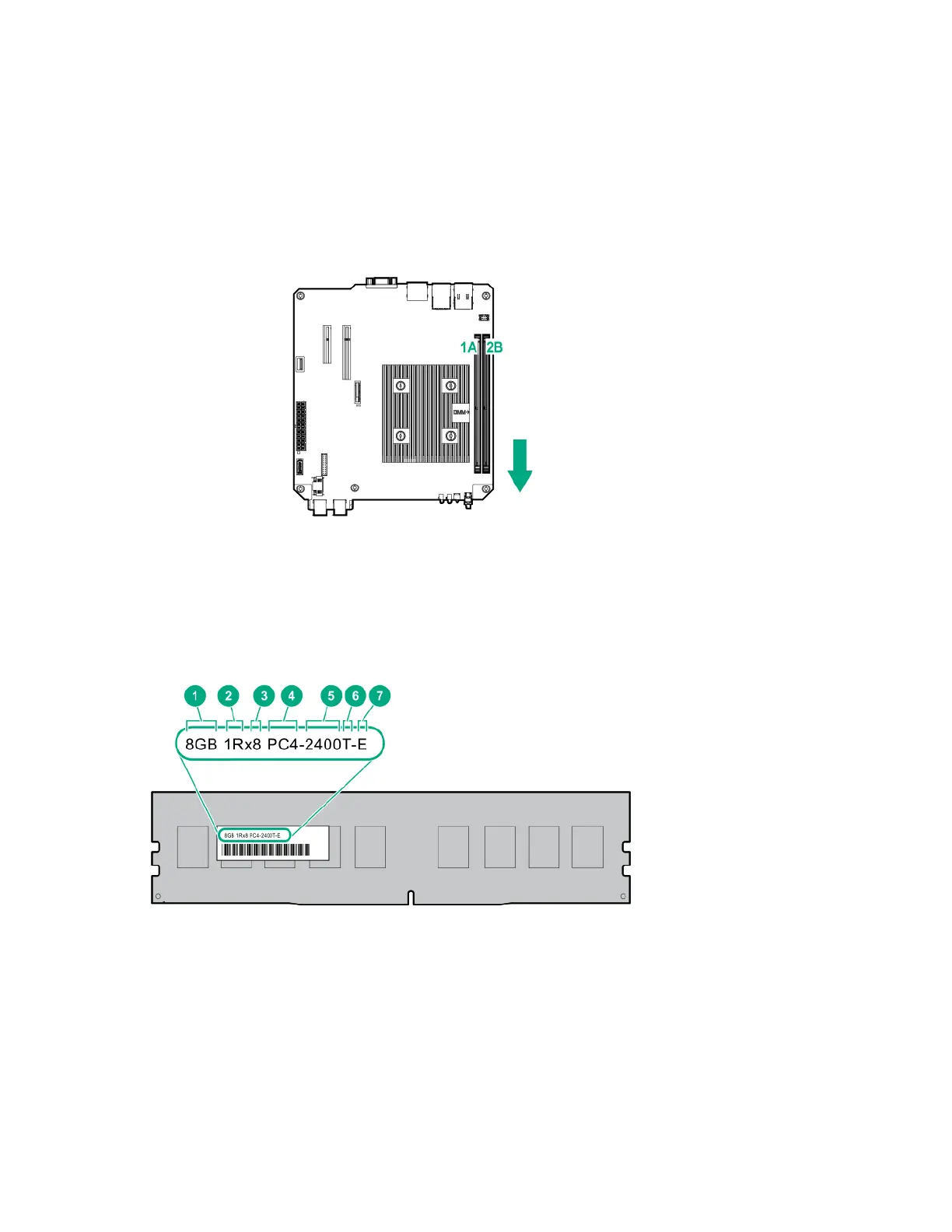

The DIMM slots are numbered 1 and 2. The arrow in the following illustration points to the front of the
server.
DIMM identification
To determine DIMM characteristics, see the label attached to the DIMM. The information in this section
helps you to use the label to locate specific information about the DIMM.
