Procedure

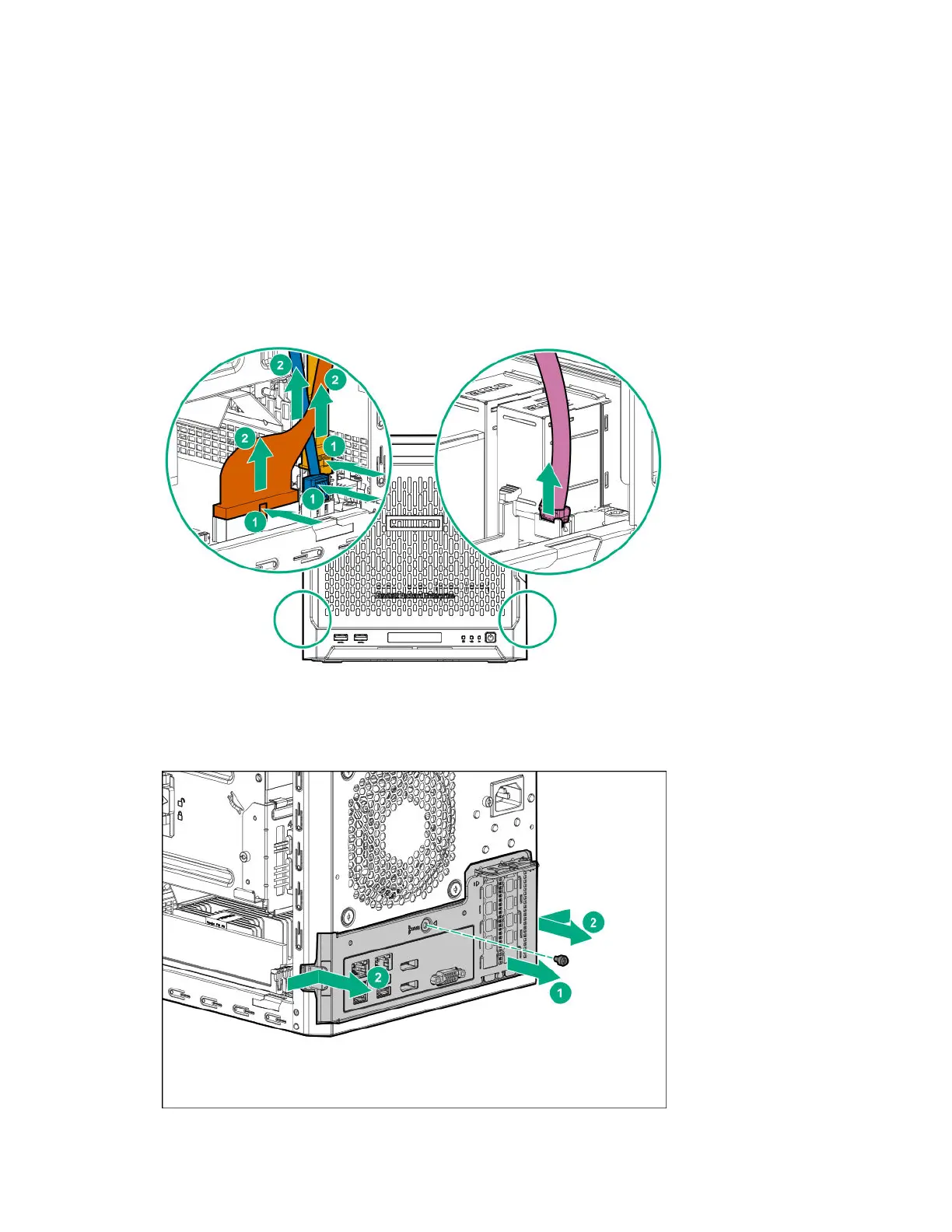

1. To serve as a reference for system cable connections when the system board assembly is installed
back into the server, take a picture of the current system board cable connections.
2. Disconnect the following system cables:
• Power supply cable
• Optical drive or SSD SATA cable (optional)
• LFF/SFF drive SATA cable – This cable can either be connected to the system board or to an
installed Smart Array controller board
• Fan cable
3. Remove the system board assembly screw.
4. Place the finger in the notch on the either side of the system board tray assembly, and then pull out the
assembly.
68 Removal and replacement procedures
