HPE ProLiant MicroServer Gen10 Maintenance And Service Guide

• T-15 Torx screwdriver
• Phillips No. 2 screwdriver
• Optical drive spare
Procedure

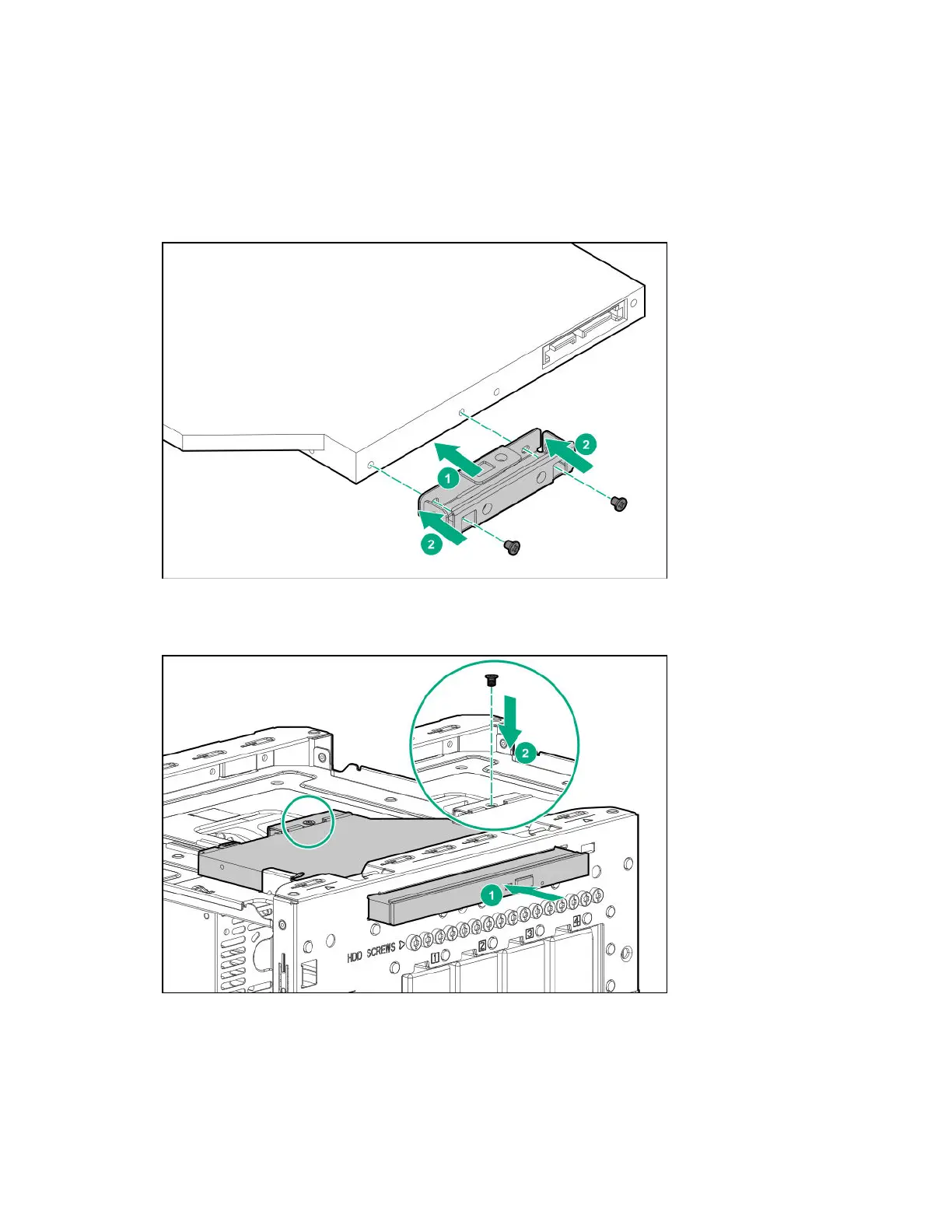

1. Attach the bracket to the optical drive.
2. Slide the optical drive into the media bay.
3. Install the optical drive screw.
4. Connect the common end of the cable to the optical drive.
38 Removal and replacement procedures

HPE ProLiant MicroServer Gen10 Specifications

General

Product Line	HPE ProLiant
Server Type	MicroServer
Maximum Memory	32 GB
Memory Slots	2
Expansion Slots	1 PCIe 3.0 x8 slot
Form Factor	Ultra Micro Tower
Processor	AMD Opteron X3000 series
Memory Type	DDR4 ECC UDIMM
Storage	4 LFF non-hot plug drive bays
Network	2 x 1GbE ports
Power Supply	200W Non-Hot-Plug, Non-Redundant Power Supply
Dimensions	23.5 x 23 x 25.4 cm
Operating System Support	Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server
Management	HPE iLO Standard
RAID Support	HPE Smart Array S100i SR Gen10 (RAID 0, 1, 10)
