FusionModule800 Smart Small Data Center
Installation Guide (Six Fans)
Copyright © Huawei Technologies Co., Ltd.

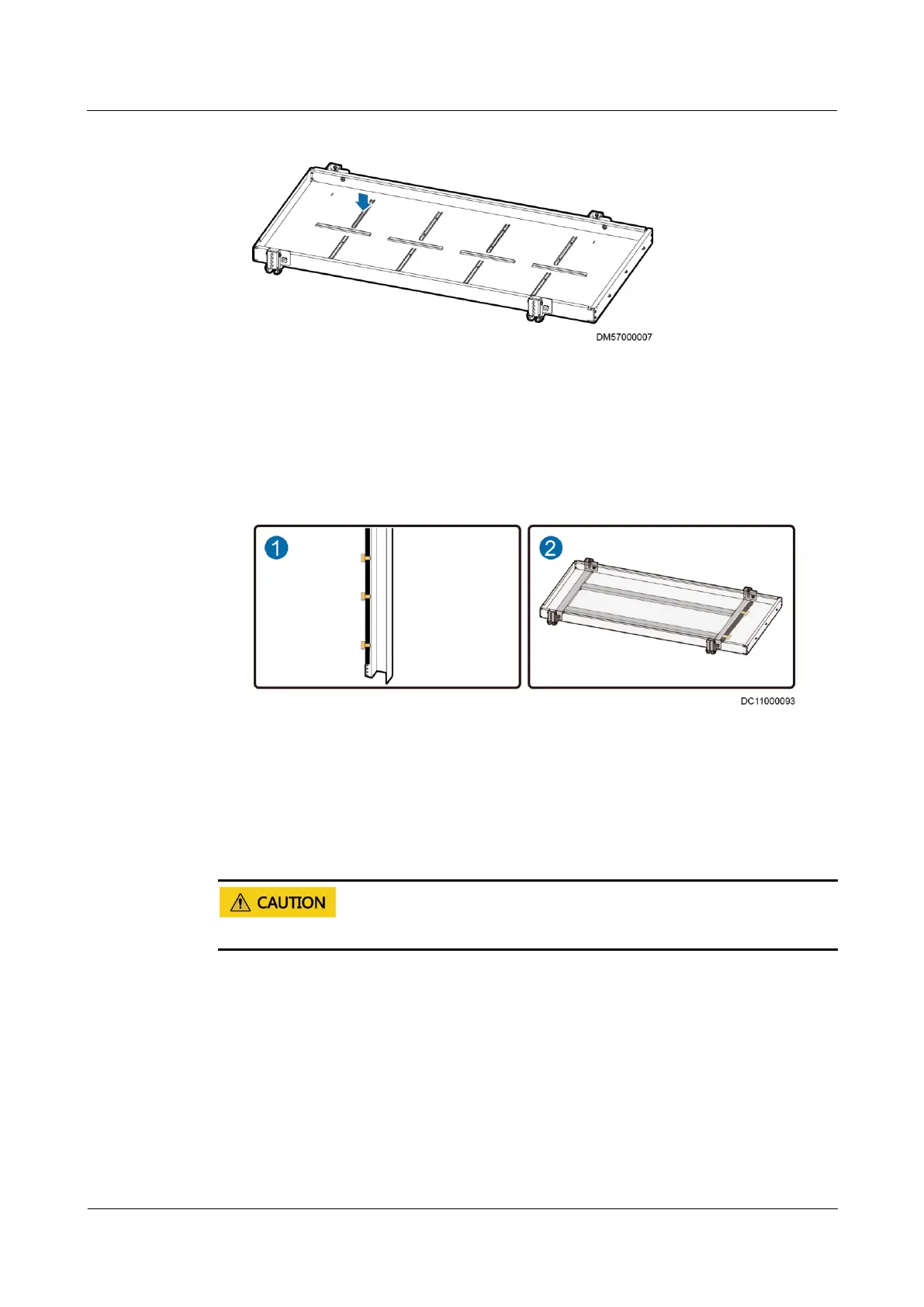

Figure 3-87 Installing a separator
Route and secure cables between layers along the rack rail in the vertical direction, as
shown by (1) in Figure 3-88.
Route and secure cables between layers along the tray supporting beam in the horizontal
direction, as shown by (2) in Figure 3-88.
Figure 3-88 Cable routes
(Optional) When battery cabinets are installed adjacent to each other, remove the upper
side panels from the battery cabinets for routing cables to the corresponding ports.
Connecting Cables to the Circuit Breaker in a Battery Cabinet
Before connecting cables, ensure that the circuit breaker is OFF.
Connect cables to the circuit breaker as follows:
1. Remove the circuit breaker panel, as shown in Figure 3-89.
2. Connect cables to the +, N, and – ports on the UPS, as shown by (1) in Figure 3-90.
3. Connect cables to the +, N, and – terminals on the battery, as shown by (2) in Figure
3-90.
4. (Optional) If two battery strings are configured, connect the cables from the +, N, and –
ports on the UPS of one battery string to the corresponding +, N, and – ports on the UPS
of the other battery string, as shown by (1) in Figure 3-91. Connect cables to the UPS, as
