NetCol5000-A 42 kW Air Cooled In-row Precision Air
Conditioner
User Manual
5 Operation and Maintenance
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

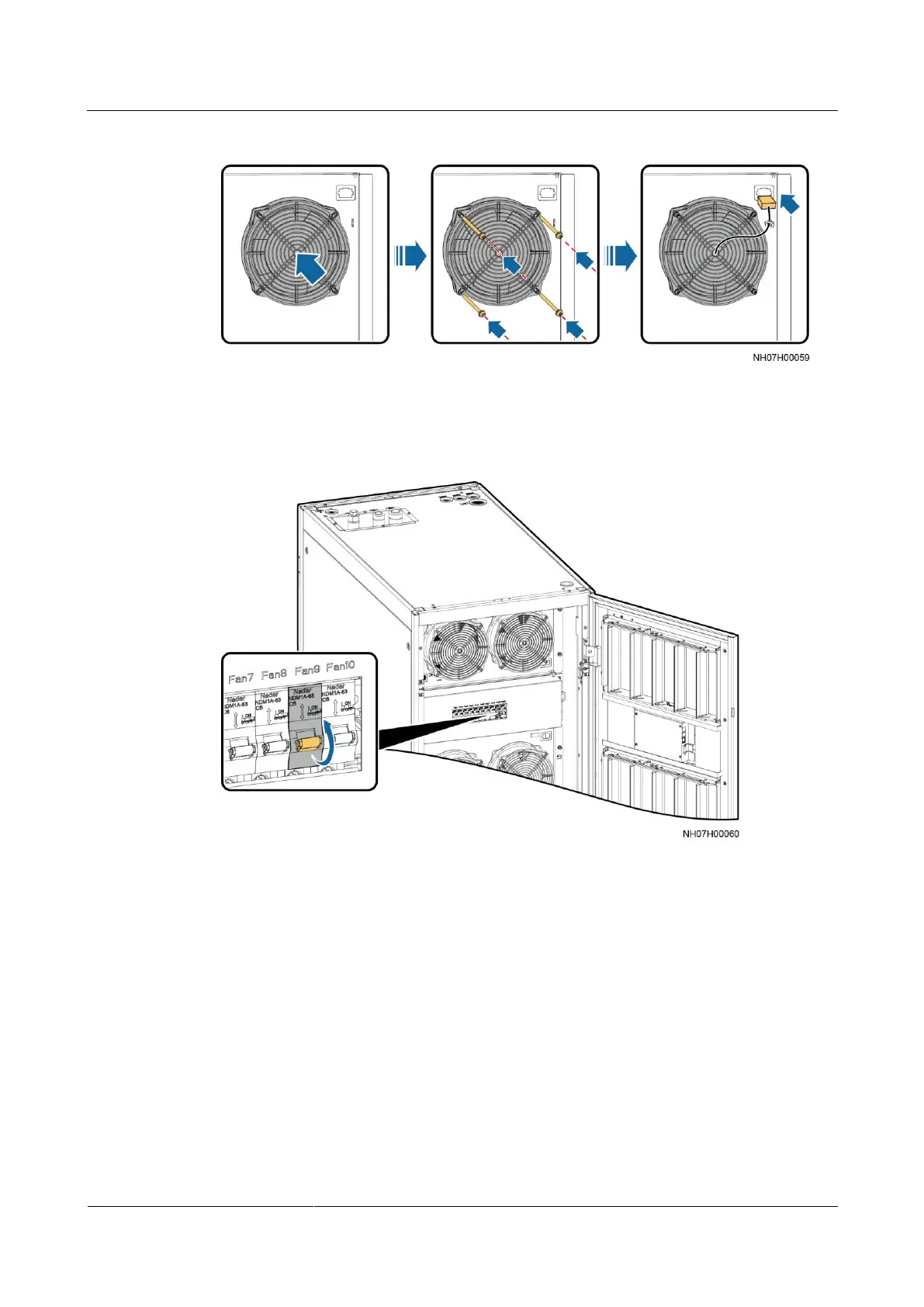

Figure 5-5 Installing a new fan
Step 4 Switch on the circuit breaker for the faulty fan 9, and close the front door.
Figure 5-6 Switching on the circuit breaker for the faulty fan 9
Step 5 Power on the device. On the LCD home screen, choose Maint > Performance Maint, and
clear the indoor fan runtime.
