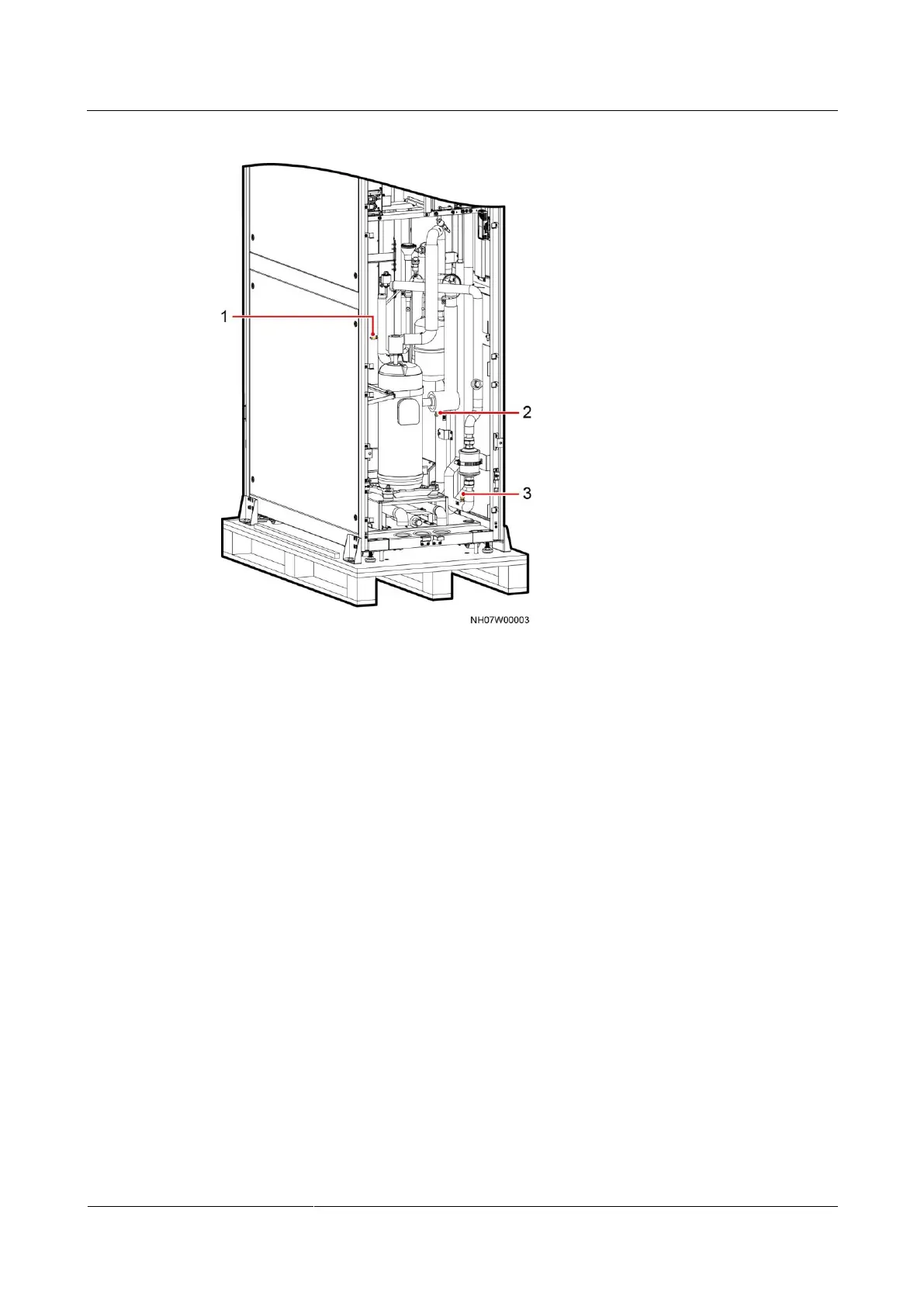

Figure 3-12 Positions of the needle valves
(1) Low-pressure needle
valve
(2) Discharge pipe needle
valve
(3) Liquid pipe needle
valve
----End
3.5 Removing the Transport Fixing Sheet Metals
3.5.1 Removing the Pallet
Procedure
Step 1 Use a 10# socket wrench to remove the eight M6x16 screws securing the fasteners to the
cabinet, and use an 18# socket wrench to remove the four M12x35 screws securing the
fasteners to the pallet, as shown in Figure 3-13.
