NetCol5000-A 42 kW Air Cooled In-row Precision Air
Conditioner
User Manual
3 Installation Guide
Issue 01 (2017-07-27)
35

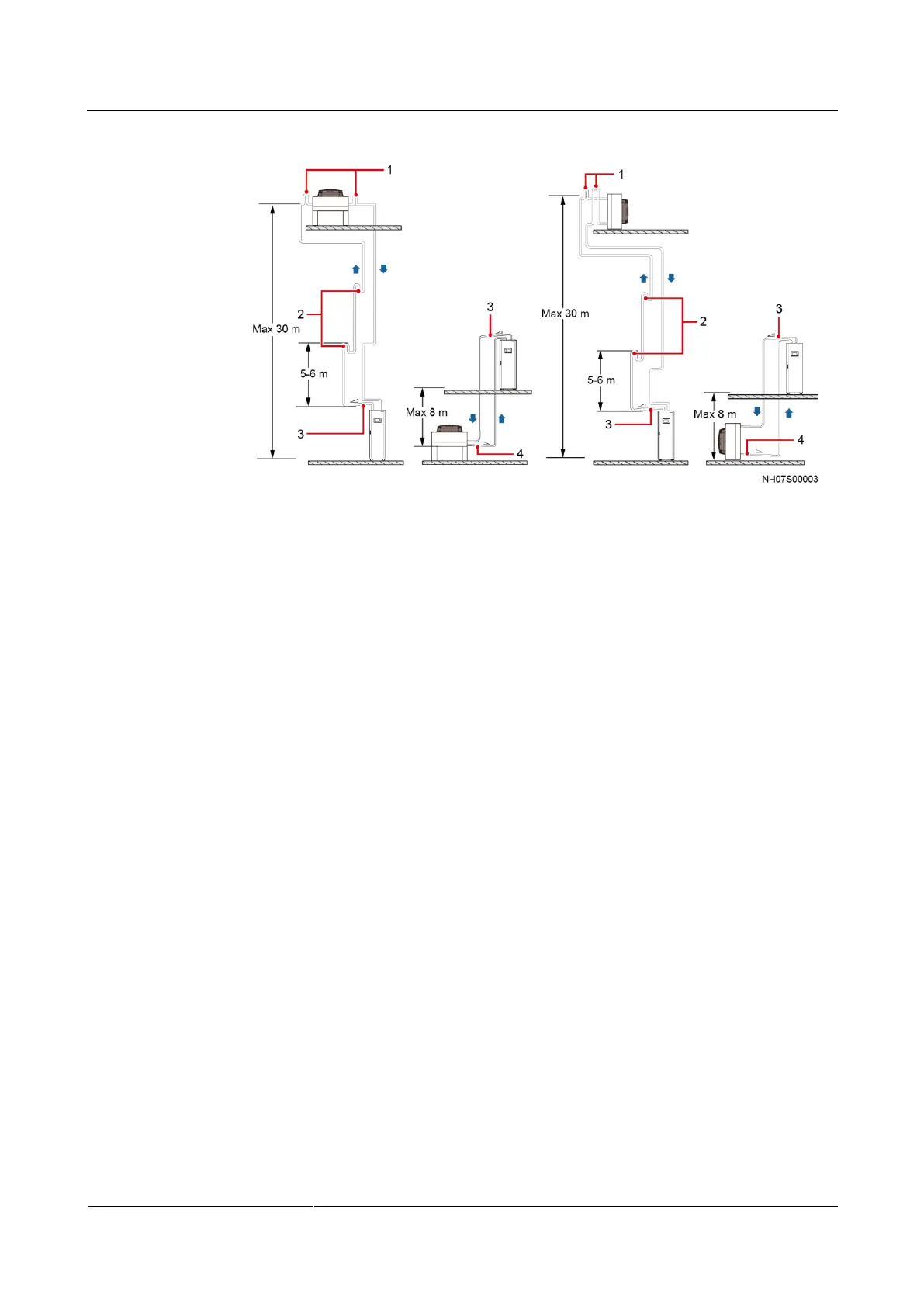

Figure 3-9 Top pipe routing scenario
(1) Inverted trap
(2) Oil trap
(3) Tilted gas pipe
(4) Tilted liquid pipe
3.3 Unpacking
Procedure
Step 1 Inspect the outer packing for signs of damage. If any damage is found, contact the shipping
company immediately.
Step 2 Unpack the product.
1. Remove the straps, top cover, outer packing, cushioning materials, and then plastic film,
as shown in Figure 3-10.
