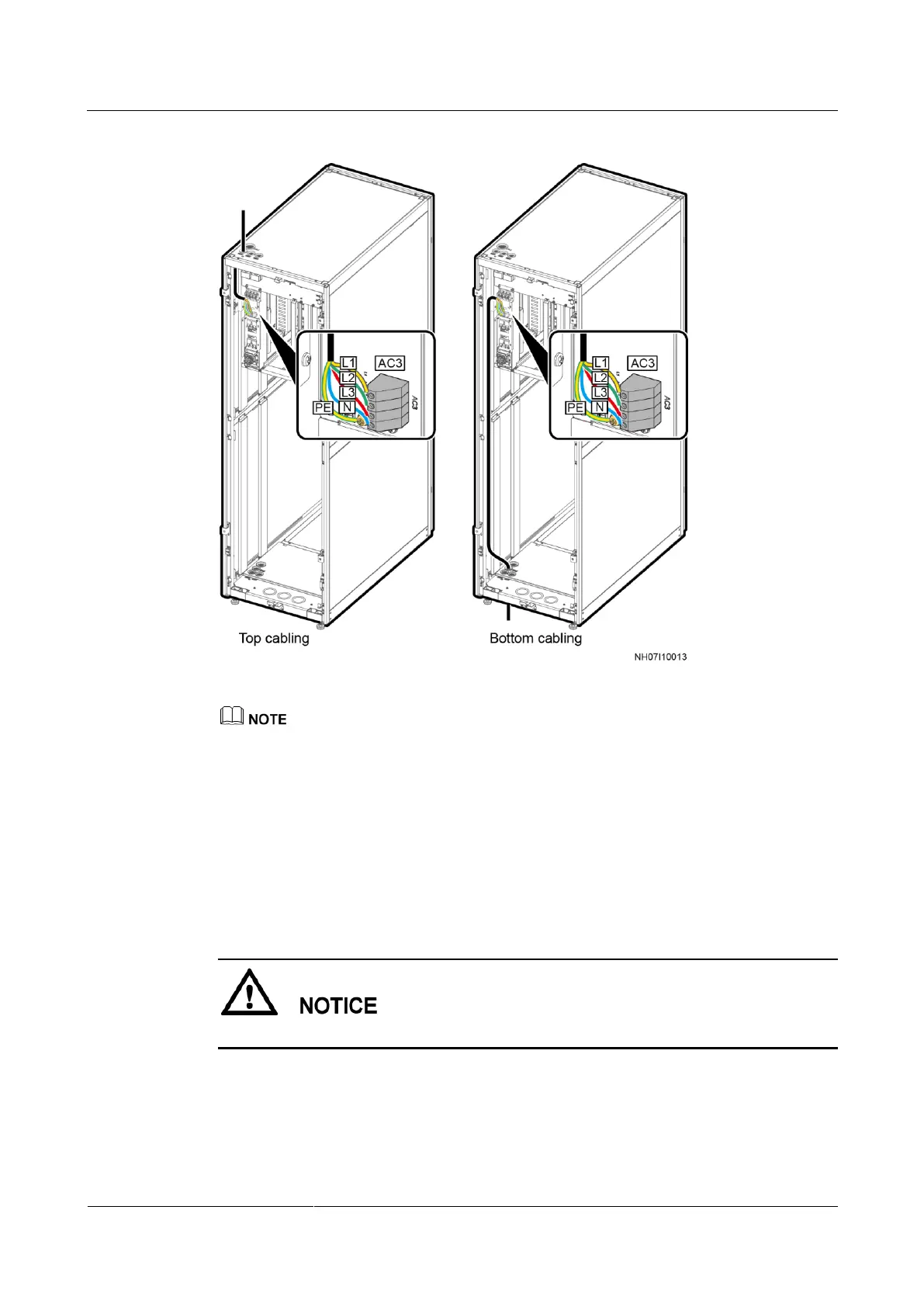

Figure 3-40 Connecting the power cable to an outdoor unit
The figure shows how to connect the outdoor unit power cable AC3 in the single power supply scenario.
The cable connection method is the same when there are two power supplies.
Step 2 Connect the PE cable to the PE bar on the right of the AC3 terminal, as shown in Figure 3-40.
----End
3.11.2 Connecting Signal Cables
Customers can purchase the signal cables from Huawei or prepare their own cables.
Before connecting signal cables, take effective ESD measures.
