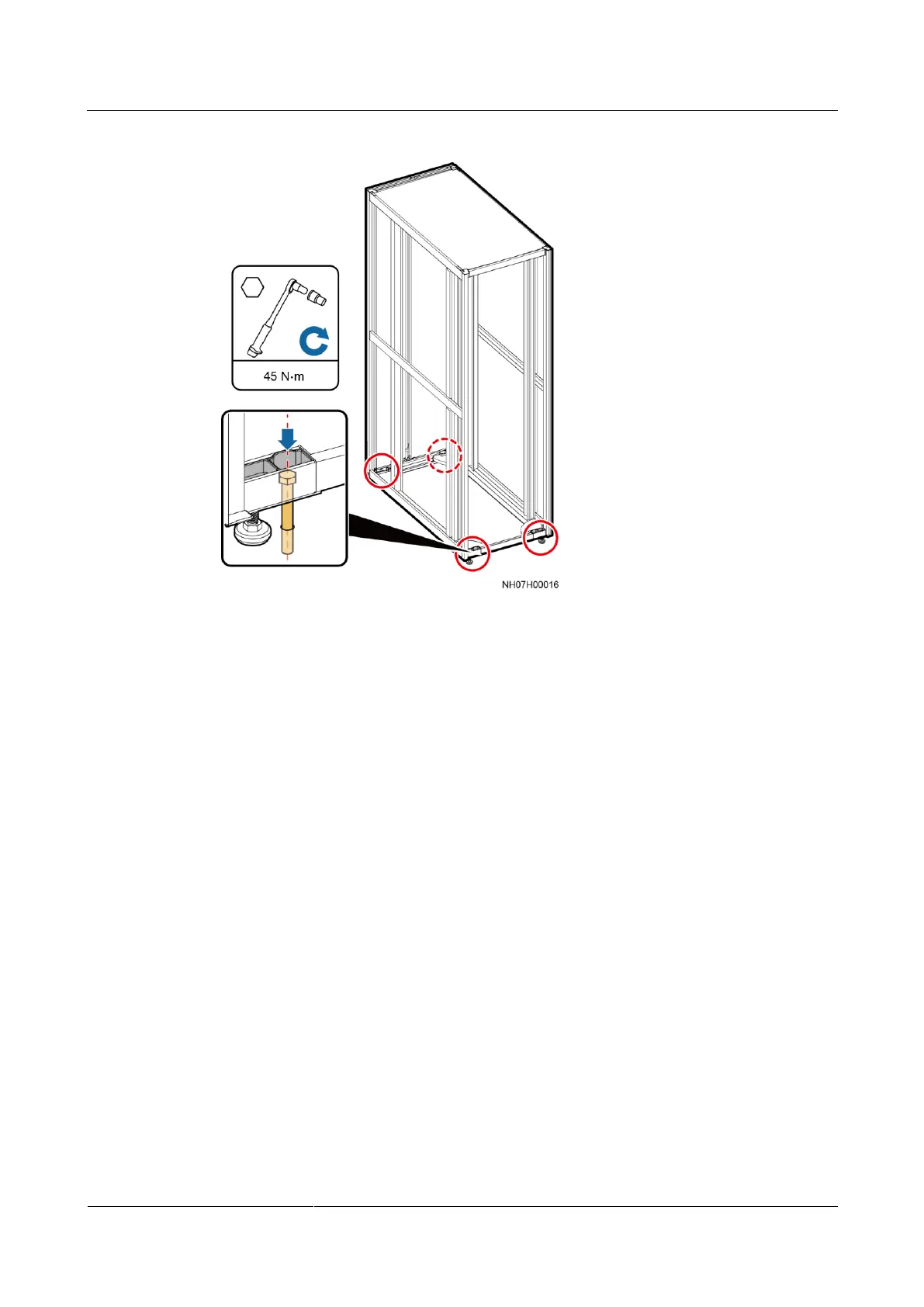

Figure 3-20 Securing a cabinet
----End
3.7.2 Installing the Air Conditioner Cabinet (Without Base)
Procedure
Step 1 Determine the position for installing the cabinet. Mark mounting holes based on the drawings,
as shown in Figure 3-21.
