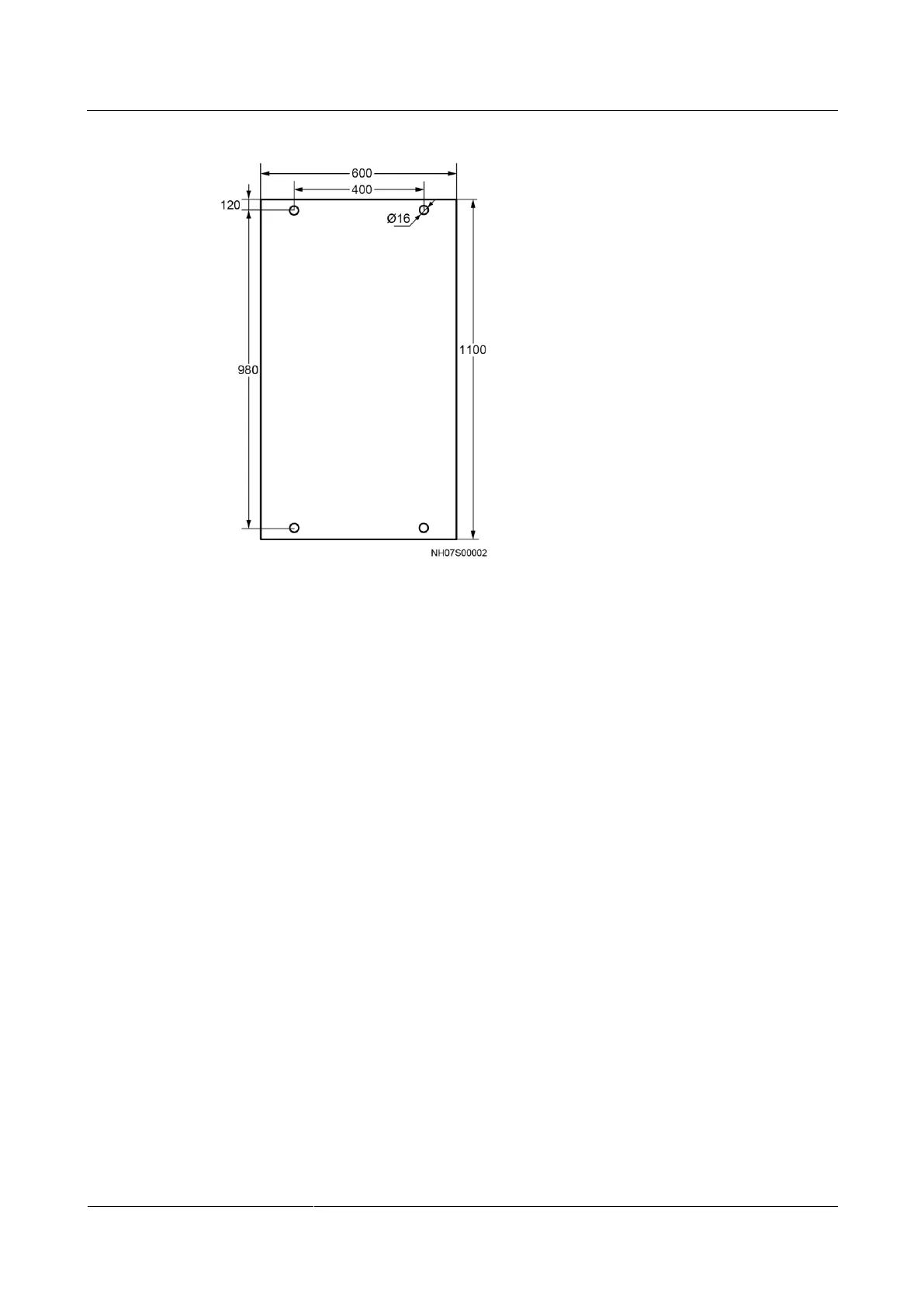

Figure 3-21 Distances between mounting holes (unit: mm)
Step 2 Drill a hole in each mounting hole position using a hammer drill.
Step 3 Move the cabinet over its castors to the installation position.
Step 4 Level and combine the cabinets by referring to Figure 3-18 and Figure 3-19.
Step 5 Secure the air conditioner cabinet to the ground using the M12 bolts in the fittings bag.
