Do not remove the anchor bolts. Otherwise, rework is required if the cabinet height does
not meet requirements.
Anchor bolt adjustment method: Rotate anchor bolts clockwise to raise the cabinet and
rotate them counterclockwise to lower the cabinet. Anchor bolts can be adjusted within a
range of 0–8 mm.
Levelness check standard: Ensure that the cabinet is level in width and depth directions
when leveling the cabinet. Put a level at the bottom of the cabinet in width and depth
directions and check that the air bubble is in the middle between the two lines marked on
the glass tube, as shown in Figure 3-18.

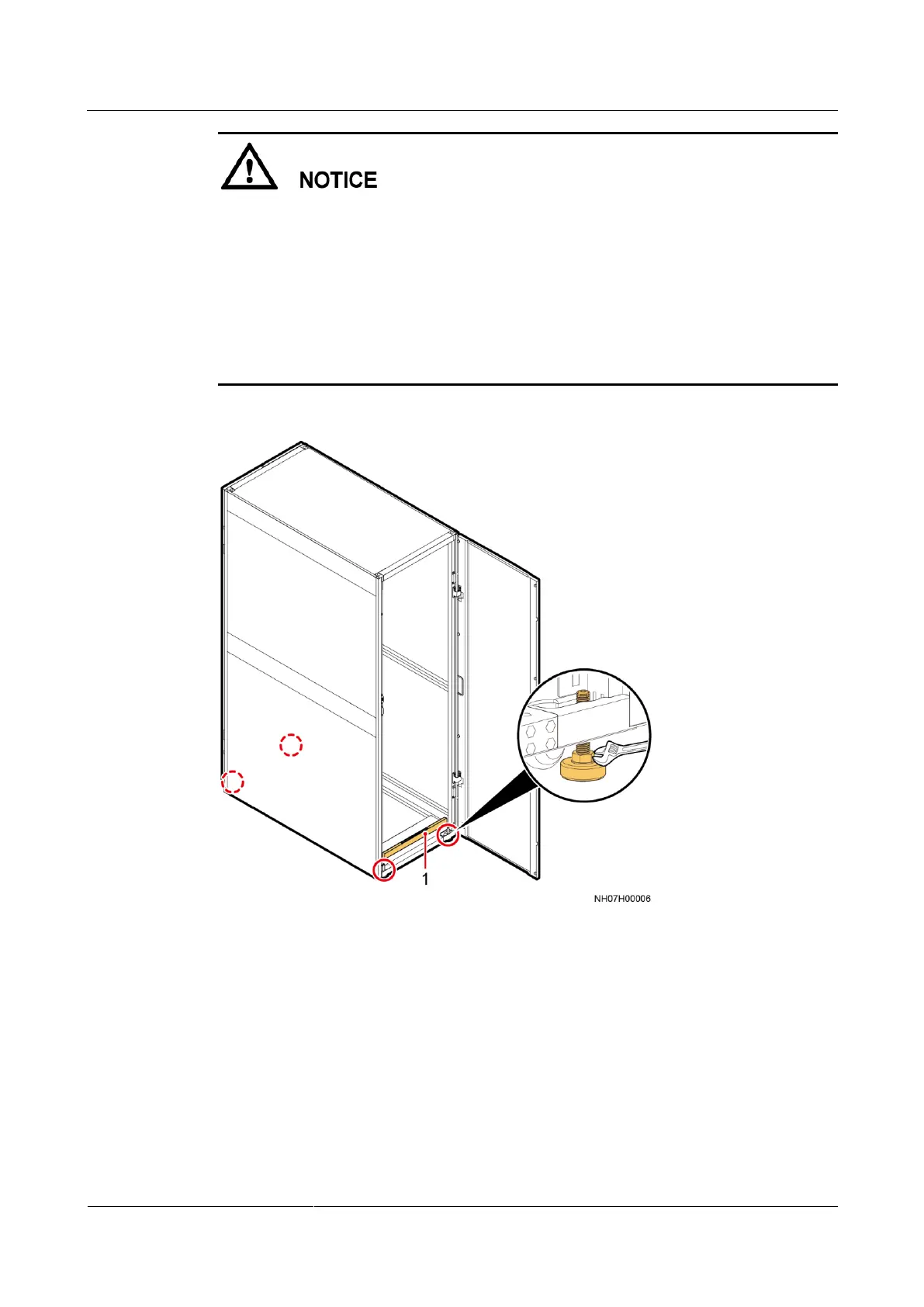

Figure 3-18 Leveling a cabinet
Step 5 (Optional) Combine the cabinets, as shown in Figure 3-19.
1. Remove the M5 tapping screws that secure the connecting kit and then remove the
connecting kit.
2. Remove the M4 screw assembly from the position for combining cabinets.
3. Combine the adjacent cabinets by installing the connecting kit and M4 screw assembly at
the combination positions on the front and rear doors of the cabinets.
