Making cable holes on the floor is required only when the cables or pipes are routed from
the bottom and there is an ESD floor under the air conditioner.
Drill holes based on the actual situation. Avoid drilling unnecessary holes from which
mice may enter into equipment and damage the equipment.

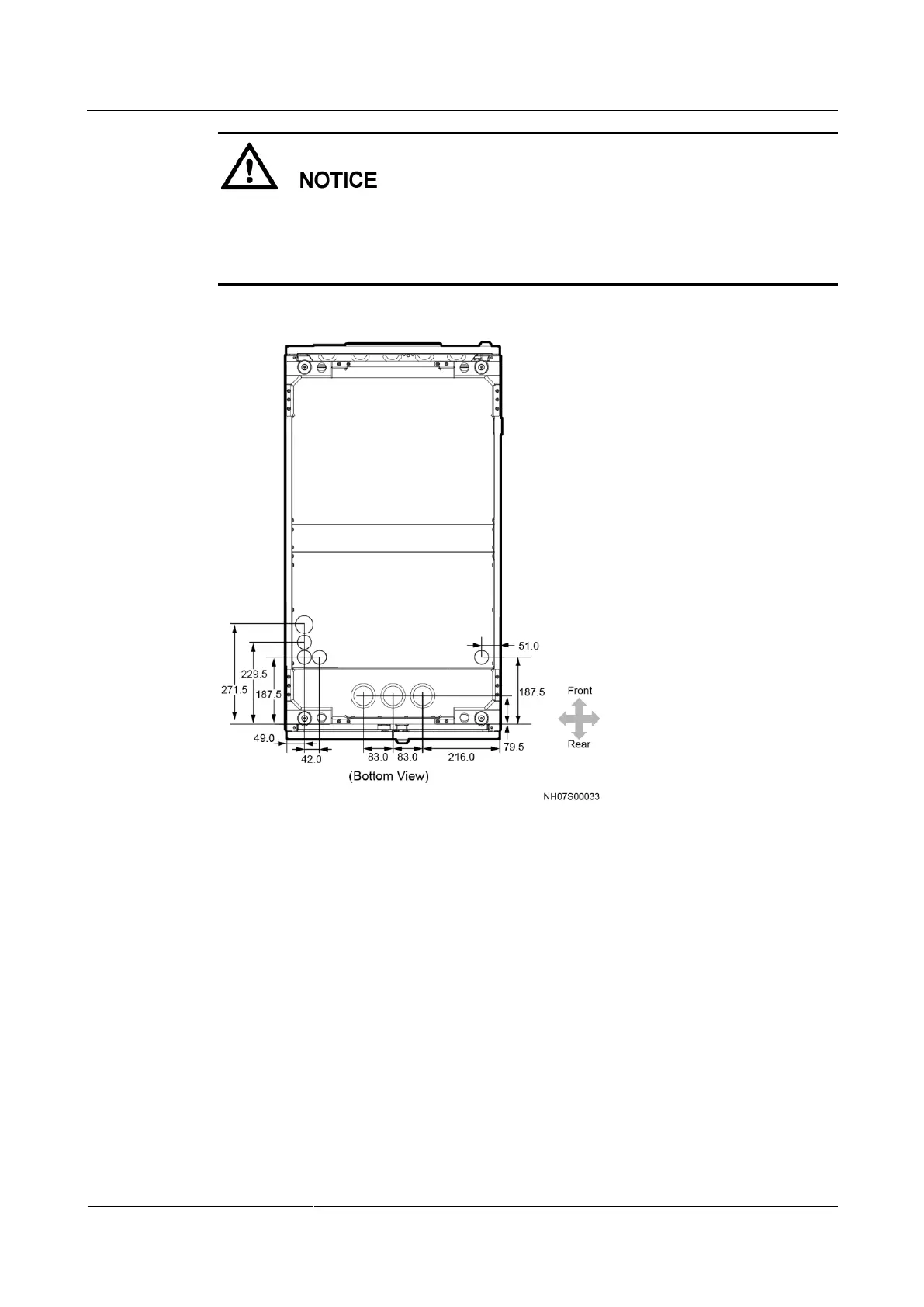

Figure 3-17 Positions of holes at the cabinet bottom (unit: mm)
Step 3 Place a cabinet onto the base and adjust the cabinet position to ensure that the mounting holes
in the cabinet and base are aligned with each other.
Step 4 Level the cabinet using an adjustable wrench, as shown in Figure 3-18.
Before leveling the cabinet, use a measuring tape to check that the vertical distance between
the top of the cabinet and the floor is 2000 mm (+3 mm) for a 2000 mm high cabinet or 2200
mm (+3 mm) for a 2200 mm high cabinet. Ensure that the cabinet is level using a level.
