NetCol5000-A 42 kW Air Cooled In-row Precision Air
Conditioner
User Manual
2 Product Description
Issue 01 (2017-07-27)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
9
2.2 Product Overview
2.2.1 Appearance

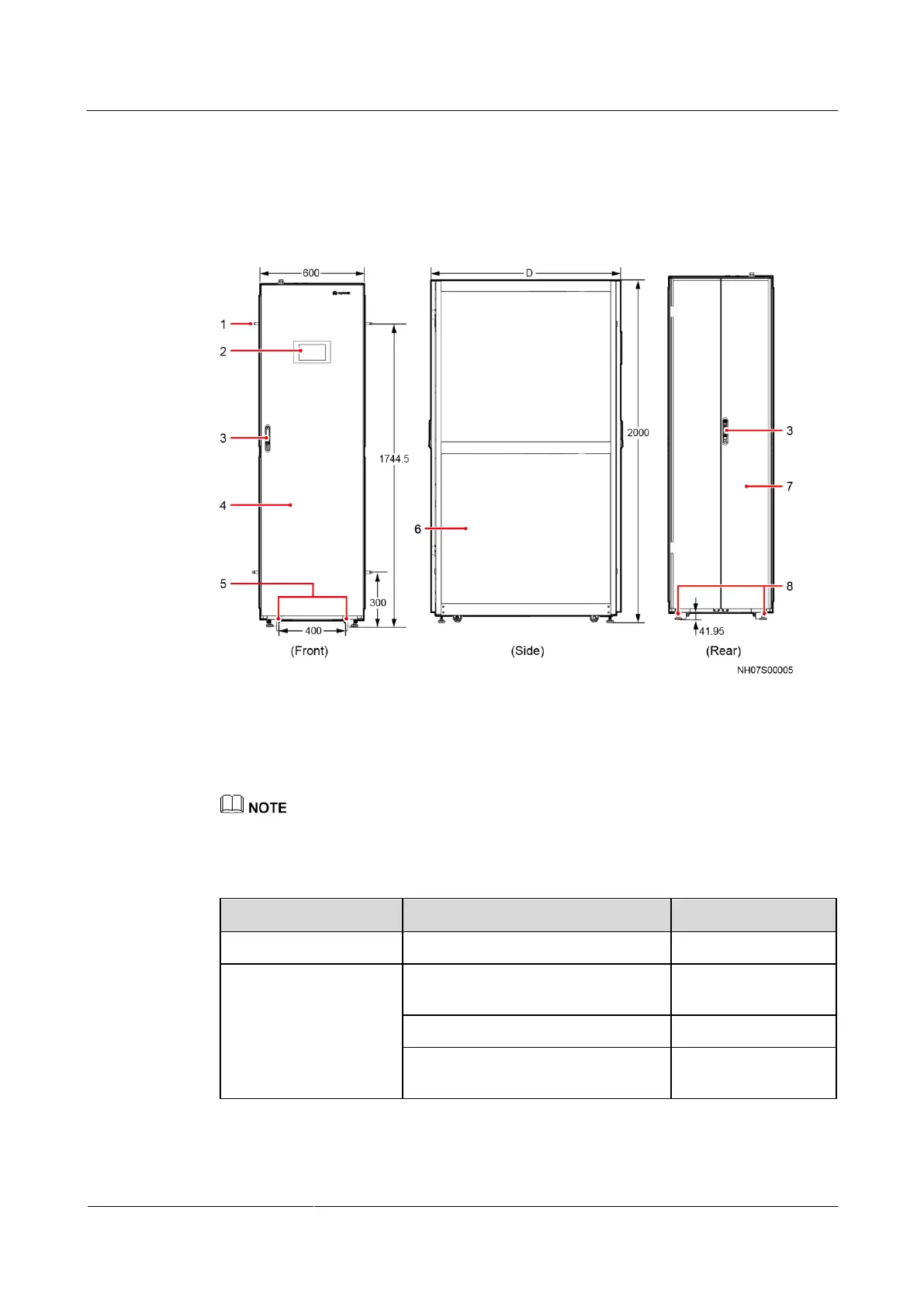

Figure 2-2 Dimensions (unit: mm)
(1) Cabinet connecting kit
(2) Controller panel
(3) Door lock
(4) Front door
(5) Mounting hole
(6) Side panel
(7) Rear door
(8) Anchor
D in the figure stands for the cabinet depth, which can be 1100 mm or 1200 mm. Table 2-1 shows the
available cabinet dimensions.
Table 2-1 Dimensions
Dimensions
H x W x D (mm)
Expansion Method
Standard dimensions
2000 x 600 x 1100
-
Expanded dimensions
2000 x 600 x 1200
Install an enclosure
frame.
2200 x 600 x 1100
Install a top frame.
2200 x 600 x 1200
Install an enclosure
frame and a top frame.
