B Cooling Component Layout

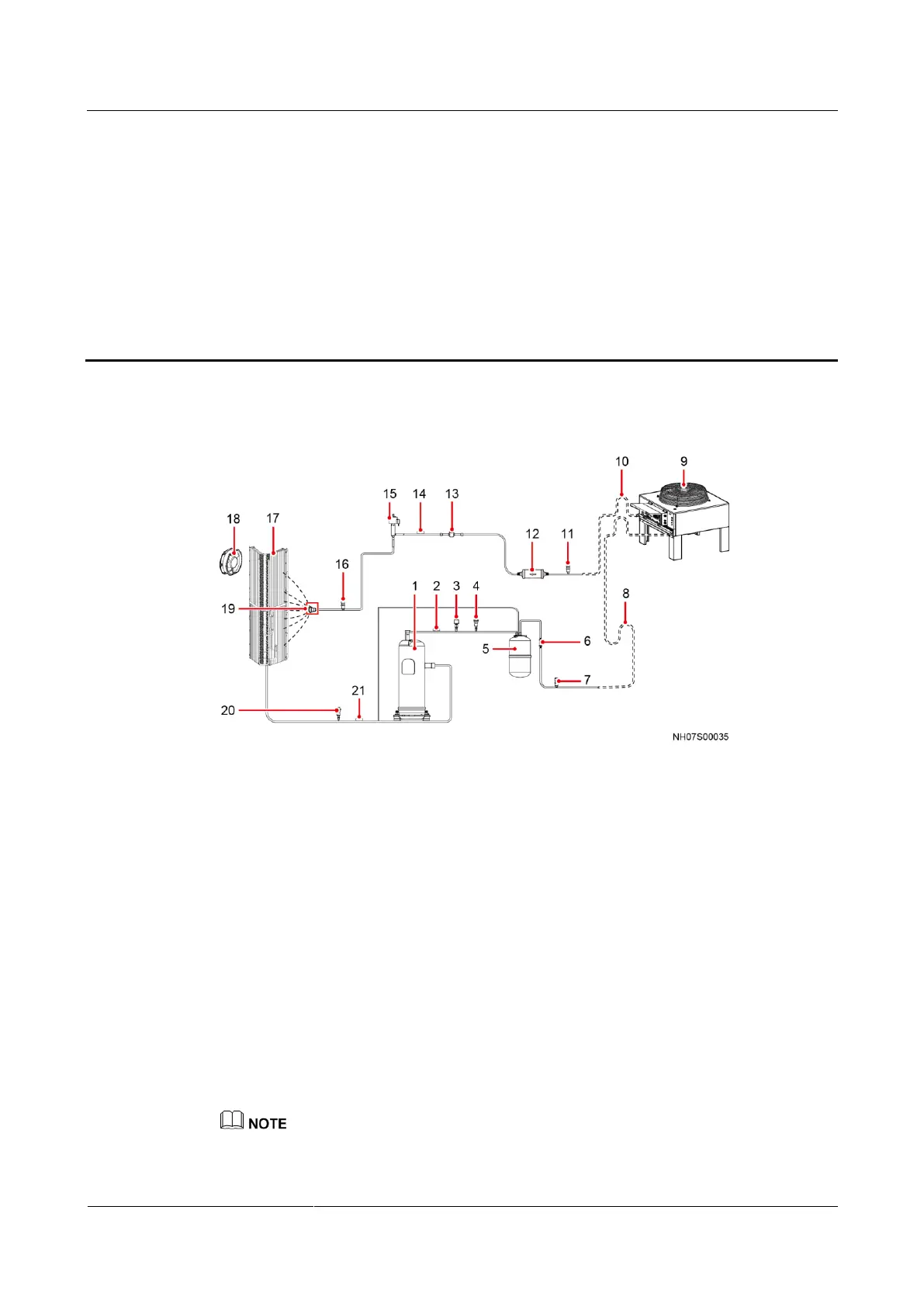

Figure B-1 Cooling component layout
(1) Compressor
(2) Discharge temperature
sensor
(3) High pressure switch
(4) High pressure sensor
(5) Oil separator
(6) Check valve
(7) Exhaust pipe needle
valve
(8) Oil trap
(9) Outdoor unit
(10) Inverted U-shaped trap
(11) Liquid pipe needle valve
(12) Dryer filter
(13) Sight glass
(14) Liquid pipe temperature
sensor
(15) Electronic expansion
valve
(16) Low-pressure needle
valve
(17) Evaporator
(18) Indoor fan
(19) Distributor
(20) Low pressure sensor
(21) Suction temperature
sensor
The pipes shown in real lines in Figure B-1 are installed by Huawei before delivery and the pipes shown
in dotted lines in Figure B-1 are installed onsite (by technical personnel).
