NetCol5000-A 42 kW Air Cooled In-row Precision Air
Conditioner
User Manual
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

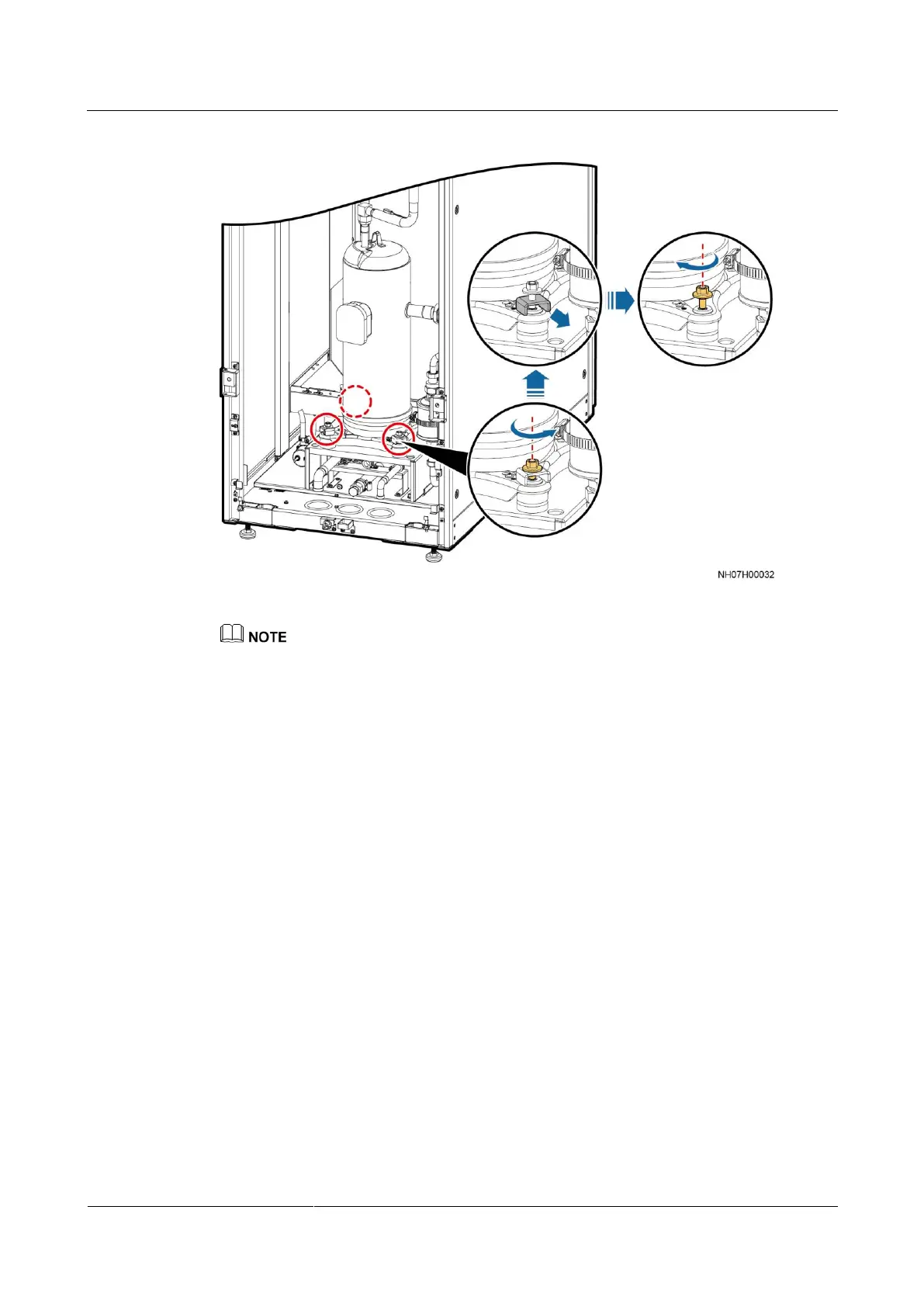

Figure 3-14 Removing the transport fasteners from the compressor
Do not remove the bolts directly.
Put away the removed transport fasteners so that you can reinstall them if the indoor unit is to be
transported again in the container scenario.
Step 2 Remove the transport fasteners.
Step 3 Tighten the bolts on the compressor again to a torque of 12 N•m.
----End
3.6 Install Process
Figure 3-15 shows the process for installing an indoor unit.
