Huawei NetCol5000-A - Installing Indoor Units; Installing the Air Conditioner Cabinet (with Base)

NetCol5000-A 42 kW Air Cooled In-row Precision Air
Conditioner
User Manual
3 Installation Guide
Issue 01 (2017-07-27)
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
41

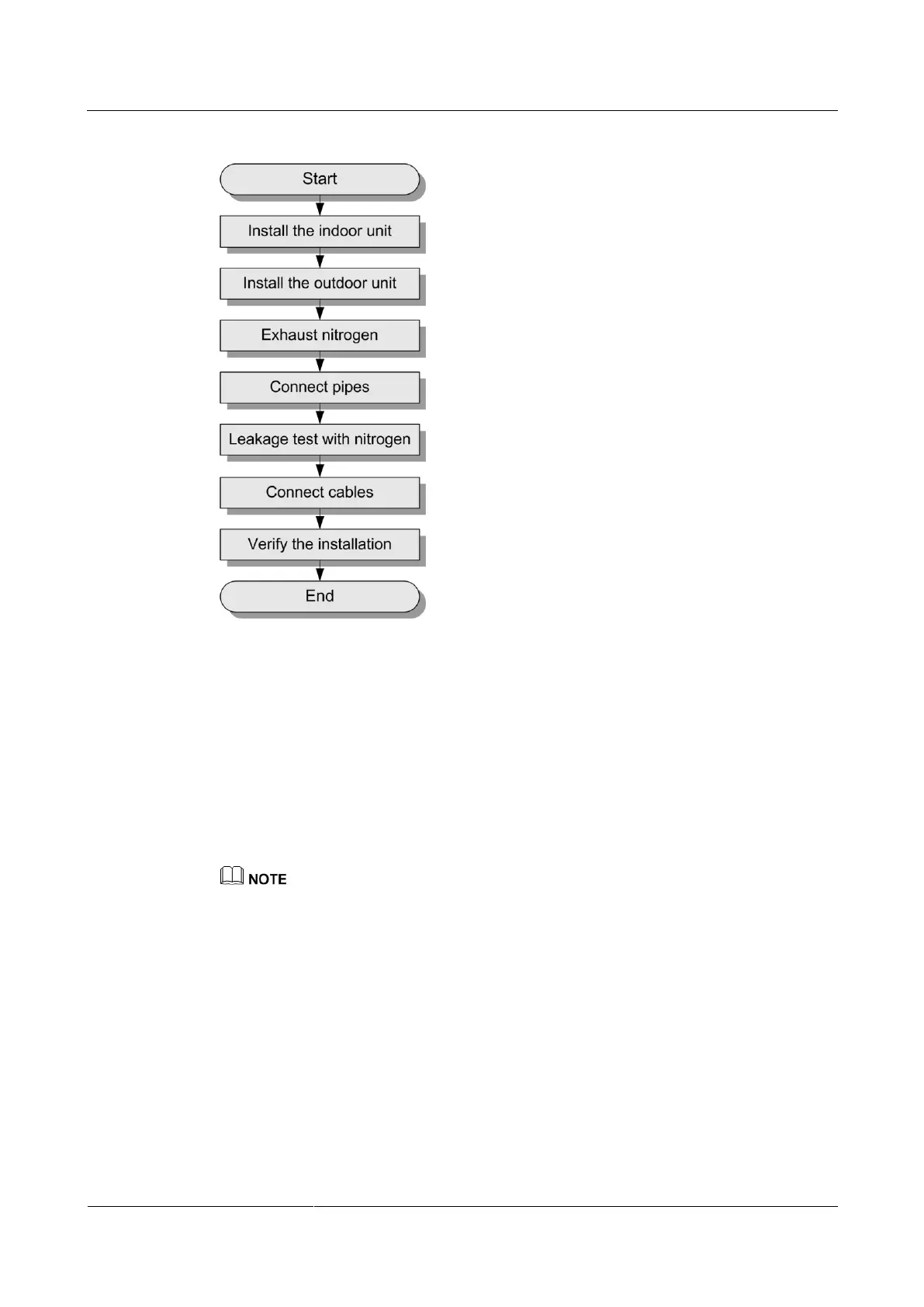

Figure 3-15 Process for installing an indoor unit
3.7 Installing Indoor Units
3.7.1 Installing the Air Conditioner Cabinet (with Base)
Procedure
Step 1 (Optional) Make the base.
If the base is not need to make onsite, skip this step.
