NetCol5000-A 42 kW Air Cooled In-row Precision Air
Conditioner
User Manual
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

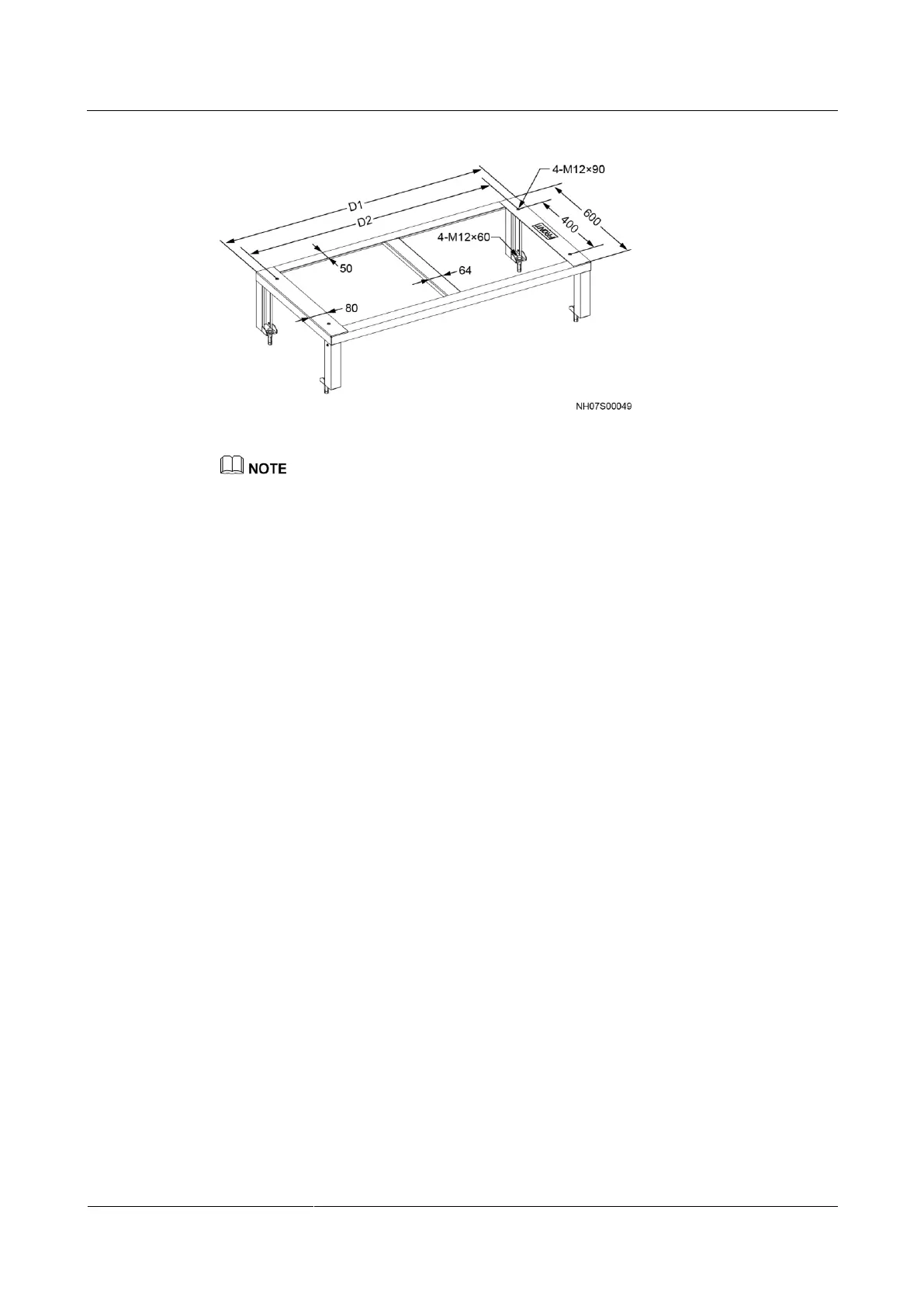

Figure 3-16 Base (Unit: mm)
Shock absorption bars (EPDM rubber, 5 mm thick) are need to install between the ground and the
base.
1100 mm depth: D1 = 1100 mm, D2 = 980 mm. 1200 mm depth: D1 = 1200 mm, D2 = 1080 mm.
You are advised to use angle steel, square steel or channel steel. Width of 50 mm and thickness of 3
mm to 5 mm is recommended.
When the width of angle steel is more than 50 mm, it is interfering with the cable routing holes. Cut
out the part on the angle steel to avoid interfering. If the width is less than or equal to 50 mm, skip
this step.
Control the welding process and avoid excessive error.
The M12 bolt used for securing the cabinet to its base must be at least 80 mm long.
The base bearing capacity must be at least 2 t.
Connect adjacent bases in parallel using bolts. Ensure that each base is secured to the ground
through at least four corners.
Step 2 (Optional) Determine the installation position of the air conditioner. Mark cable holes on the
floor based on Figure 3-17, and make the cable holes.
