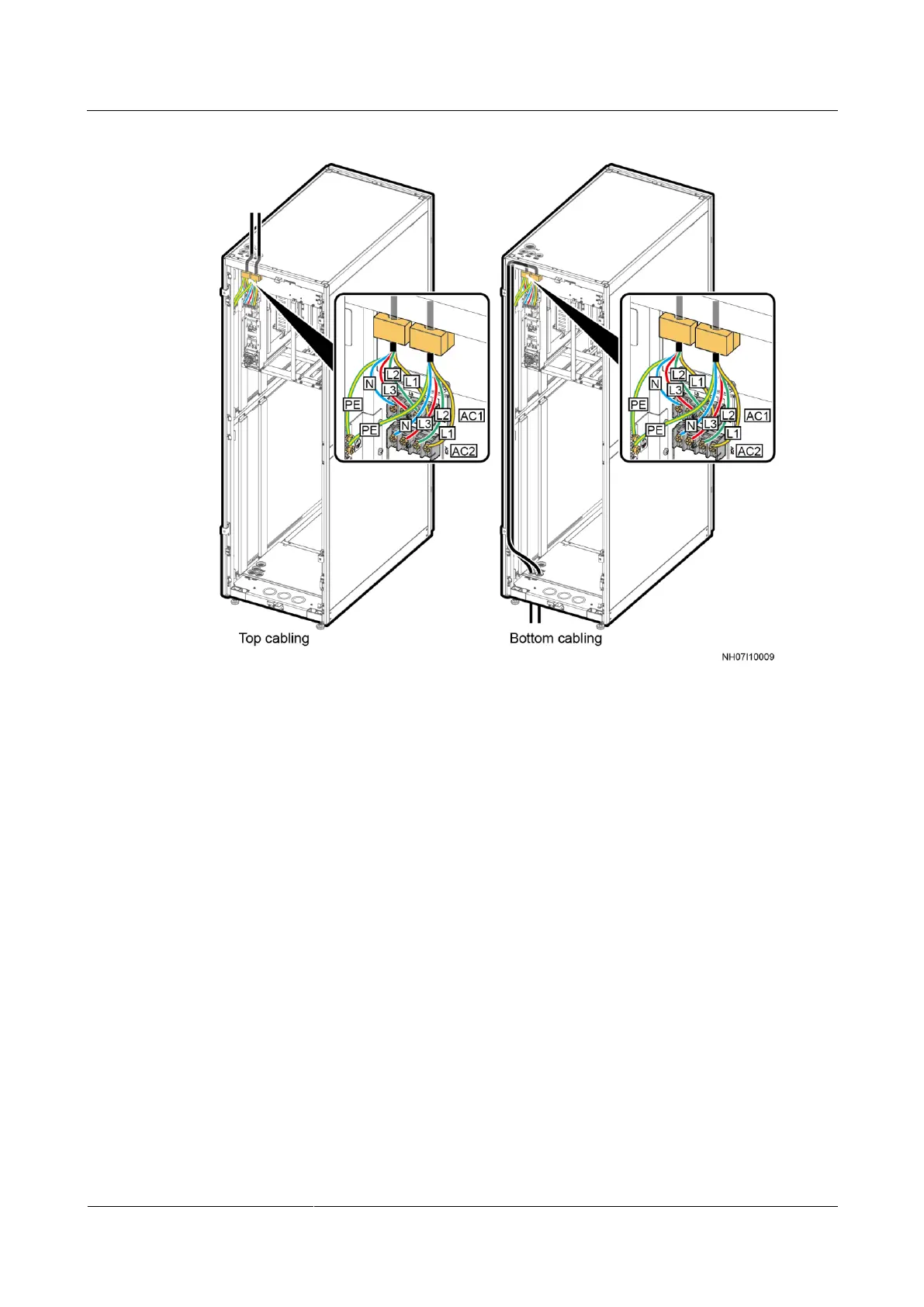

Figure 3-39 Routing cables for the dual power supplies
Step 2 Connect the PE cable to the cabinet ground bar, as shown in Figure 3-39.
----End
Connecting the Power Cable to an Outdoor Unit
Step 1 Route the outdoor unit power cable through the cabinet cable hole to the L1, L2, L3, and N
ports of the AC3 terminal on the indoor unit.
