NetCol5000-A 42 kW Air Cooled In-row Precision Air
Conditioner
User Manual
Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.

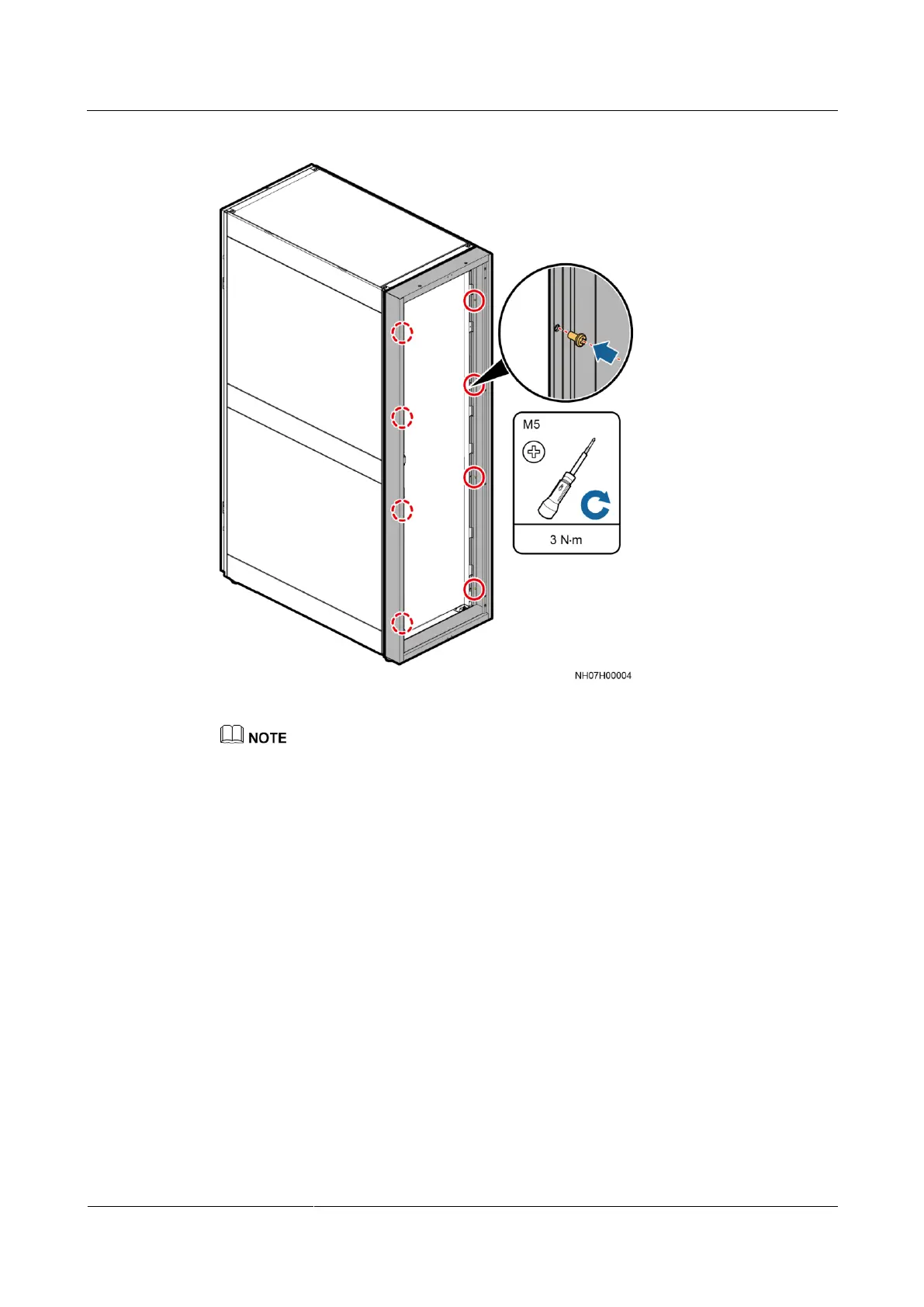

Figure 3-23 Installing an enclosure frame
The positions of the bolt fixing plate, hinges, and connecting plates vary depending on the cabinet
model.
Step 5 Secure one top sealing plate to the enclosure frame using four M5 tapping screws.
