threads: G 1/2 inch, delivered with
the water inlet pipe for the air
conditioner
adapter: G 1/2 inch; connected
to a rigid pipe with outer screw
threads
made of PP-R or
other materials
(4) Pagoda connector: G 1/2 inch;
connected to a pagoda connector
with outer screw threads
(6) Hose: made of
EPDM or other
materials
The object shown in the dotted line box is the water inlet pipe connector with inner screw threads
delivered with air conditioners. The hose clamp as shown by (5) in the preceding figure is provided in
standard configuration. Other parts are not provided and need to be purchased.
Bottom Pipe Routing
Step 1 Straighten the water inlet pipe delivered with the air conditioner, and route it from the inside
to the outside through the water inlet hole at the bottom of the air conditioner.

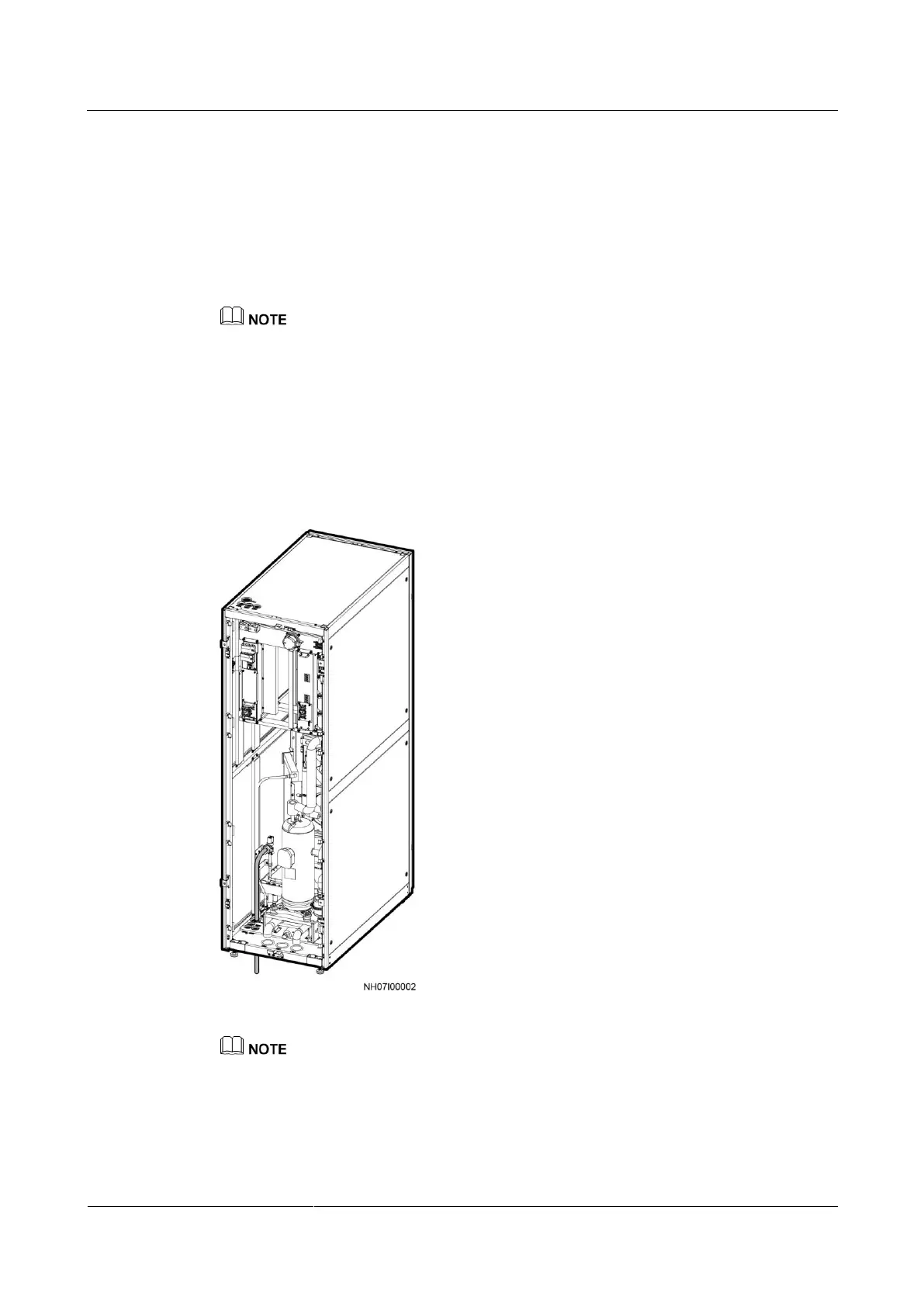

Figure 3-31 Downward routing of the water inlet pipe
The other end is a reserved G 1/2 inch connector with inner screw threads. Connect the other end to a
hose or rigid pipe based on site requirements.
Step 2 Connect the external water inlet pipe based on the actual condition and wrap the pipe with
thermal insulation foam.
----End
