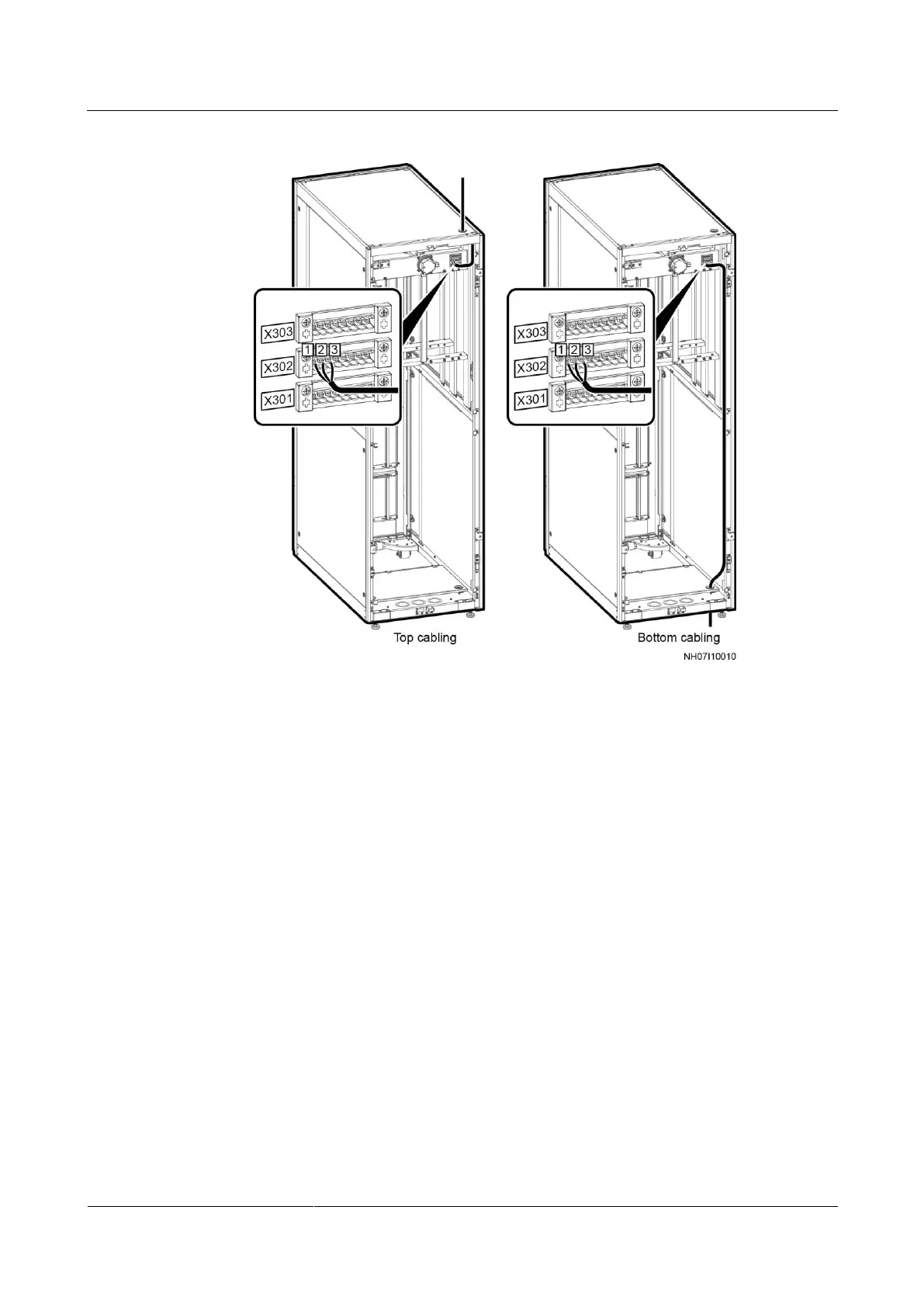

Figure 3-41 Connecting the outdoor unit on/off signal cable (RS485 connection)

(Dry contact connection) Connect one end of the cable to points 1 and 2 on the external
signal port X301 and the other end to ports 1 and 2 on the outdoor unit.
