Hunter X-CORE User Manual

5
WIRELESS RAIN-CLIK
™
COMPONENTS

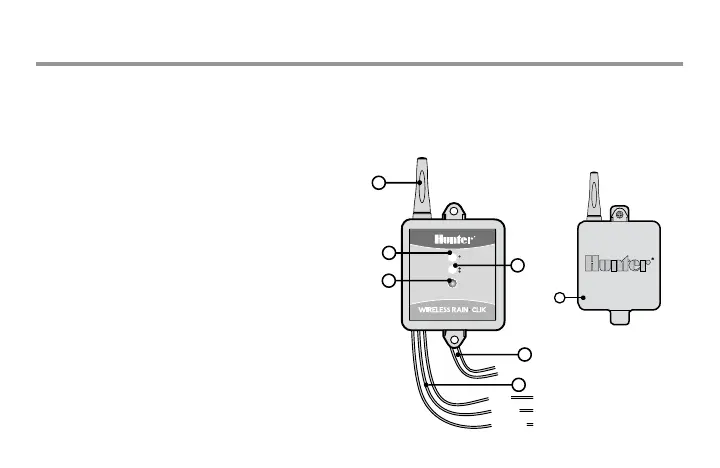

Wireless Rain-Clik
™
Receiver
1. Bypass Button – Allows automatic or manual
watering when the sensor is active.
2. Sensor Bypass LED – Indicates when sensor
has been bypassed.
3. Sensor Status LED – Used to indicate the
status of the sensor.
4. Radio Antenna – Receives a wireless signal
from the transmitter up to 800 ft. (275m) It
is recommend that the antenna be oriented
vertically.
5. AC Power Wires – The two yellow wires
are attached to a 24 VAC source from
the controller.
6. Sensor Wires – The sensor wires are
attached to either the sensor terminals in the
controller or in-line with the valve common
wire.
Blue/White Wires (used for normally closed
sensor applications)
Blue/Orange Wires (used for normally open
sensor applications)
7. Rubber Cover – Used to protect the receiver
when mounted in outdoor locations.
White
Blue
Yellow to 24 VAC Power
Orange
SENSOR STATUS
SENSOR BYPASS
Press to bypass, press
again to re-enable
GREEN = Sensor is dry
RED = Sensor is wet
Red light indicates
sensor is bypassed
RAIN SENSOR BYPASS
Blue/White wires to normally
closed sensor terminals
Orange/White wires to normally
open sensor terminals
2
3
5
6
4
1
7

Hunter X-CORE Specifications

General

Start Times Per Program	4
Max Station Run Time	4 hours
Warranty	2 years
Application	Residential
Mounting	Wall mount
Station Timing	1 minute to 4 hours
Number of Stations	2, 4, 6, or 8
Watering Duration	1 minute to 4 hours
Display	LCD
Stations	2, 4, 6 or 8 stations
Indoor/Outdoor	Indoor or Outdoor
Seasonal Adjustment	Yes
Watering Days	7 days
Rain Delay	Yes
Power Source	24V AC transformer
Battery Backup	Yes
Programs	3
