Hunter X-CORE User Manual

6
MOUNTING THE RECEIVER
Wiring the Receiver to Your Controller
Using the hardware supplied, mount the
receiver to the wall next to the irrigation
controller. It is recommended that the receiver
be installed away from sources of electrical
interference and metal objects to maximize
communication range. Make sure to attach
the rubber cover under the receiver when
installing the receiver in an outdoor location.
Warning: This unit is designed to be installed
in conjunction with 24 VAC circuits only. Do not
use with 110 or 220 VAC circuits.

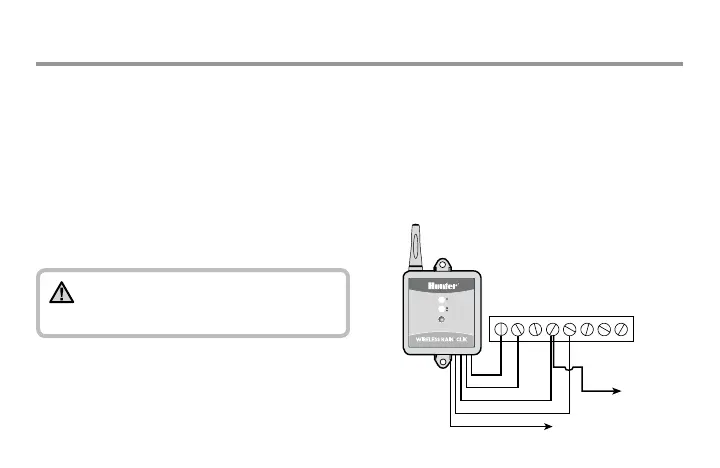

Wiring the Receiver to a Hunter SRC
1. Attach the two yellow wires to the
AC terminals.
2. Attach the blue wire to the RS terminal.
3. Attach the white wire to the C terminal.
4. Attach the valve common wire to the
RS terminal.
O
Used for normally open
sensor applications
R RS C 1 AC AC 2 3
W
B
Y
Y
Common Wire
to all Valves
SENSOR STATUS
SENSOR BYPASS
Press to bypass, press
again to re-enable
GREEN = Sensor is dry
RED = Sensor is wet
Red light indicates
sensor is bypassed
RAIN SENSOR BYPASS

Hunter X-CORE Specifications

General

Start Times Per Program	4
Max Station Run Time	4 hours
Warranty	2 years
Application	Residential
Mounting	Wall mount
Station Timing	1 minute to 4 hours
Number of Stations	2, 4, 6, or 8
Watering Duration	1 minute to 4 hours
Display	LCD
Stations	2, 4, 6 or 8 stations
Indoor/Outdoor	Indoor or Outdoor
Seasonal Adjustment	Yes
Watering Days	7 days
Rain Delay	Yes
Power Source	24V AC transformer
Battery Backup	Yes
Programs	3
