Hunter X-CORE User Manual

10
MOUNTING THE TRANSMITTER
Standard Mounting
Using the screws
provided with your
sensor, mount the
transmitter on any
surface where it
will be exposed
to unobstructed
rainfall, but not
in the path of
sprinkler spray. The
sensor should be
oriented upright
(as pictured), but the swivel bracket can be moved
for mounting on any angled surface. Loosen the
locknut and screw before swiveling the bracket, and
then re-tighten.
Gutter Mounting (Optional)
The sensor gutter
mount can be
purchased as an
optional accessory
for your Wireless
Rain-Clik
™
(order
p/n SGM). The
SGM allows the
transmitter to be
mounted directly
to the edge of
a gutter. Install
the SGM on the transmitter by removing the
metal extension arm supplied with your sensor
and reinstalling the SGM. Position the gutter
mount on the edge of the gutter and twist the
thumbscrew to secure it in place.

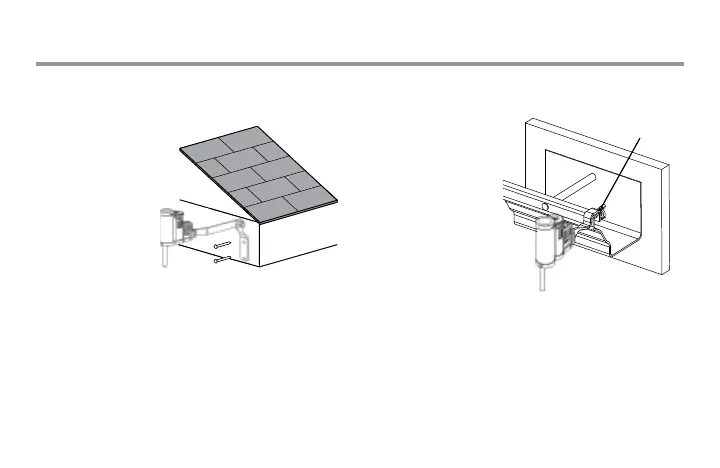

SGM
Standard Mount
Gutter Mount

Hunter X-CORE Specifications

General

Start Times Per Program	4
Max Station Run Time	4 hours
Warranty	2 years
Application	Residential
Mounting	Wall mount
Station Timing	1 minute to 4 hours
Number of Stations	2, 4, 6, or 8
Watering Duration	1 minute to 4 hours
Display	LCD
Stations	2, 4, 6 or 8 stations
Indoor/Outdoor	Indoor or Outdoor
Seasonal Adjustment	Yes
Watering Days	7 days
Rain Delay	Yes
Power Source	24V AC transformer
Battery Backup	Yes
Programs	3
