1.2 GARDENA R100Li, R100LiC,R130Li, R130LiC and R160Li, what is what?

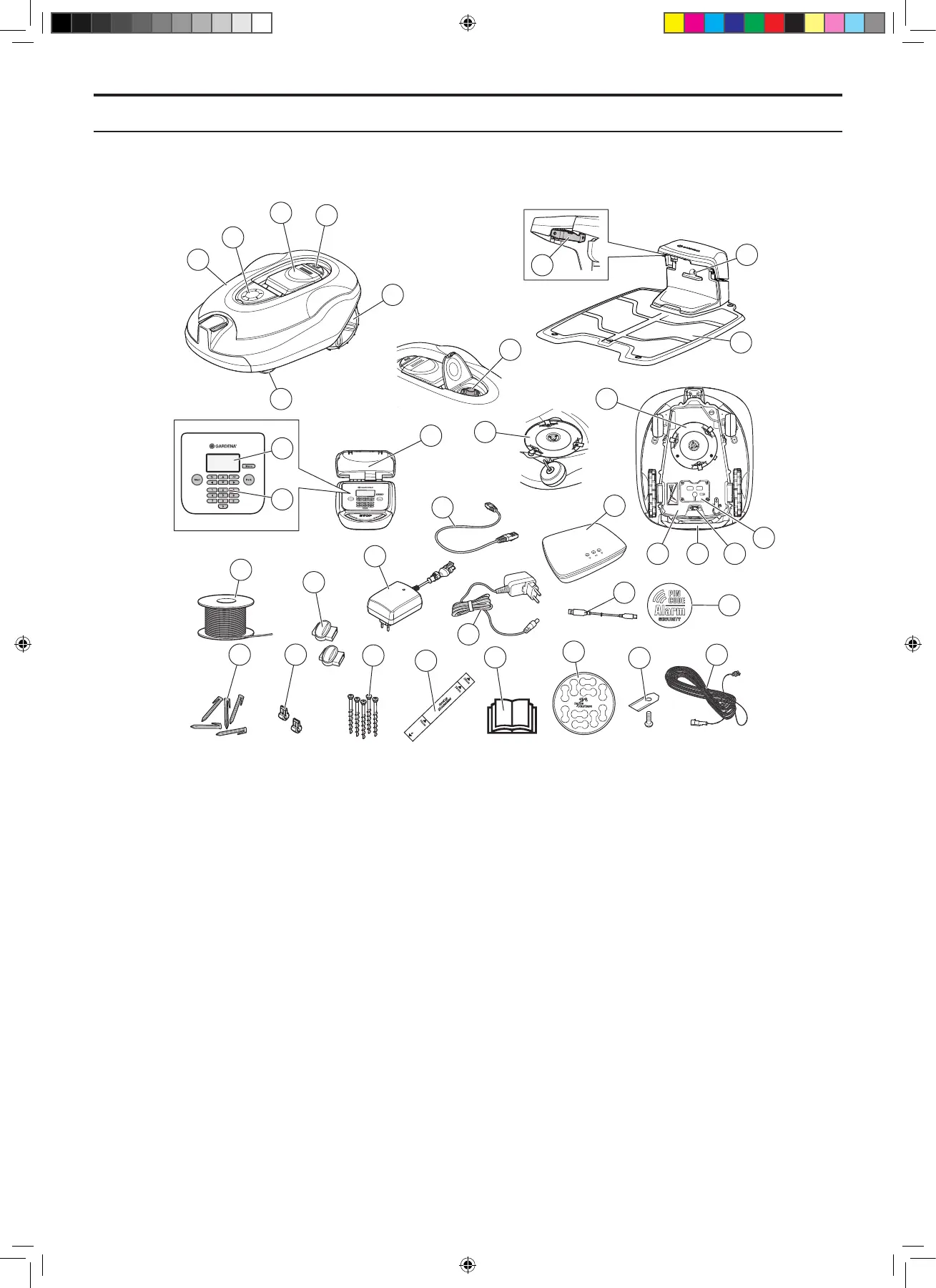

The numbers in the illustration represent:
1. Body
2. Hatch to cutting height adjustment
3. Hatch to display and keypad
4. Stop button/Catch to open the hatch
5. Rear wheels
6. Front wheels
7. Contact strips
8. Cutting height adjustment
9. Charging station
10. LED for operation check of the charging station,
boundary wire and guide wire
11. Rating plate
12. Display
13. Keypad
14. Cutting system
15. Chassis box with electronics, battery and motors
16. Handle
17. Main switch
18. Battery cover
19. Blade disc
20. Power supply (the appearance of the power
supply may differ depending on market)
21. Loop wire for boundary loop and guide wire
22. Couplers for loop wire
23. Pegs
24. Connector for the loop wire
25. Screws for securing the charging station
26. Measurement gauge for help when installing the
boundary wire (the measurement gauge is broken
loose from the box)
27. Operator’s Manual and Quick Guide
28. Cable markers
29. Extra blades
30. Low voltage cable
31. Alarm decal
32. USB cable for Software-Updates
33. Smart System Gateway (only for GARDENA
R100LiC, R130LiC)
34. Smart System Gateway LAN-cable (only for
GARDENA R100LiC, R130LiC)
35. Smart System Gateway power supply (only for
GARDENA R100LiC, R130LiC)
