5.12 Replacing the main switch
1. Disassemble the body. See 5.2.1
Disassembling the body on page 59.
2. Disassemble the chassis. See 5.2.2
Disassembling the chassis on page 59.
3. Disassemble the main circuit board. See
5.8 Replacing the main circuit board on
page 65.

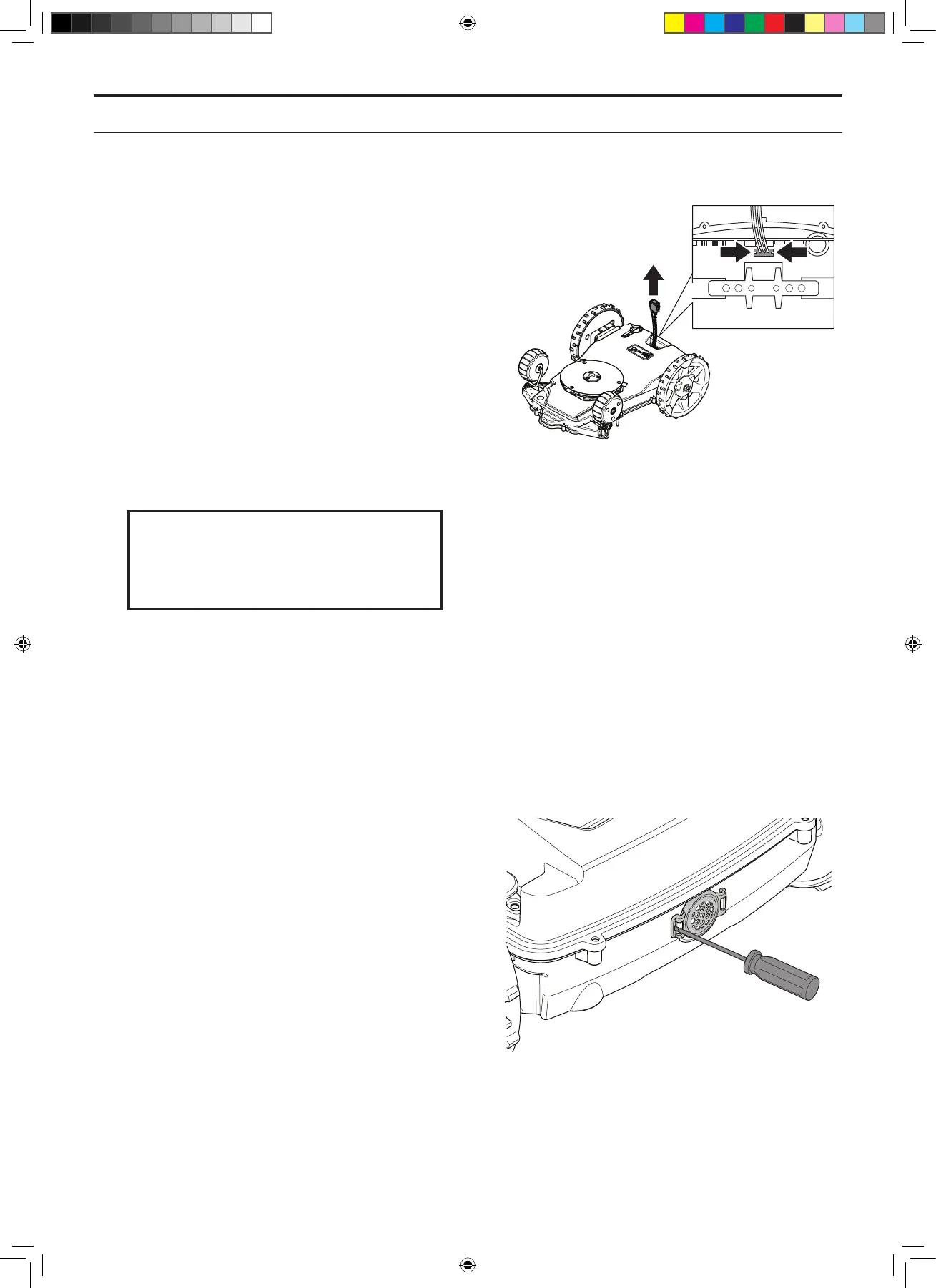

4. Press the snap-on fasteners together on the
main switch and press the main switch out
through the opening in the lower chassis
section.
5. Fit the new main switch together with the
new gasket in the opening and press the
main switch into the opening. Ensure that the
locking barbs are securely attached to make it
completely sealed.
Check that the main switch is installed so that
the digit 1 is positioned to the left and 0 to the
right, viewed from behind.
IMPORTANT INFORMATION
6. Ret the main circuit board and connect all the
connections.
7. Ret the chassis and body.
5.13 Cleaning or replacing the
ventilation lter
1. Disassemble the body. See 5.2.1
Disassembling the body on page 59.
2. Dismantle the lter cover by using a small
screwdriver and carefully press one side of
the cover outwards.
3. Clean the lter carefully with a clean and soft
brush.
4. If the lter is damaged, the lter must be
changed.
5. REPAIR INSTRUCTIONS
