5.18 Replacing the front collision
column / lift sensor
1. Disassemble the body. See 5.2.1
Disassembling the body on page 59.
2. Disassemble the chassis. See 5.2.2
Disassembling the chassis on page 59.

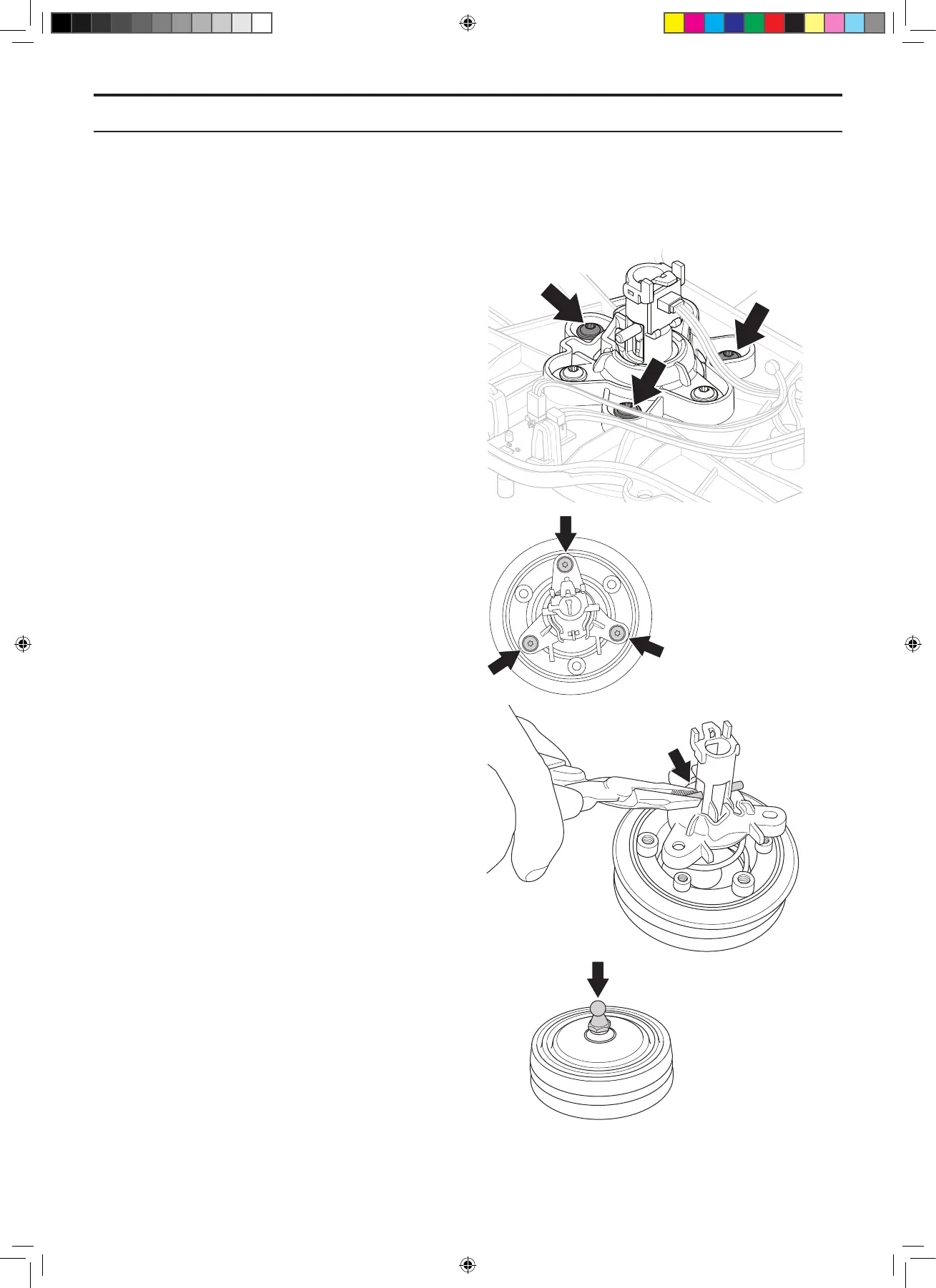

3. Unscrew the three screws (Torx 20) securing
the front collision brackets to the chassis.
4. Loosen the three screws securing the bracket
to the collision column.
5. Depending on which part of the collision
column bracket is to be replaced, a varying
amount of disassembly is required.
By pulling out the split pin using a pliers, the
collision column can be split to give access
to the spring.
To replace the rubber diaphragm or the
inner column the snap-on fastener must
be unscrewed.
5. REPAIR INSTRUCTIONS
