5.5 Replacing the charging strips
When the mower’s battery does not recharge this
may be due to worn charging strips in the mower.
The charging strips should be replaced when
blackened or if there is oxide. Also check the contact
strips in the charging station. See 5.21 Replacing the
contact strips, charging station on page 76.

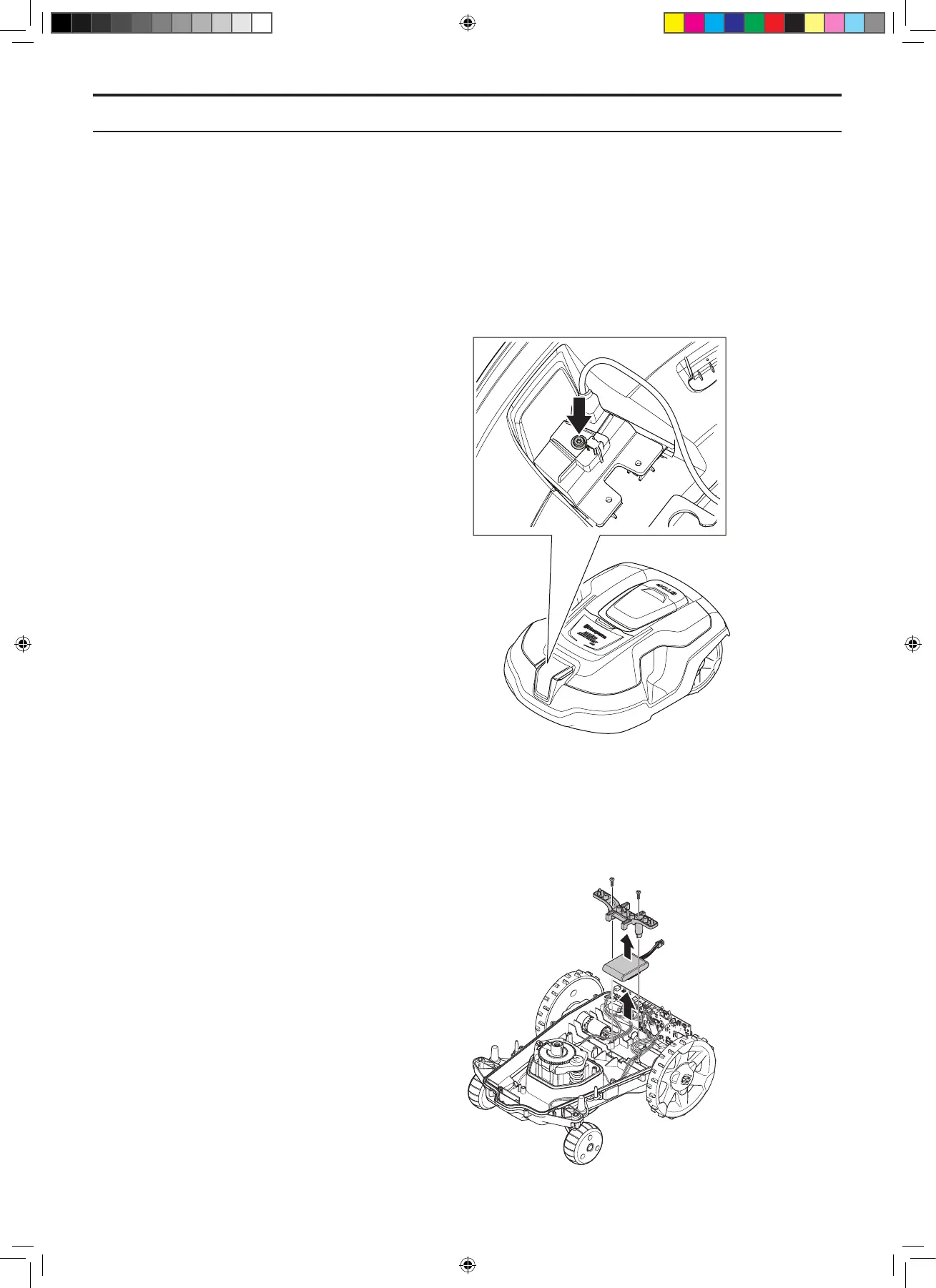

1. Disassemble the body. See 5.2.1
Disassembling the body on page 59.
2. Unscrew the screw (Torx 20) that secure
the charging strip holder and the magnet
holder for the front collision sensor magnet
underneath the body.
3. Disassemble the holder.
4. Disassemble the charging cables and the
charging strips. Note! Make a note of the
position of the brown and the blue cables
so that these are retted correctly later on.
5. Always replace both charging strips at
the same time. If the connections on the
charging
cable are oxidised they should also
be replaced.
6. Fit the charging strips and the charging
cable.
7. Fit the holders and then the body.
5.6 Replacing the battery on
Husqvarna Automower® 310/315
1. Disassemble the body. See
5.2.1
Disassembling the body on page 59.
2. Disassemble the chassis. See 5.2.2
Disassembling the chassis on page 59.
3. Release the cables from the cable ties on
the battery holder.
4. Loosen the two screws (Torx 20) holding the
battery cover in place.
5. Disconnect the battery connection from the
main circuit board.
6. Open the battery cover and remove the
battery.
7. Fit a new original battery from Husqvarna
and connect it to the main circuit board.
8. Assemble the mower in the reverse order
for disassembly.
