5.22 Assembling the sealing strip
Alternative 1 - Clockwise

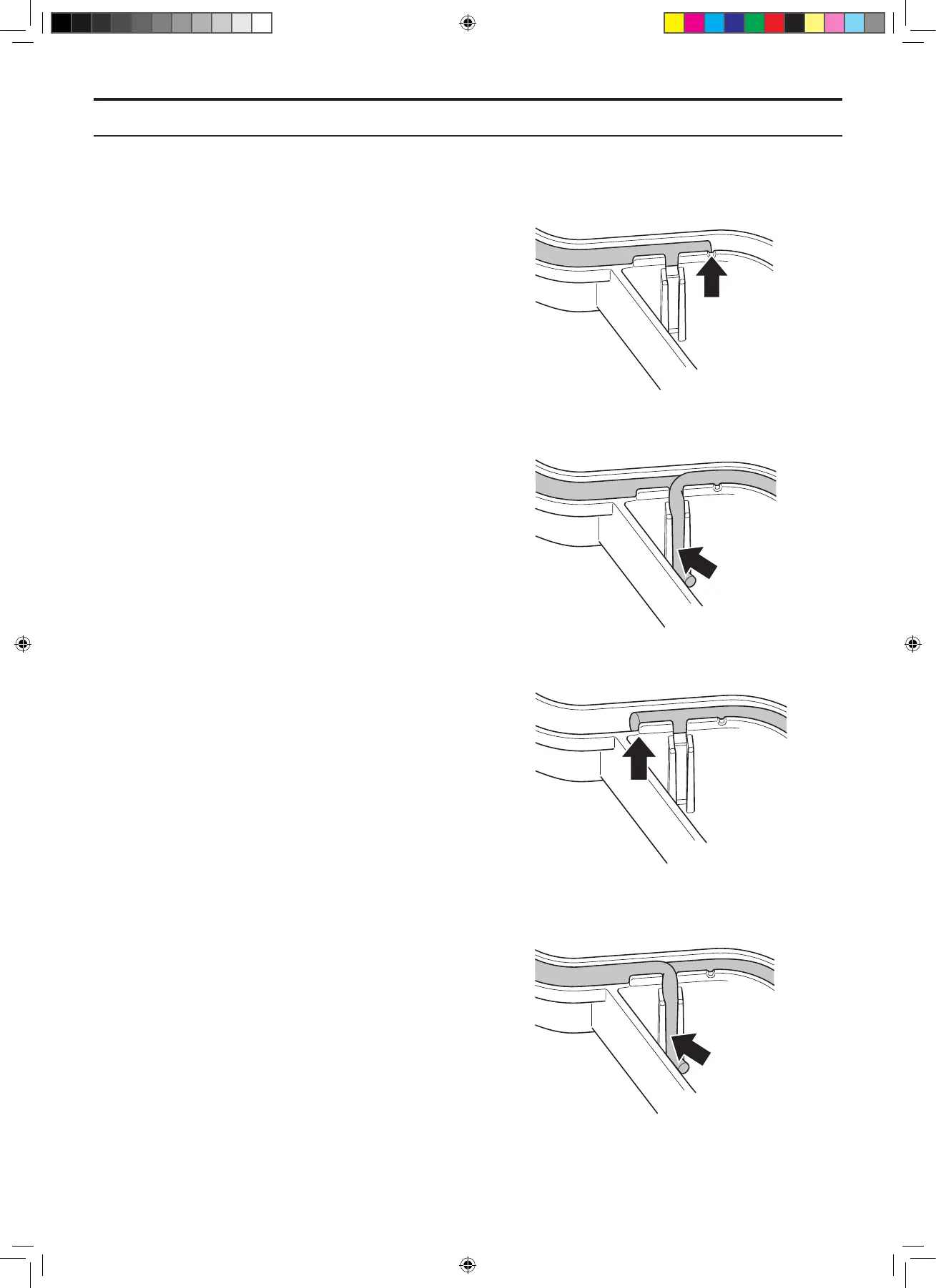

Start by laying one end of the sealing strip in line with the
marking on the chassis.
Continue laying the sealing strip clockwise around the
chassis half.
Lay the other end of the sealing strip above the rst end
and then out of the channel. Fasten with retainer on the
bottom.
Alternative 2 - Counter-clockwise
Start by laying one end of the sealing strip in line with the
marking on the chassis.
Continue laying the sealing strip counter-clockwise around
the chassis half.
Lay the other end of the sealing strip above the rst end
and then out of the channel. Fasten with retainer on the
bottom.
The sealing strip for the cutting disc housing must be
replaced using the same technique (either alt 1 or alt 2).
Note! One end of the sealing strip must lie outside
the channel on the 310/315 and GARDENA R100Li,
R100LiC,R130Li, R130LiC, R160Li, unlike other models
where both ends must lie outside the channel.
