HySecurity UL 325 - Continued Site Assessment for Entrapment; Slide Gate Secure Side Scenario (Continued); Swing Gate Secure Side Scenario

Check gap & protect
potential draw-in zones
Edge Open
Eye Close
SECURE
PUBLIC
Eye Open
NOTE: Any gap larger than 2¼" (57 mm) between gate and
xed objects must be protected. Install edge sensors where
gap between post and gate creates a draw-in zone.

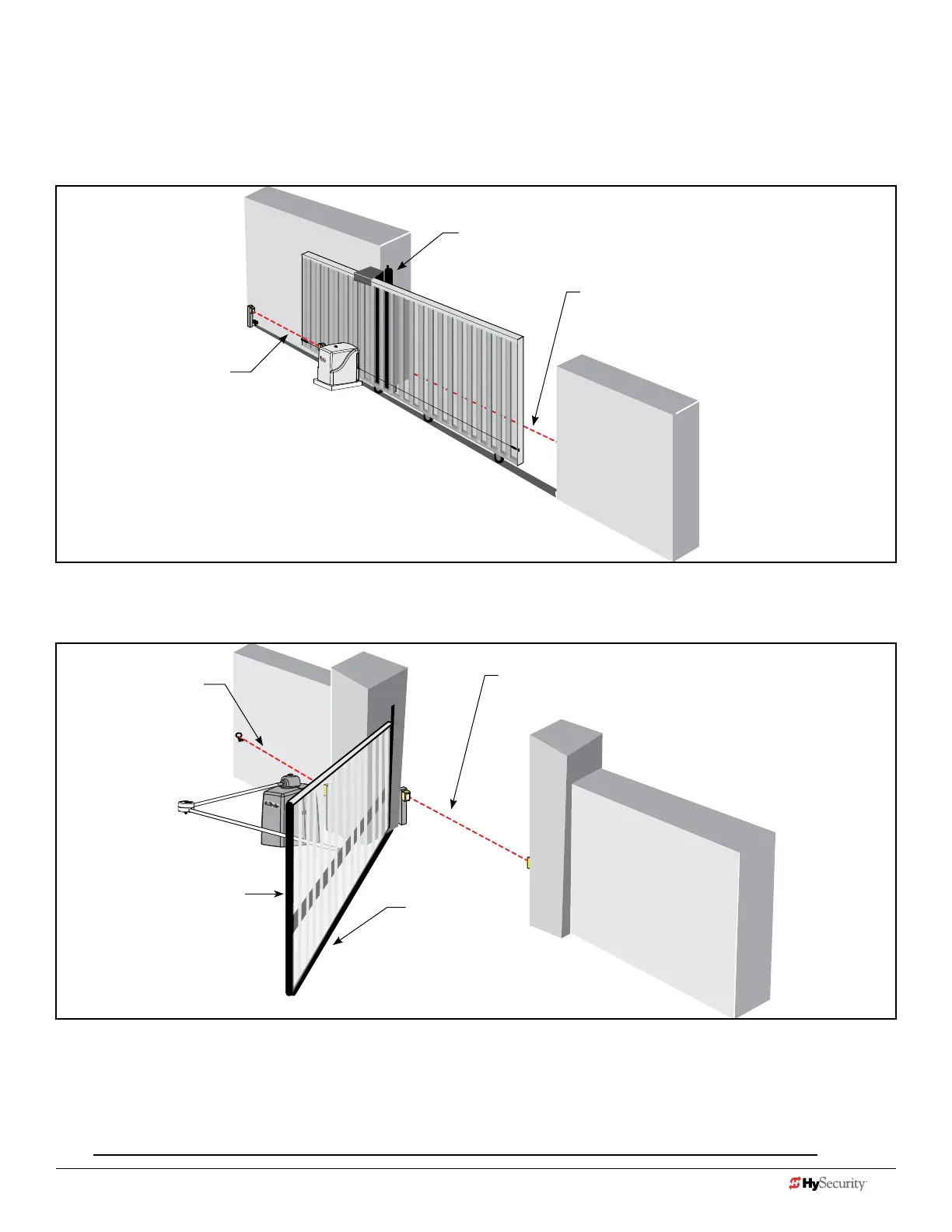

Slide Gate: Monitored Entrapment Site Scenario (Viewing from SECURE side)
Swing Gate: Monitored Entrapment Site Scenario (Viewing from SECURE side)
NOTICE: UL 325 Standard of Safety provides the MINIMUM safety standards. Site, gate hardware usage, and
other conditions may dictate the use of additional safety designs/components. It is up to the gate system
designer and installer to assess appropriate safety design and components above and beyond minimum UL 325
and ASTM F2200 standards. Always check your local area codes and comply with all regulations.
Eye Close
SECURE
PUBLIC
Retro-reective
photo eye shown
Eye Open
Edge Both
Edge Both
Wrap around edge
sensor example
SIte aSSeSSment & Gate deSIGn for monItored entrapment
continued...
