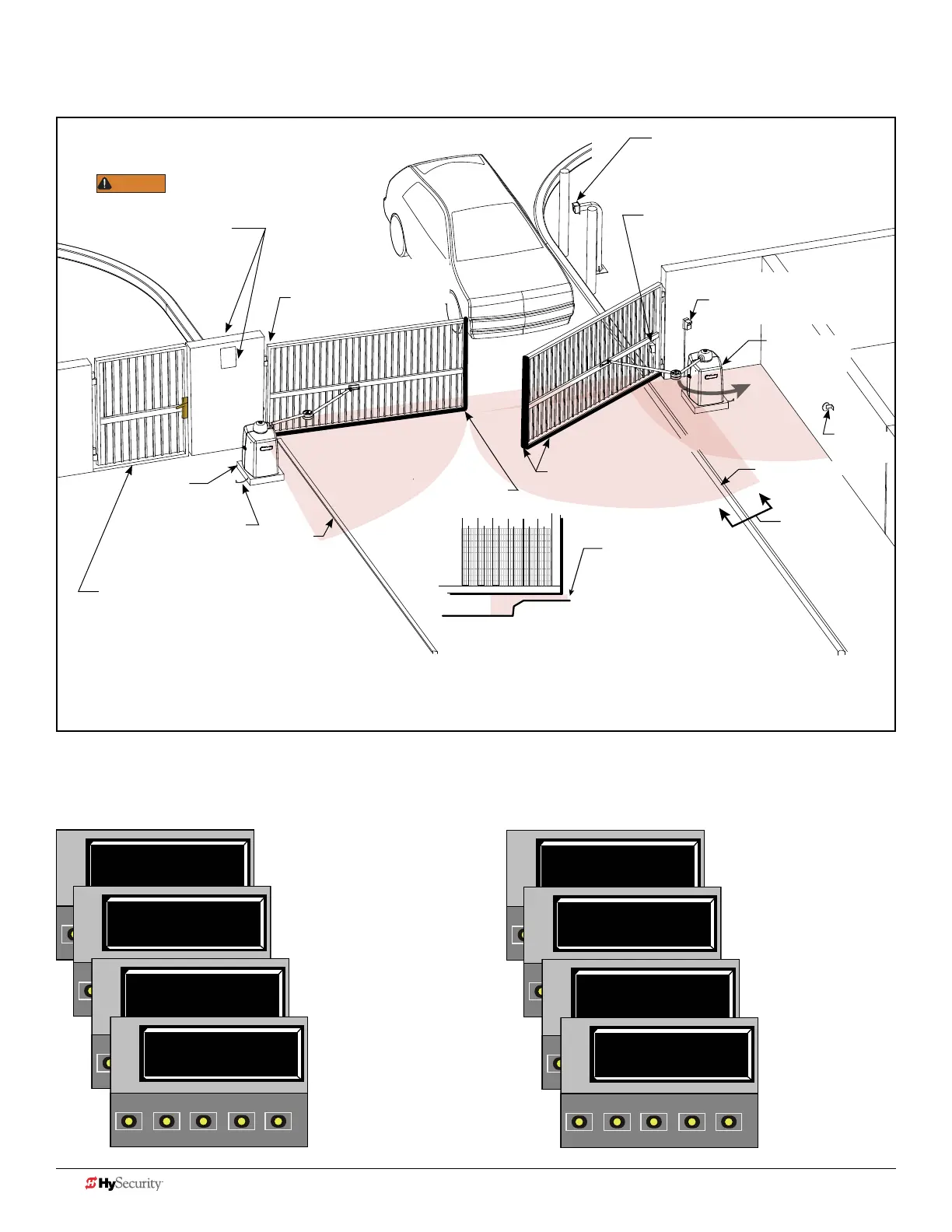

dIaGram 6: SwInGSmart dc SIte oVerVIew (duaL Gate)

ZONE

ENTRAPMENT

View A

Cross Section

ENTRAPMENT

ZONE

NOTE: If the bottom edge of a swing gate is greater than 6 inches (152 mm) above the ground at any point in its arc of travel,

one or more contact sensors shall be located on the bottom edge. In this gate site scenario, two wraparound edge sensors are

used on both gates which requires 2 inputs and 2 Installer Menu settings. See displays below for Gate operator 1 and 2.

Gate

Operator 1

Gate

Operator 2

Gate Operator 1

Set SENSOR 1 input to #2

Gate Operator 2

Set SENSOR 3 input to

#4 (EYE OPEN)

Public Side

WARNING

Be sure to place the

WARNING signs on both

sides of the access point in clear view of vehicles.

For your records, take a photograph of the

completed installation site.

Photo eye Close

(Receiver)

Earth ground

Wrap around

Edge sensor (2x)

Wrap around

Edge sensor (2x)

Pedestrian gate located

near the swing gate.

Make sure a separate walk- through entrance is

available and its pedestrian path is clearly designated.

Curb


eye

Secure Side

Photo eye

(transmitter)

Mount access control

devices at least 6 ft

(1.8 m) beyond the gate.

Reector

for Photo

Eye

After wiring your external entrapment protection sensors to the Controller’s sensor inputs, access the Installer Menu, Set

sensors S1, S2, and S3. (Refer to Table 5: Installer Menu Settings for SENSOR Inputs on page 10.)

GATE OPERATOR 1: SwingSmart DC or DCS GATE OPERATOR 2: SwingSmart DC or DCS

S1 0

SENSOR #1 TYPE

OPEN

STOP

RESET

SELECT

S1 2 (EYE CLOSE)

SENSOR #1 TYPE

OPEN

STOP

RESET

SELECT

S2 6 (EDGE BOTH)

SENSOR #2 TYPE

OPEN

STOP

RESET

SELECT

S3 6 (EDGE BOTH)

SENSOR #3 TYPE

OPEN

STOP

RESET

SELECT

Initial Sensor setting = 0

Set Sensor 1 = #2

Photo EYE CLOSE

Set Sensor 2 = #6

EDGE BOTH

Set Sensor 3 = #6

EDGE BOTH

S1 0

SENSOR #1 TYPE

OPEN

STOP

RESET

SELECT

S1 6 (EDGE BOTH)

SENSOR #1 TYPE

OPEN

STOP

RESET

SELECT

S2 6 (EDGE BOTH)

SENSOR #2 TYPE

OPEN

STOP

RESET

SELECT

S3 4 (EYE OPEN)

SENSOR #3 TYPE

OPEN

STOP

RESET

SELECT

Initial Sensor setting = 0

Set Sensor 1 = #6

EDGE BOTH

Set Sensor 2 = #6

EDGE BOTH

Set Sensor 3 = #4

EYE OPEN
