Smart dc: pHoto eye tHru beam (emX Irb mon)
1. Turn OFF AC power.

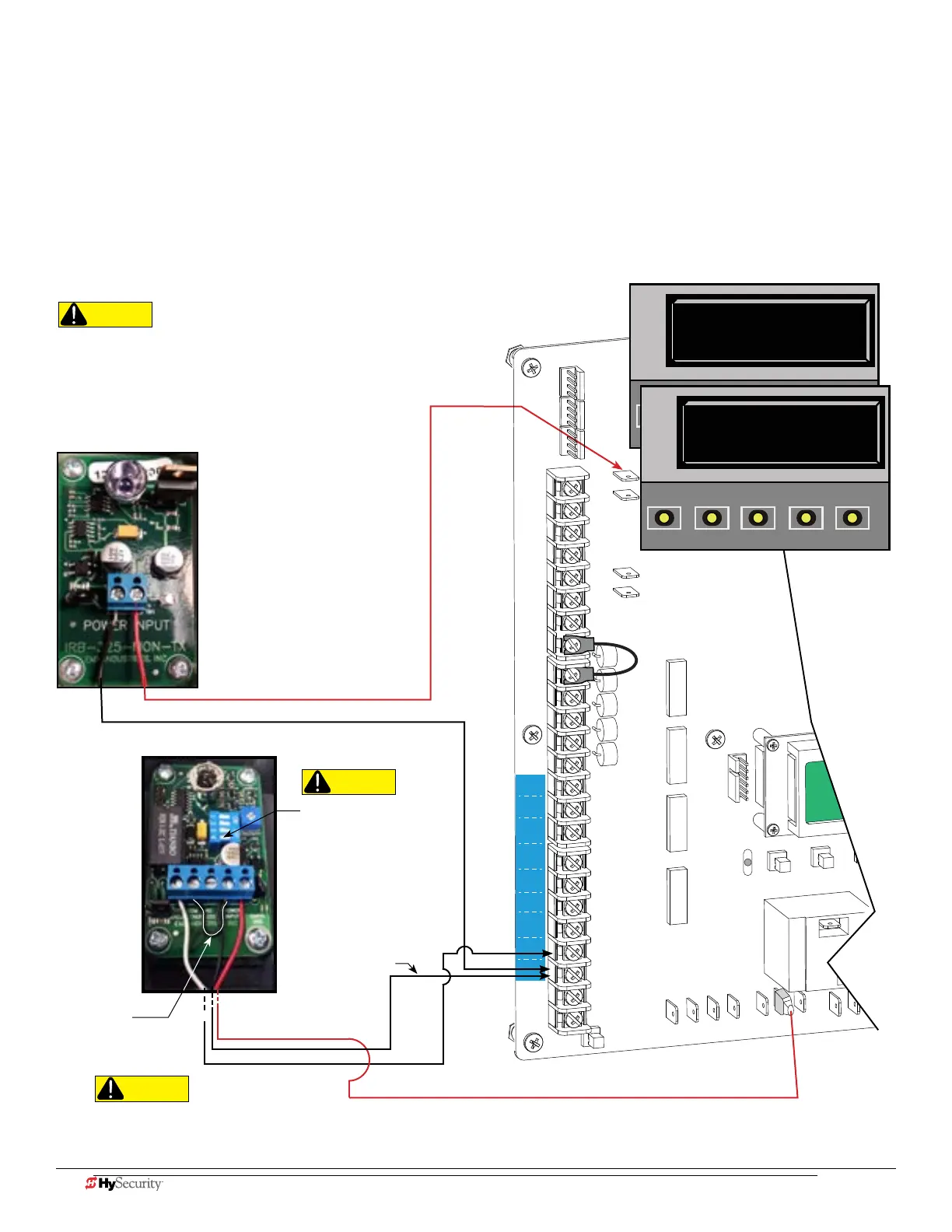

2. Connect photo eye wiring.
NOTE: On the Receiver, run a jumper between photo eye -24V (POWER INPUT) and COM terminals to reduce
the number of wires connect to Smart DC terminals.
3. Turn ON power.
NOTE: Make sure both AC & DC switches are ON and the red battery wire is plugged in.
4. Access the Installer Menu. Congure SENSOR setting accordingly.
For example, Eye Close, Eye Open, or Eye Both.
EMX IRB MON Photo Eye Receiver
EMX IRB MON Photo Eye
Transmitter
+24V
+24V
NC Relay
COMMON / NEG.
to SENSOR COM
TIP: Jumper
POWER COM to
RELAY COM
COMMON / NEG. to SENSOR COM
Set DIP Switches
1 = OFF
2 = OFF
3 = OFF
4 = ON
CAUTION
DIP switches must be set as shown otherwise the photo eye will not operate correctly. If you receive an Alert,
"!ACTION BLOCKED" "Photo Eye Open" PEO or "Photo Eye Close" PEC, take steps to align the photo eye.
Refer to Photo Eye Alignment on page 12.
COM
COM
COM
COM
COM
COM
COM
COM
STOP
OPEN
RADIO
CLOSE
OPEN
OPEN
PARTIAL
OPEN
EYE
EXIT
LOOP
EXIT
LOOP
LOOP
LOOP
EDGE
EYE
COM
+ 24 V
EMERG
OPEN
SHOW
LEDs
S
1
+
24V
OP
EN
C
O
M
D
U
AL
G
A
T
E
C
O
M
A
B
U
S
E
R2
C
O
M
N
O
D
C
USER RELAY 1
Electro-mechanical
24VDC
24VDC
12VDC
12VDC
SENSOR 2
SENSOR 3
SENSOR 1
SENSOR
COM
EXIT
LOOP
BLOCK
EXIT
CENTER
LOOP
IN OBS
LOOP
OUT OBS
LOOP
11
10
9
8
7
6
5
4
3
2
1
S1 0
SENSOR #1 TYPE
OPEN
CLOSE
STOP
MENU
RESET
PREV
NEXT
SELECT
S1 2 (EYE CLOSE)
SENSOR #1 TYPE
OPEN
CLOSE
STOP
MENU
RESET
PREV
NEXT
SELECT
CAUTION
All external entrapment protection sensors must be NC sensor
outputs and wired to the SENSOR COM terminal for monitoring
and powering purposes. The sensor becomes actively powered
when the gate operator receives a run command.
Installer Menu Settings
CAUTION
38 D0726 Rev. J UL 325 - 2016 HySecurity Monitored Sensors © 2016 www.hysecurity.com
